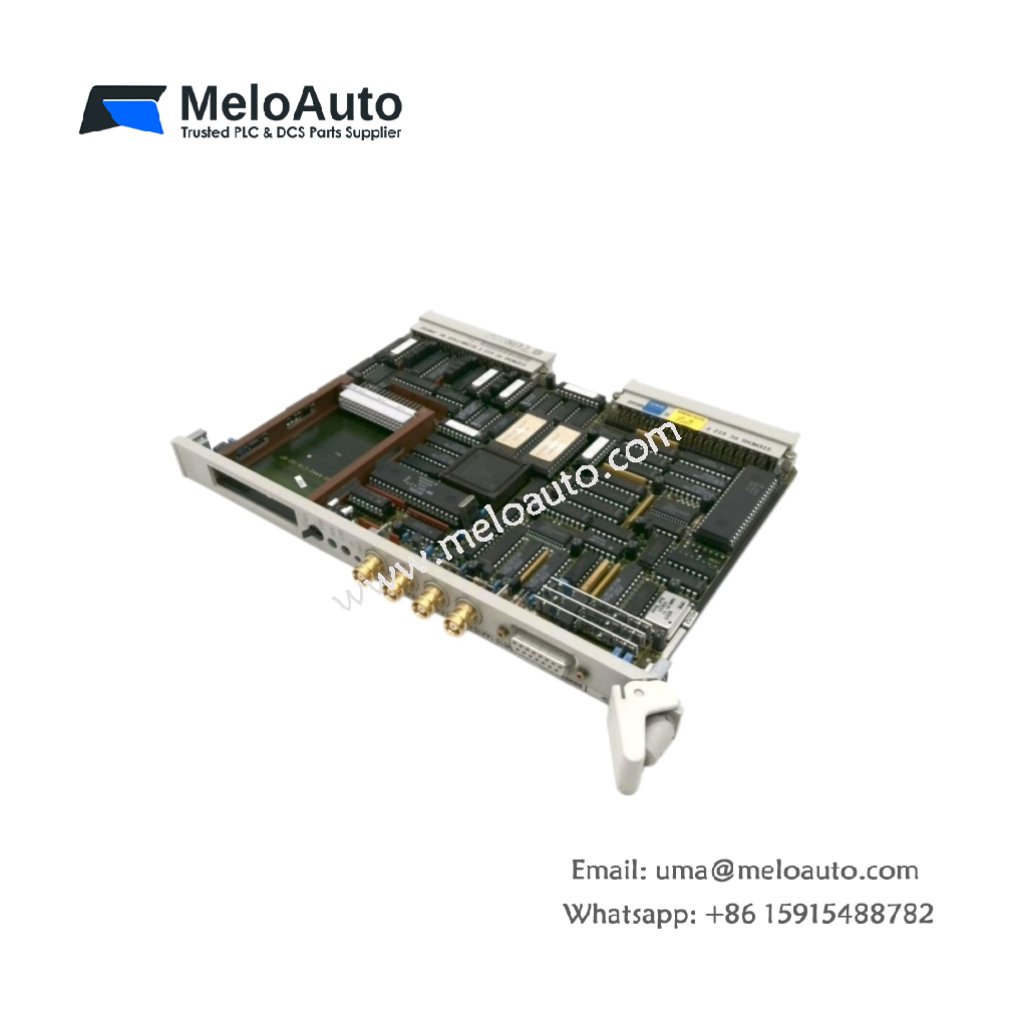

Siemens 6AV4010-1AA10-0AA0 Communication Processor

Technical Specifications and Communication Capabilities

The Siemens 6AV4010-1AA10-0AA0 communication processor belongs to the SIMATIC S5 product family. This module facilitates reliable data exchange between the S5 PLC and external devices. It supports asynchronous serial communication for flexible integration with various peripherals. The module features a RS-232C interface for straightforward point-to-point connections. Data transmission occurs in either full or half-duplex mode, adapting to different application needs . The module processes asynchronous data of any structure . Its compact dimensions suit standard S5 rack installations.

Functional Capabilities

The 6AV4010-1AA10-0AA0 module actively manages communication between the PLC and connected peripheral devices. It handles data transfer to printers, programming devices, and other automation equipment. The module’s asynchronous operation enables reliable serial communication for various industrial protocols. Consequently, this module offloads communication tasks from the central CPU. Its robust design ensures stable data transmission in demanding industrial environments.

Application Scenarios

This communication processor suits S5-based systems requiring serial connectivity to external devices. Typical applications include connecting operator panels, printers, and host computers. The Siemens 6AV4010-1AA10-0AA0 serves as a practical component for maintaining legacy S5 automation infrastructure. Many facilities continue to rely on this module for their existing serial communication setups. For system integrators, this module offers a solution for sustaining connectivity in S5-based systems.
