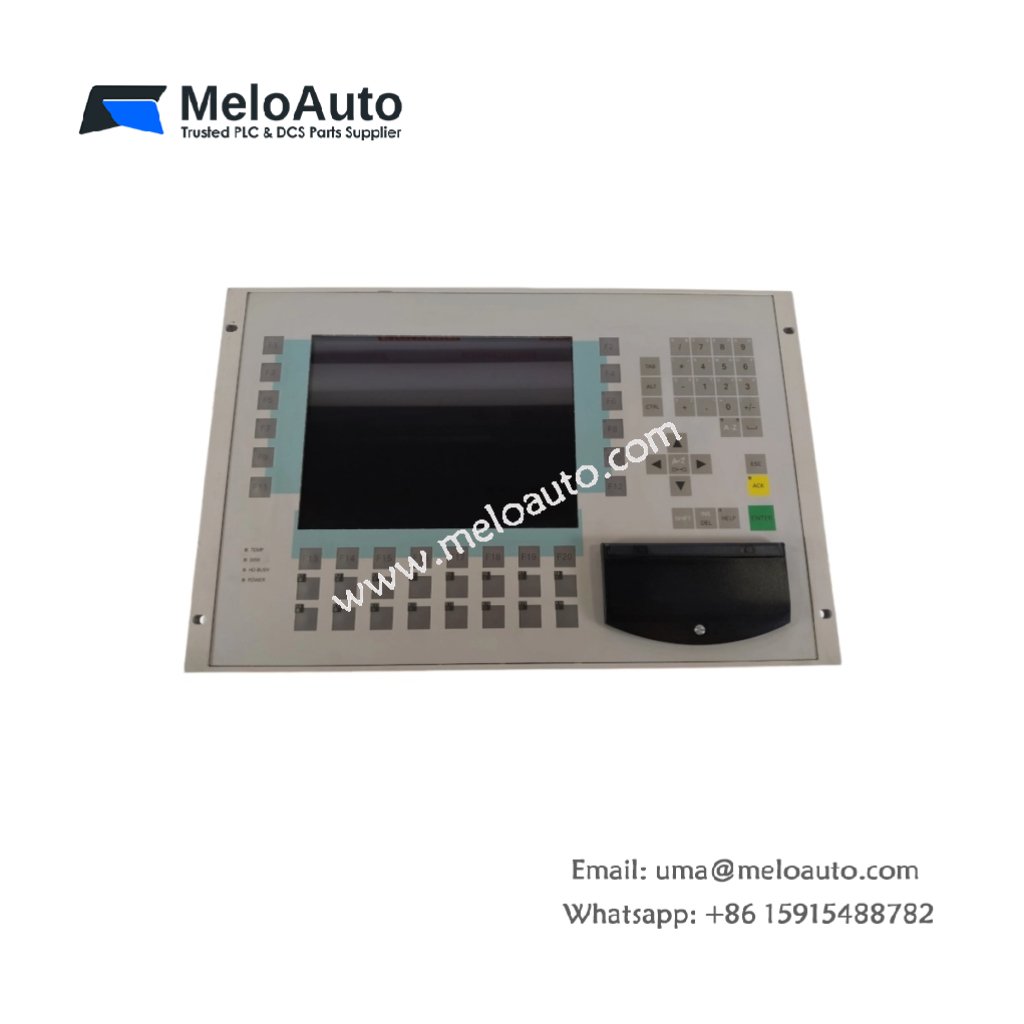

Siemens 6AV3637-1LL00-0AX1 Operator Panel

This panel provides advanced graphical interface for machine monitoring and data entry. The Siemens 6AV3637-1LL00-0AX1 displays process parameters and accepts operator commands via touch screen. It measures 310 mm in width and 215 mm in height. This unit weighs approximately 2.1 kg for panel mounting.

Technical Specifications Table

Parameter	Value
Product Model	Siemens 6AV3637-1LL00-0AX1
Category	Operator Panel / HMI
Display Type	Monochrome LCD with CCFL backlight
Display Size	5.7 inches diagonal
Display Resolution	240 x 64 pixels
Touch Technology	Resistive analog touch screen
Communication Ports	1 x RS232, 1 x RS422/485, 1 x MPI
Dimensions (W x H x D)	310 mm x 215 mm x 65 mm
Weight	2.1 kg
Internal Components	1 x 16-bit CPU, 2 x flash memory chips
User Memory	512 KB flash for configuration data
Backup Memory	8 KB SRAM with super capacitor
Energy Storage	0.22 F super capacitor (data retention: 7 days)
Operating Voltage	24 V DC external supply
Power Consumption	15 W maximum

Internal Architecture and Data Protection

This operator panel uses a 16-bit processor for screen rendering and touch processing. A 5.7-inch monochrome LCD shows 8 lines of text with 40 characters each. The Siemens 6AV3637-1LL00-0AX1 combines physical keys with a resistive touch screen overlay. Flash memory stores your HMI configuration without needing battery backup. A super capacitor maintains 8 KB of SRAM for recipe data during power loss. This capacitor retains data for approximately seven days without external power.

Connection and Installation Guide

First, mount the panel into a 310 mm x 215 mm cutout on your cabinet door. Next, connect a 24 V DC power supply to the rear terminal block. Then, link the RS232 port to your PLC or programming PC. Use ProTool/Pro software to create your operator screens and assign touch functions. The panel communicates with SIMATIC S5, S7, and third-party PLCs via RS422/485. You can upload configurations through the MPI port at 187.5 kbps. The resistive touch screen responds to gloved fingers for industrial safety.
