Siemens 6AV3607-1JC20-0AX1 Operator Interface

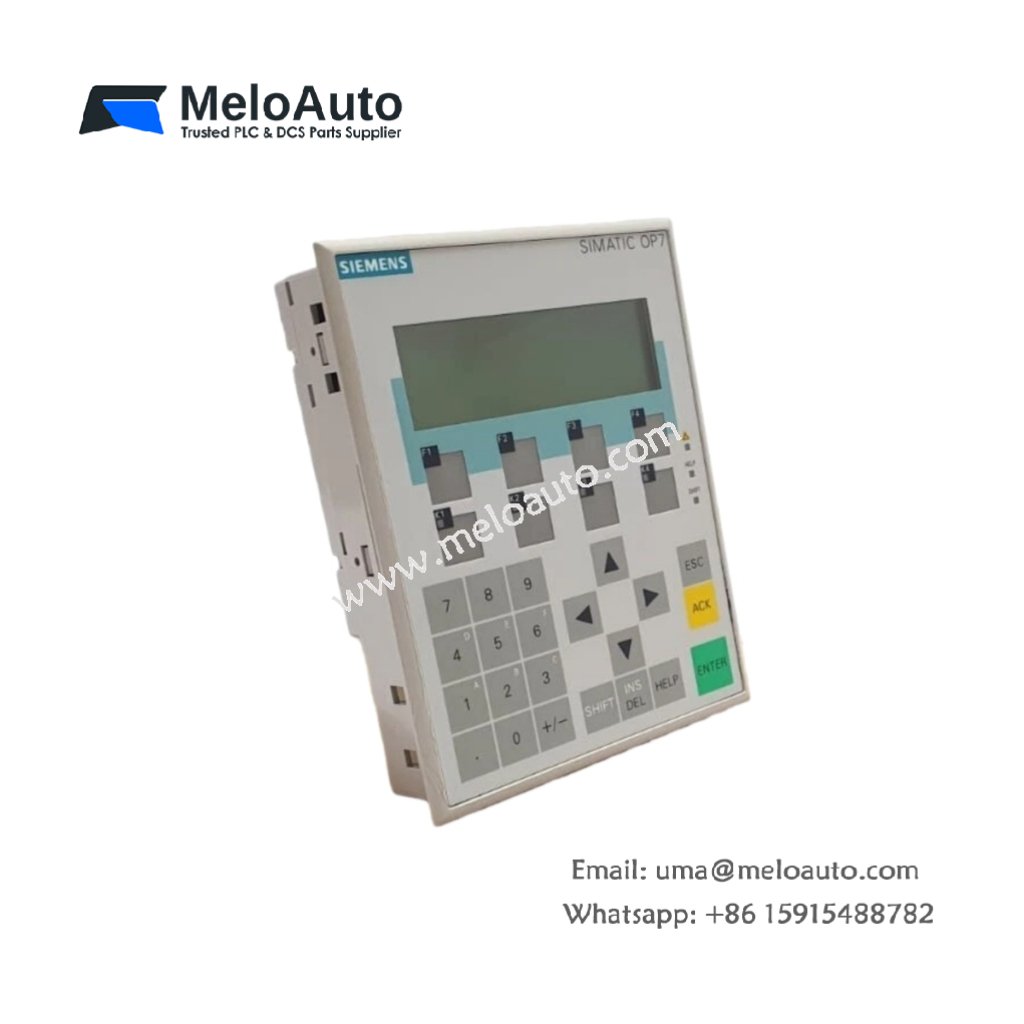

The Siemens 6AV3607-1JC20-0AX1 is a high-performance operator interface designed for the SIMATIC S7 series. This model offers seamless communication through PROFIBUS-DP, providing real-time data access and control in industrial automation systems. With its user-friendly design and powerful features, this interface ensures optimized performance in a wide range of applications.

Key Features

Manufacturer: Siemens
Model: 6AV3607-1JC20-0AX1
Product Type: Operator Interface
Series: SIMATIC S7
Interface: PROFIBUS-DP
Display Type: High-contrast LCD with LED back-lighting
Display Lines/Characters: 4 lines x 20 characters
Power Supply: 24 VDC
Current Consumption: 0.24 A
Mounting Type: Panel-mounted
Dimensions (W x H x D): 200 × 140 × 50 mm
Weight: 0.5 kg

Technical Specifications

Parameter	Details
Model	6AV3607-1JC20-0AX1
Manufacturer	Siemens
Product Type	Operator Interface
Series	SIMATIC S7
Interface	PROFIBUS-DP
Display Type	High-contrast LCD
Display Lines/Characters	4 lines x 20 characters
Power Supply	24 VDC
Current Consumption	0.24 A
Mounting Type	Panel-mounted
Dimensions (W × H × D)	200 × 140 × 50 mm
Weight	0.5 kg

Description

The Siemens 6AV3607-1JC20-0AX1 operator interface is an essential component for SIMATIC S7 systems, offering seamless integration and intuitive operation for industrial automation. Featuring a high-contrast LCD display with LED back-lighting, this interface ensures clear visibility even in low-light environments, making it ideal for demanding industrial settings.

With a display capacity of 4 lines x 20 characters, the 6AV3607-1JC20-0AX1 allows for easy monitoring and control of complex systems. It operates on a 24 VDC power supply and consumes a 0.24 A current, ensuring efficient energy use while maintaining robust functionality. The interface is designed to communicate via PROFIBUS-DP, enabling fast and reliable data exchange between devices.

The unit’s panel-mountable design makes installation straightforward in various control panels. Its compact size (200 × 140 × 50 mm) and lightweight build (0.5 kg) make it an ideal choice for tight spaces while ensuring durability and easy maintenance.

Why Choose the Siemens 6AV3607-1JC20-0AX1?

Clear Display: High-contrast LCD with LED back-lighting ensures visibility in all lighting conditions.
Efficient Communication: PROFIBUS-DP interface enables seamless device communication.
Compact and Durable: Lightweight design for easy integration into industrial environments.
Low Power Consumption: Consumes only 0.24 A at 24 VDC, providing energy efficiency.

Applications

The Siemens 6AV3607-1JC20-0AX1 is ideal for applications such as:

Industrial Automation: Used for controlling and monitoring processes in real-time.
Control Panels: Perfect for integrating into SIMATIC S7 control systems.
Data Display: Used to display system statuses, alarms, and performance metrics.
