Siemens 6AV1142-0DA10 | TD1 Text Display for SIMATIC S5 PLC

Compact Two-Line Display for SIMATIC S5 Systems

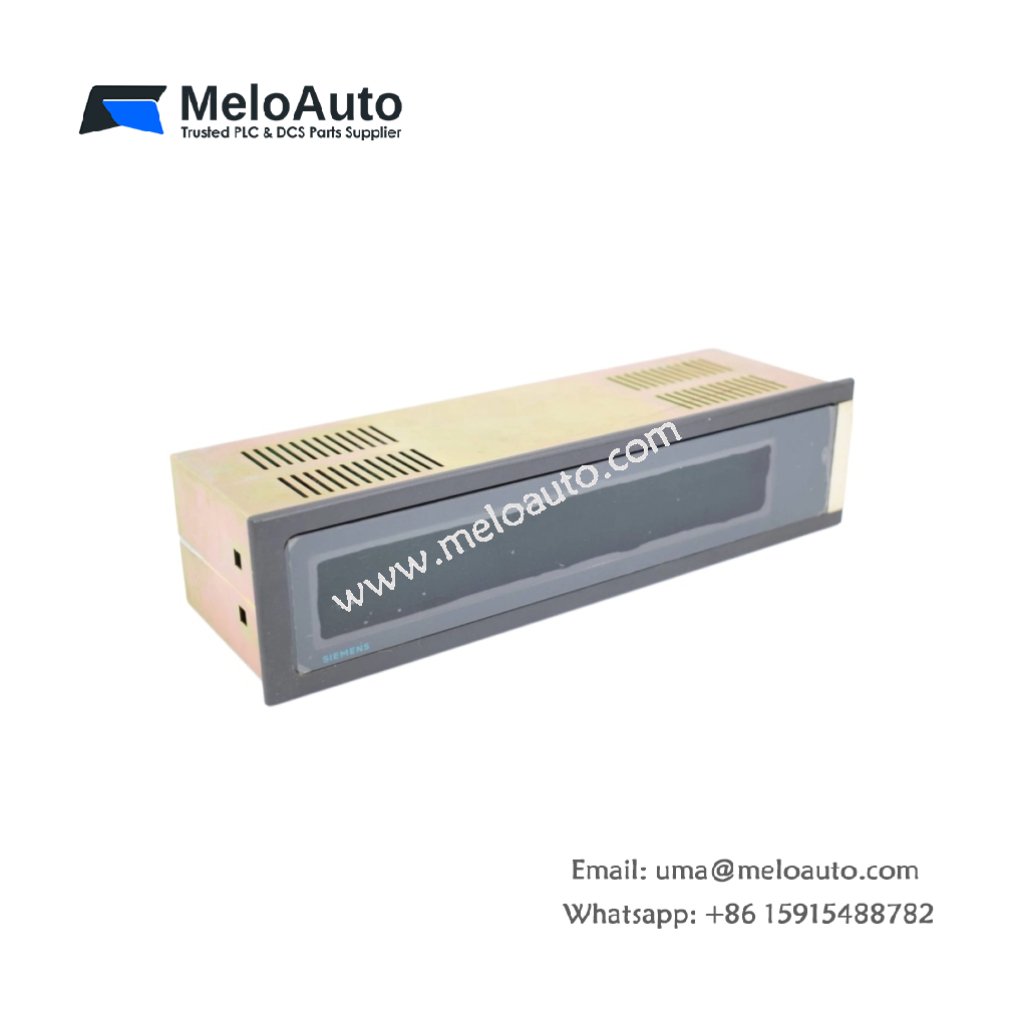

The 6AV1142-0DA10 text display, also known as the TD1-240/5, provides a compact two-line visual interface for SIMATIC S5 programmable controllers. This module delivers clear text-based information for monitoring and controlling industrial processes. It offers a straightforward solution for operators needing essential status updates and alarm messages. Consequently, this display suits applications requiring simple, cost-effective operator interaction.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Family	SIMATIC S5 / TD1
Model	6AV1142-0DA10
Product Type	Text Display (TD1-240/5)
Display Lines	2 lines
Character Height	5 mm
Memory Type	No integrated text memory
Compatibility	SIMATIC S5 systems
Connection	40-pin interface
Product Status	Legacy / Discontinued

Display Features and Capabilities

The 6AV1142-0DA10 presents information across two lines with a character height of 5 mm for easy reading. This display does not include integrated text memory, requiring the connected controller to supply all display data. Consequently, the module relies entirely on the PLC for message content. This design reduces the display’s complexity and cost.

System Integration and Application

This TD1 text display connects to SIMATIC S5 controllers via a 40-pin interface. Users can mount the module in control cabinets or operator stations. The 6AV1142-0DA10 provides basic operator feedback for monitoring machine status and process variables. It serves as a cost-effective alternative to full-featured HMI panels for simple applications.

Physical Characteristics

The 6AV1142-0DA10 features a compact, lightweight design suitable for space-constrained installations. Its two-line display provides essential information without occupying valuable panel space. The module’s robust construction withstands typical industrial environments.
