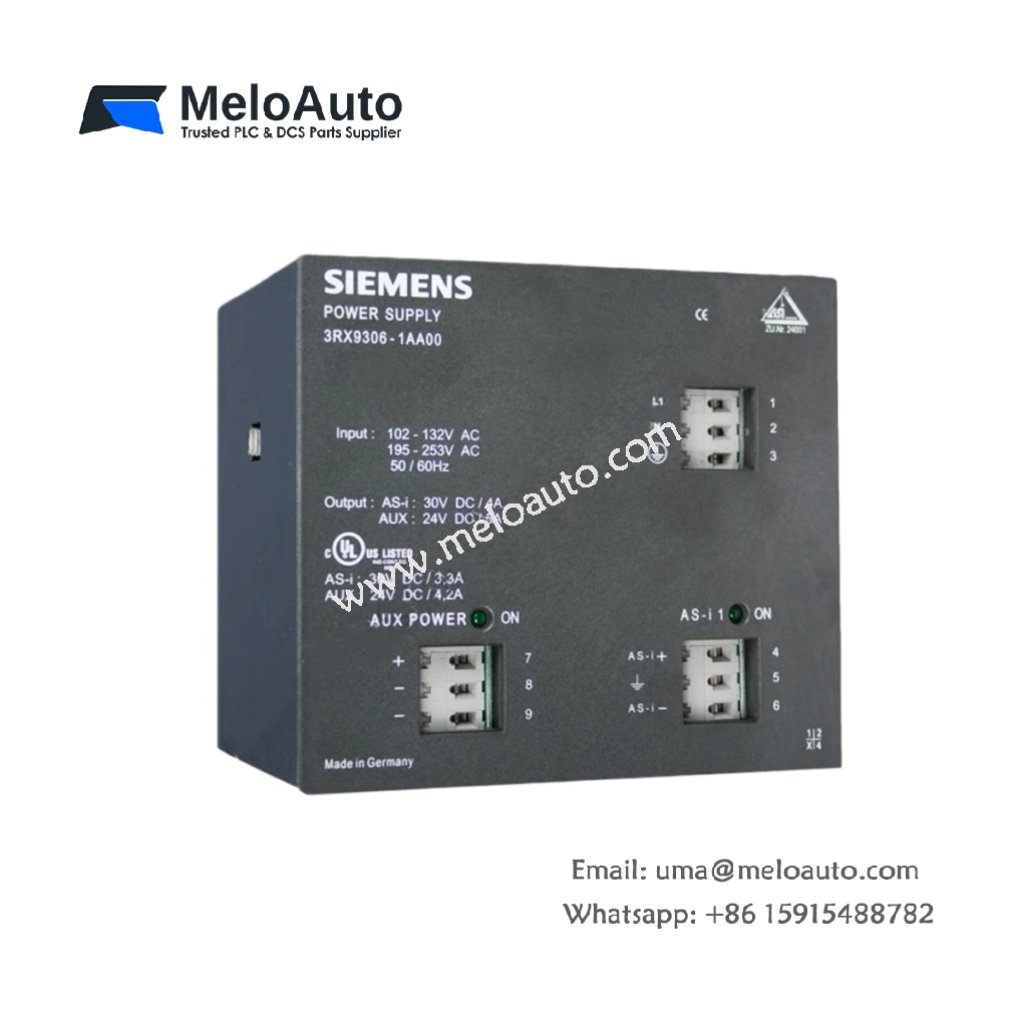

Siemens 3RX9306-1AA00 Combi-Power Supply

The Siemens 3RX9306-1AA00 Combi-Power Supply provides reliable power solutions for industrial automation systems. Designed for integration with AS-Interface networks, this versatile power supply ensures efficient power management while offering both 24 VDC and 30 VDC outputs. It is ideal for applications requiring high reliability and flexibility in power distribution. With built-in data decoupling, it ensures the smooth operation of devices connected to the system, making it a critical component in industrial automation setups.

Key Features of the Siemens 3RX9306-1AA00

Dual Output Voltage: Provides 30 VDC (4 A) and 24 VDC (5 A) for versatile power delivery to different industrial components.
Data Decoupling: Integrated data decoupling ensures uninterrupted operation of connected devices, improving system stability.
Reconfigurable Input Voltage: Supports input voltages of 115 VAC or 230 VAC, offering flexibility for different industrial environments.
High Efficiency: With a power supply capable of supporting various AS-Interface networks, the unit operates with high efficiency and minimal energy loss.
IP20 Protection: The unit is rated IP20, ensuring adequate protection for use in industrial environments where dust and moisture may be present.
Compact Design: Features a space-efficient design, perfect for installations where space is a limitation.
Successor Models: Compatible with successor models 3RX9502-0BA00 and 6EP1333-2AA01, which offer similar functionality with added features and slightly adjusted dimensions.

Specifications of the Siemens 3RX9306-1AA00

Parameter	Details
Model	Siemens 3RX9306-1AA00
Type	Combi-Power Supply
Output Voltage 1	30 VDC, 4 A
Output Voltage 2	24 VDC, 5 A
Input Voltage	115 V/230 VAC (Reconnectable)
Protection Rating	IP20
Data Decoupling	Yes, integrated data decoupling
Clocking	Primary clocking (24 VDC)
Dimensions	Width: 70 mm, Depth: 50 mm
Successor Models	3RX9502-0BA00, 6EP1333-2AA01
Weight	0.75 kg (approx.)
Application	AS-Interface networks, Industrial automation

Applications of the Siemens 3RX9306-1AA00

AS-Interface Networks: Perfectly suited for powering AS-Interface devices in industrial automation systems.
Industrial Automation Systems: Used in various industrial automation setups to provide reliable and efficient power to connected devices.
Process Control: Ensures stable power delivery for process control systems, helping to maintain consistent operations.
Machine Automation: Ideal for powering sensors, actuators, and other machine components that require stable 24 VDC or 30 VDC power.
