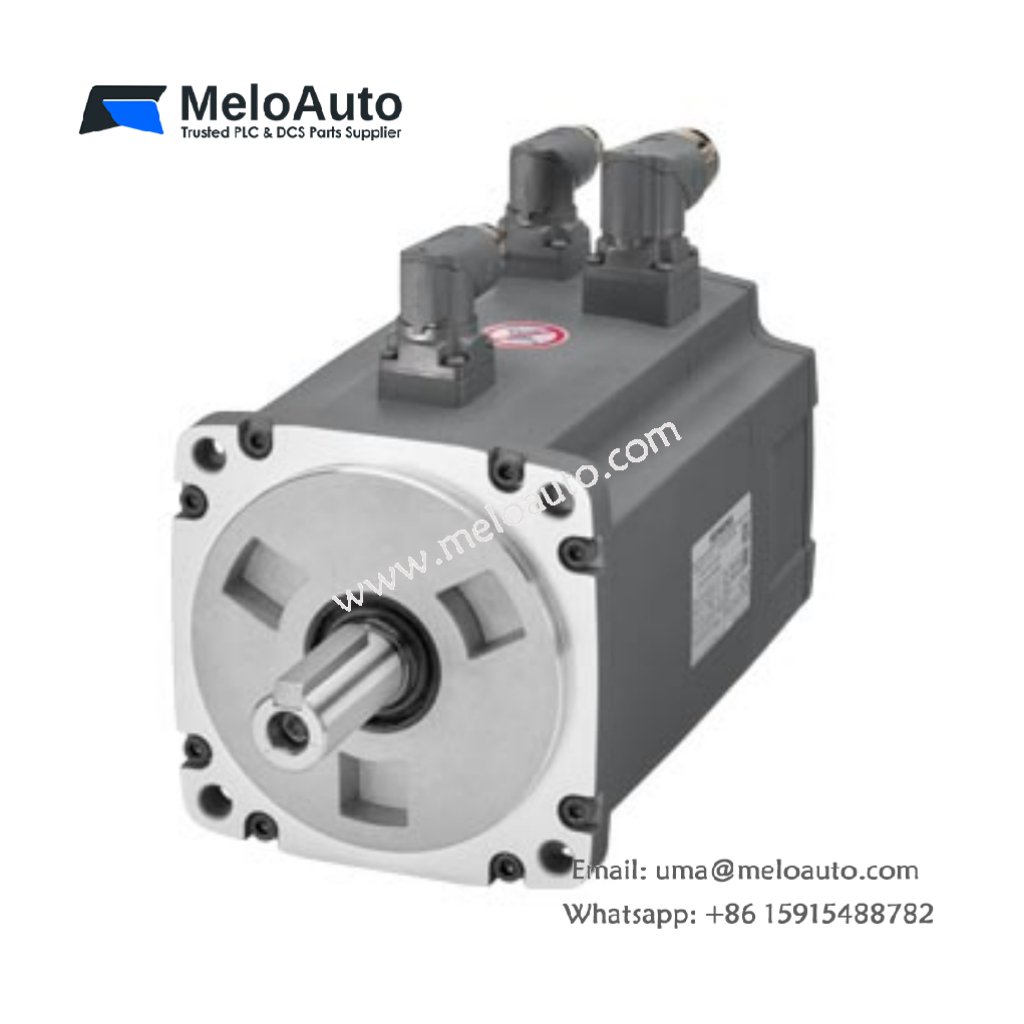

Siemens 1FL6064-1AC61-2LB1 Servo Motor

The Siemens 1FL6064-1AC61-2LB1 from the 1FL6 servomotor series delivers reliable power and precise control for SINAMICS V70 and V90 converters. With a nominal power of 1.5 kW and rated speed of 2000 rpm, this motor ensures stable torque and efficiency across demanding automation applications. The integrated absolute encoder offers 20-bit resolution with 12-bit multi-turn capability, which guarantees precise positioning in motion control systems.

Key Features

Operating voltage: 3AC 400 V for industrial performance
Rated torque: 7.16 Nm with peak torque up to 8 Nm
Shaft height: 65 mm with feather key and angle plug
Equipped with holding brake and IP65 protection with sealing ring
Encoder type: absolute encoder 20-bit / 12-bit multi-turn
Full compatibility with SINAMICS V70 and V90 converters

Technical Specifications

Parameter	Value
Article Number	1FL6064-1AC61-2LB1
MFN	1FL60641AC612LB1
Power Output	1.5 kW
Rated Speed	2000 rpm
Rated Torque	7.16 Nm
Maximum Torque	8 Nm
Shaft Height	65 mm
Encoder Resolution	20-bit absolute / 12-bit multi-turn
Brake	Holding brake included
Protection Class	IP65 with sealing ring
Compatible Converters	SINAMICS V70, V90
Life Cycle Status	Active Product
Net Weight	24.471 lb
Packaging Dimensions (LxWxH)	18.35 x 10.39 x 11.42 in
Export Control Regulations	AL: N / ECCN: N
Standard Delivery Time	5 Days

Origin, Dimensions & Weight

Country of Origin: China
Net Weight: 24.471 lb (11.1 kg)
Package Size: 18.35 x 10.39 x 11.42 inches

Compliance & Standards

The Siemens 1FL6064-1AC61-2LB1 complies with RoHS since 01/01/2018, and it fulfills WEEE (2012/19/EU) take-back obligations. It also meets REACH requirements, ensuring long-term reliability and compliance with environmental directives.
