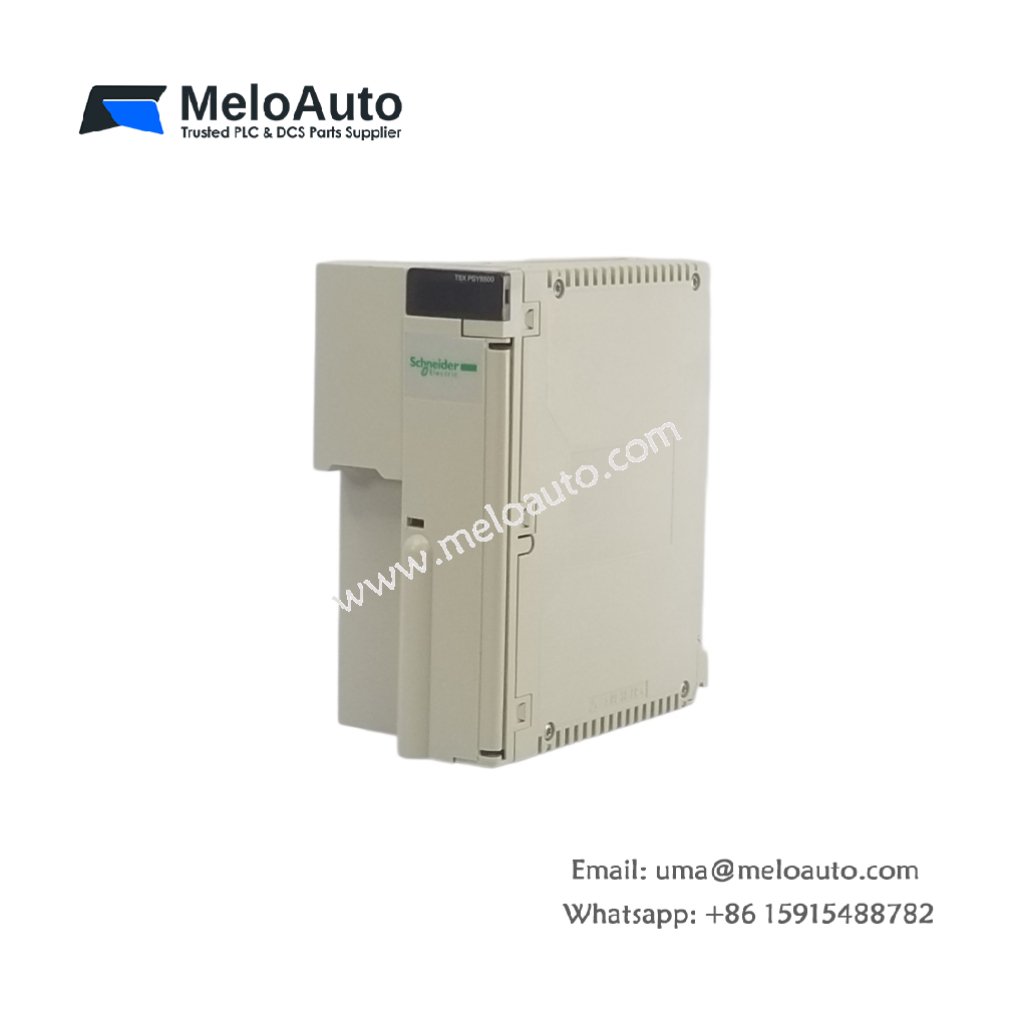

Schneider TSXPSY8500M – Power Supply Module for Reliable and Efficient Power Conversion

The Schneider TSXPSY8500M is a robust power supply module designed for industrial automation systems. It ensures stable and reliable power conversion, making it ideal for use in demanding applications. With high efficiency and built-in protection mechanisms, this power supply module supports continuous operation even in challenging environments.

Key Features and Specifications of the Schneider TSXPSY8500M

• Manufacturer: Schneider Electric
• Model: TSXPSY8500M
• Category: Power Supply Module
• Primary Voltage:
  • 100…120 V AC (85…140 V)
  • 200…240 V AC (170…264 V)
• Network Frequency: 50/60 Hz
• Network Frequency Limits: 47…63 Hz
• Input Current:
  • 1700 mA at 100 V
  • 500 mA at 240 V
• Inrush Current:
  • 30 A at 100 V
  • 60 A at 240 V
• Protection Type:
  • Internal fuse (4 A, 5 x 20 mm, time-delayed primary circuit)
  • Overload protection (secondary circuit)
  • Overvoltage protection (secondary circuit)
  • Short-circuit protection (secondary circuit)
• Total Useful Secondary Power:
  • 100 W at 55°C with fan module
  • 77 W at 60°C
  • 85 W at 55°C
• Secondary Power:
  • 75 W at 5 V DC
  • 1.6 A at 24 V DC (sensor power supply)
  • 15 A at 5 V DC
• Insulation Resistance:
  • >= 100 MOhm (primary/ground)
  • >= 100 MOhm (primary/secondary)
• Marking: CE
• Module Format: Double
• Immunity to Microbreaks: <= 10 ms
• Dielectric Strength:
  • 2000 V primary/earth
  • 2000 V primary/secondary

Powerful and Efficient Design for Demanding Industrial Environments

The Schneider TSXPSY8500M delivers exceptional performance by converting AC power into stable DC power. It supports multiple voltage ranges to meet various industrial needs. With overload, overvoltage, and short-circuit protection, this power supply module ensures a secure and reliable operation, safeguarding your sensitive equipment.

Enhanced Protection Features for Safety and Reliability

Equipped with internal fuses and robust protection for both primary and secondary circuits, the TSXPSY8500M prevents damage caused by electrical surges. It also offers overload protection and short-circuit protection, which further enhances the durability and safety of connected devices. The dielectric strength of 2000 V guarantees reliable insulation even under harsh operating conditions.

Efficient Power Delivery and Cooling

The TSXPSY8500M ensures stable operation at high temperatures. At 55°C with a fan module, it delivers 100 W of secondary power, which is ideal for power-hungry industrial systems. Even at 60°C, it continues to perform efficiently, providing 77 W of secondary power. The module’s immunity to microbreaks (up to 10 ms) ensures it maintains power continuity even during brief power interruptions.

Compact and Durable for Industrial Applications

With a double module format, the TSXPSY8500M is designed for ease of installation in space-constrained environments. It maintains high performance while withstanding the challenges of industrial automation environments. Additionally, its compact design and CE marking ensure compliance with European safety standards.
