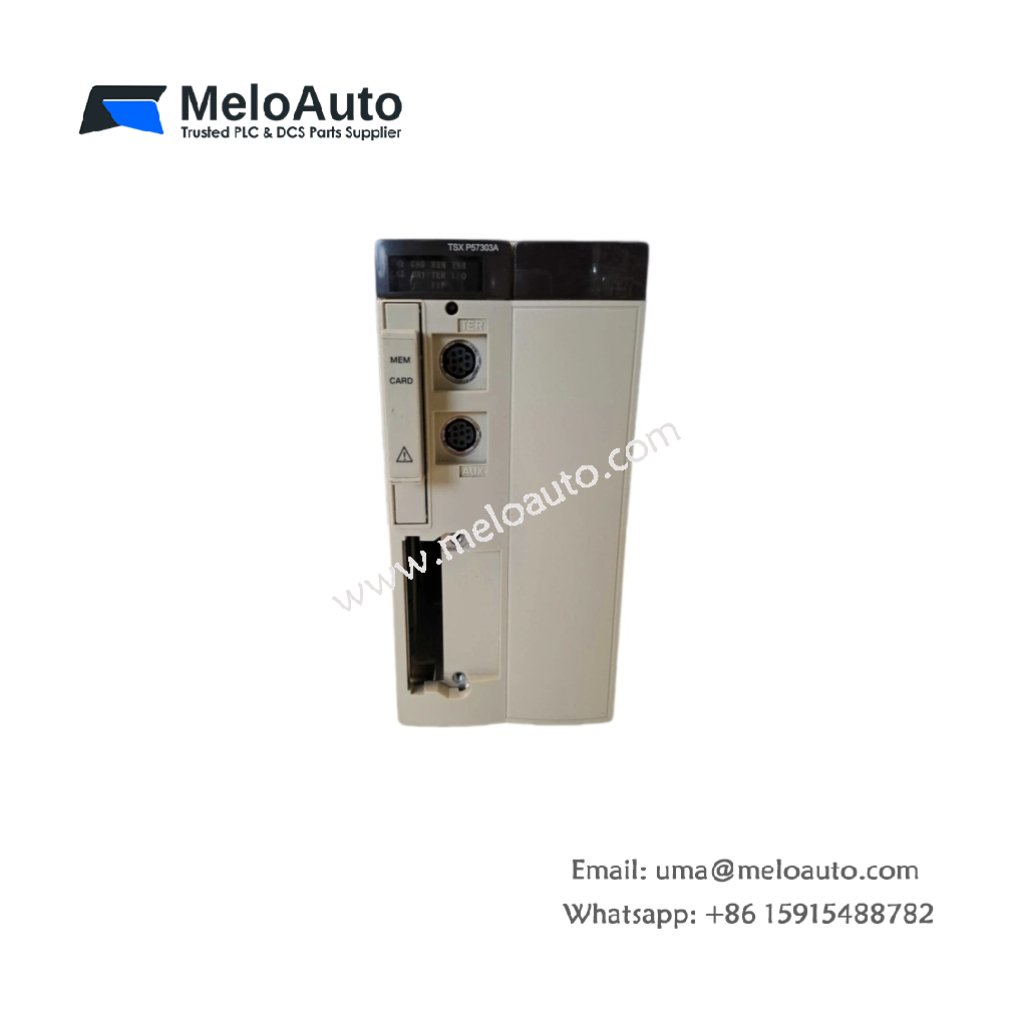

Schneider TSXP57303AM Double Format PL7 Processor

The TSXP57303AM delivers powerful processing capabilities in a double format chassis. This Schneider Electric unit executes PL7 programming with exceptional speed and precision. We engineered this processor to handle complex automation sequences in demanding industrial environments.

Technical Specifications and Design Features

This double format processor weighs approximately 0.65 kilograms. Its dimensions measure 130 millimeters in height, 100 millimeters in width, and 140 millimeters in depth. The unit occupies two slots in the Modicon Premium backplane for enhanced functionality.

Parameter	Specification
Manufacturer	Schneider Electric
Model	TSXP57303AM
Category	Double Format PL7 Processor
Product Line	Modicon Premium
Processor Type	32-bit RISC
Memory	1 MB RAM, 768 KB Flash
Processing Speed	0.19 µs per instruction
I/O Capacity	1024 digital, 256 analog
Programming Software	PL7 Pro
Communication Ports	2 x Modbus RS-485
Backup Battery	Lithium 3V (integrated)
Operating Temperature	0°C to 60°C
Dimensions (H x W x D)	130 mm x 100 mm x 140 mm
Weight	0.65 kg

Engineers will value the extensive memory allocation within the TSXP57303AM. This processor provides 1 megabyte of RAM for program execution and data storage. An additional 768 kilobytes of flash memory preserves applications during power cycles.

Furthermore, the double format design accommodates enhanced communication capabilities. Two independent Modbus RS-485 ports enable simultaneous connections to operator interfaces and field devices. This configuration reduces the need for external communication modules.

Integrated Energy Storage and Data Preservation

The TSXP57303AM includes a lithium 3V backup battery for critical data retention. This battery maintains program integrity and real-time clock settings during main power interruptions. Engineers can rely on this energy storage to prevent data loss in the field.

Programming and System Integration

You can program this processor using Schneider Electric PL7 Pro software. The TSXP57303AM supports multiple IEC 61131-3 languages including ladder diagram and structured text. This flexibility allows programmers to choose the most suitable approach for each application.

The processor manages up to 1024 digital I/O points and 256 analog channels. This scalability makes it ideal for mid-sized to large automation projects. For reference, other Modicon Premium components share this same backplane architecture with the TSXP57303AM.

Performance Metrics

This unit executes instructions in just 0.19 microseconds per operation. Consequently, it handles high-speed motion control and fast logic scanning with exceptional precision. The TSXP57303AM includes diagnostic LEDs for power, run, and communication status monitoring.
