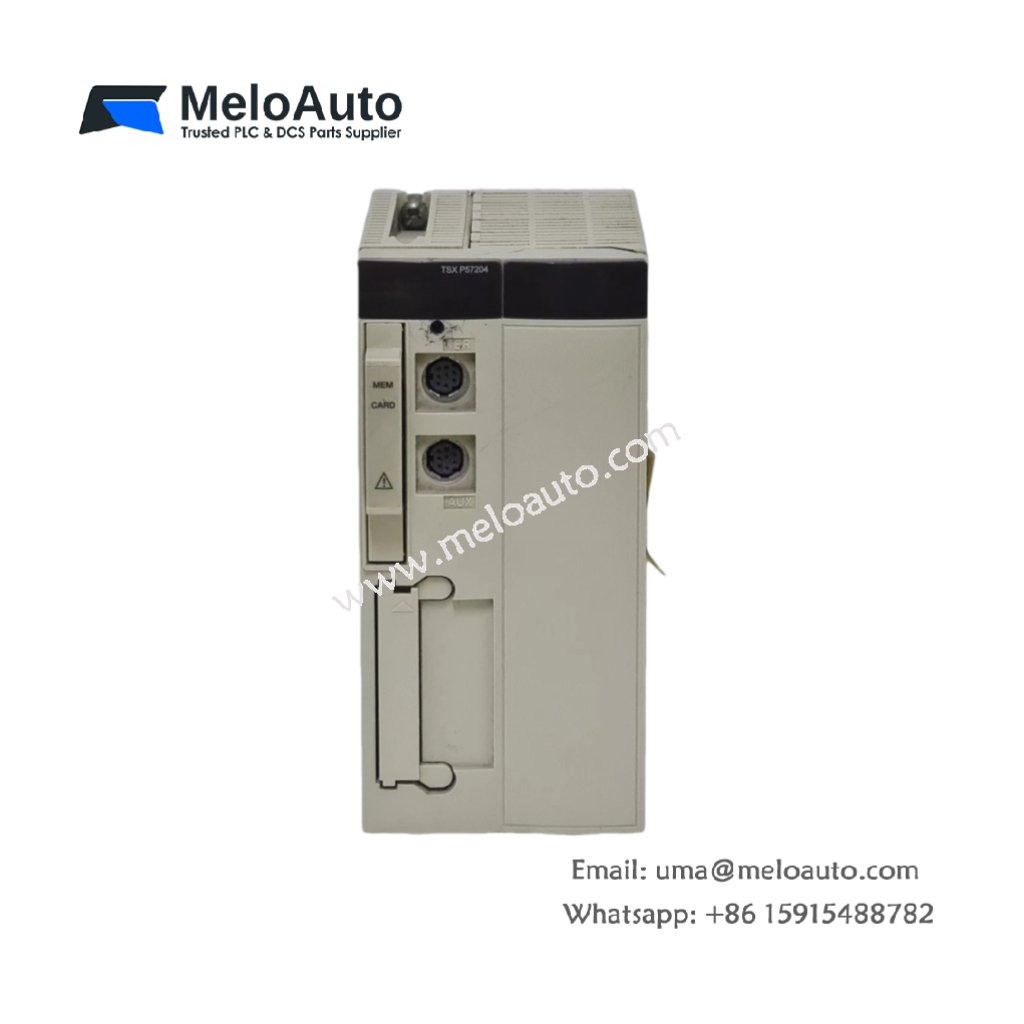

Schneider TSXP57204 Unity Processor

The Schneider TSXP57204 Unity processor provides excellent performance for complex industrial control systems. It supports multiple configurations, making it versatile for different setups. This processor can handle up to 8 racks with 12 slots or 16 racks with 4/6/8 slots, giving users flexibility in their application needs.

Key Features of the Schneider TSXP57204 Unity Processor

• Rack Configuration Flexibility: You can choose between 8 racks (12 slots) or 16 racks (4/6/8 slots), offering tailored solutions.
• High Capacity: It handles up to 128 discrete I/O, 1024 analog I/O, and 80 process control channels, making it suitable for large-scale operations.
• Communication: The processor features a reliable non-isolated serial link with two female mini DIN RS485 ports. It supports data transfer at 19.2 kbit/s, ensuring stable communication.
• Expandable Memory: You can expand memory with a PCMClA card, which adds up to 16,384 kB of data storage.
• Memory Options: The processor includes 160 kB of internal RAM for programs and data. With the PCMClA card, memory increases to 768 kB for programs and 160 kB for data.

Technical Specifications for Schneider TSXP57204

Description

The Schneider TSXP57204 Unity processor stands out for its flexibility and reliability. It supports configurations of up to 8 racks, each with 12 slots, or 16 racks with 4/6/8 slots. This flexibility allows users to choose the setup that best suits their system. Additionally, it handles up to 128 discrete I/O points and 1024 analog I/O points, making it capable of managing large-scale industrial operations.

What sets the TSXP57204 apart is its communication capabilities. The processor uses a non-isolated serial link with two female mini DIN RS485 ports, ensuring seamless communication across various system components. Furthermore, it supports data transfer at 19.2 kbit/s, ensuring consistent and efficient operation.

The processor is equipped with 160 kB of internal RAM, supporting program and data storage. For users who need additional storage, the TSXP57204 offers a PCMClA card that expands memory to 768 kB for program storage and 160 kB for data. This flexibility makes the processor ideal for applications requiring substantial data handling and program complexity.

Memory and Expansion

• Internal RAM: The TSXP57204 comes with 160 kB of internal RAM. This memory supports both program execution and data storage, making it ideal for small to medium-sized systems.
• PCMClA Expansion: Users can further enhance memory by adding a PCMClA card. This expansion provides up to 16,384 kB of additional storage, making the TSXP57204 well-suited for large-scale applications with demanding data requirements.

The processor’s high memory capacity and I/O handling abilities provide users with the flexibility they need for sophisticated industrial control tasks. Whether you need to automate complex processes, control machinery, or integrate multiple systems, the TSXP57204 delivers reliable and precise performance.

Applications

• Process Automation: Ideal for controlling large industrial processes with precision and efficiency.
• Machine Control: Perfect for applications requiring the management of complex machine operations.
• System Integration: Works seamlessly with other Schneider Electric automation solutions for efficient system integration.
• Manufacturing: Well-suited for manufacturing environments with a need for high communication speed and large data handling capabilities.
