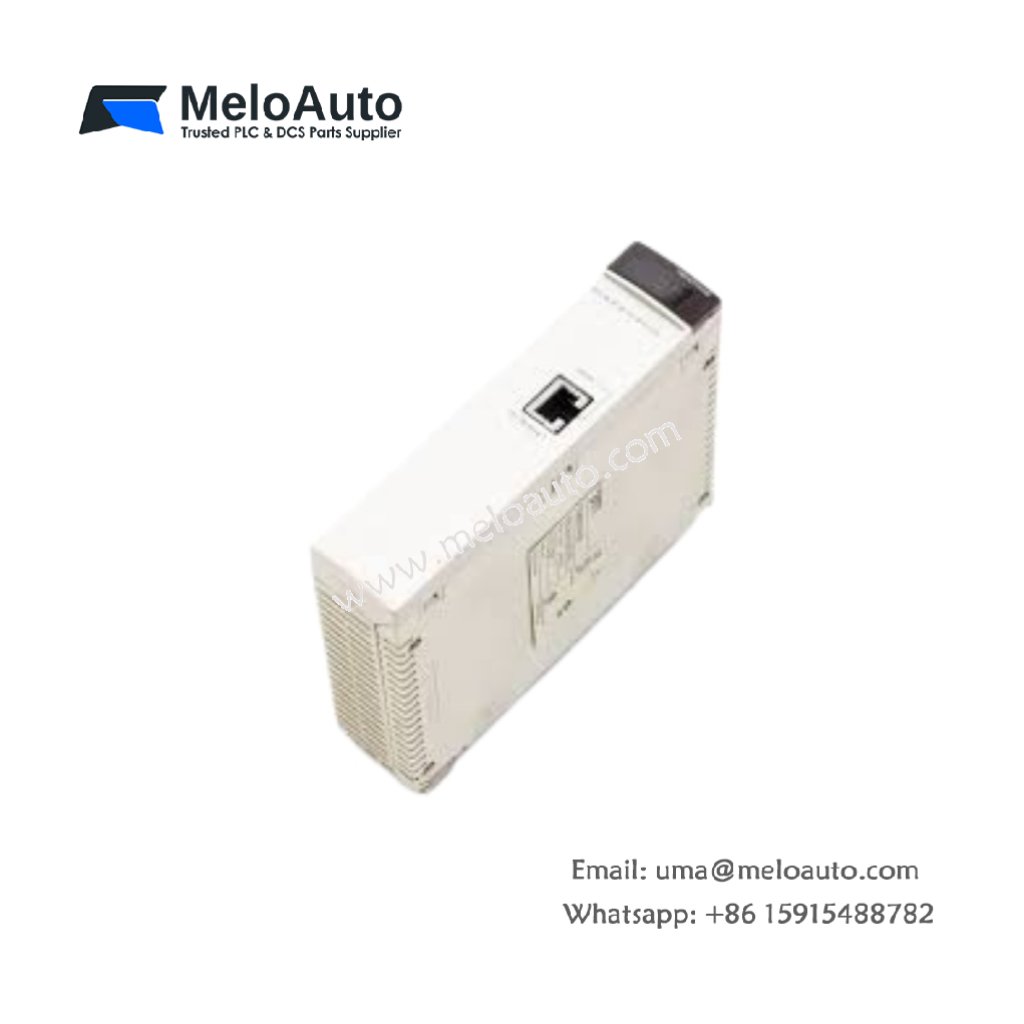

Schneider TSXETY4103 | Ethernet TCP/IP Module

The Schneider TSXETY4103 provides reliable Ethernet connectivity for the Modicon Premium automation platform. This module supports a 10/100 Mbit/s transmission rate using a standard RJ45 interface. It draws only 360 mA from the 5 V DC rack power supply. Weighing just 0.34 kg, the Schneider TSXETY4103 fits easily into any Premium rack. Its compact dimensions save valuable cabinet space. Therefore, this module suits new installations and upgrades equally well.

Communication Features and Network Services

The Schneider TSXETY4103 supports Modbus TCP and Uni-Telway protocols simultaneously. Consequently, it connects seamlessly to drives, HMIs, and SCADA systems. This module handles up to 64 simultaneous connections for complex network architectures. It also performs I/O scanning without an external processor. As a result, you reduce hardware costs and simplify system design.

Diagnostics and Web Server Capabilities

Four LED indicators enable quick on-site troubleshooting for the Schneider TSXETY4103. These LEDs show collision detection (COL), network status (RUN), faults (ERR), and activity (TX/TR). Moreover, this module includes a Transparent Ready Class B30 web server. You can remotely view rack data or edit parameters using any web browser. Thus, the Schneider TSXETY4103 minimizes unnecessary field visits and reduces downtime.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider TSXETY4103
Product Category	Modicon Premium Ethernet Communication Module
Physical Interface	1 x RJ45 female (10BASE-T / 100BASE-TX)
Transmission Speed	10/100 Mbit/s (auto-negotiation)
Current Consumption	360 mA at 5 V DC
Power Dissipation	1.8 W maximum
Net Weight	0.34 kg (340 g)
Gross Weight (packaged)	426 g
Dimensions (H x W x D)	187.9 mm x 151.5 mm x 160 mm
Number of Components	1 main PCB + metal shielding housing
Energy Storage	No internal battery (no maintenance)
Max Simultaneous Connections	64
Supported Protocols	Modbus TCP, Uni-Telway, TCP/IP, UDP
Web Server Class	Transparent Ready Class B30
LED Indicators	4 (COL, RUN, ERR, TX/TR)
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +85°C
Degree of Protection	IP20
Certifications	UL 508, CSA 1010-1, CE
Configuration Software	Unity Pro, PL7 Pro

Logistics and Compatibility Information

The Schneider TSXETY4103 ships as a single unit (PCE) with mounting hardware included. This module works exclusively with the Modicon Premium automation platform. Use either Unity Pro or PL7 Pro software for configuration. Importantly, the module stores no energy locally. Therefore, it requires no periodic battery replacement. This design ensures long-term reliability in continuous industrial operations.
