Schneider BMXNOC0401 | Modicon M340 Ethernet Module

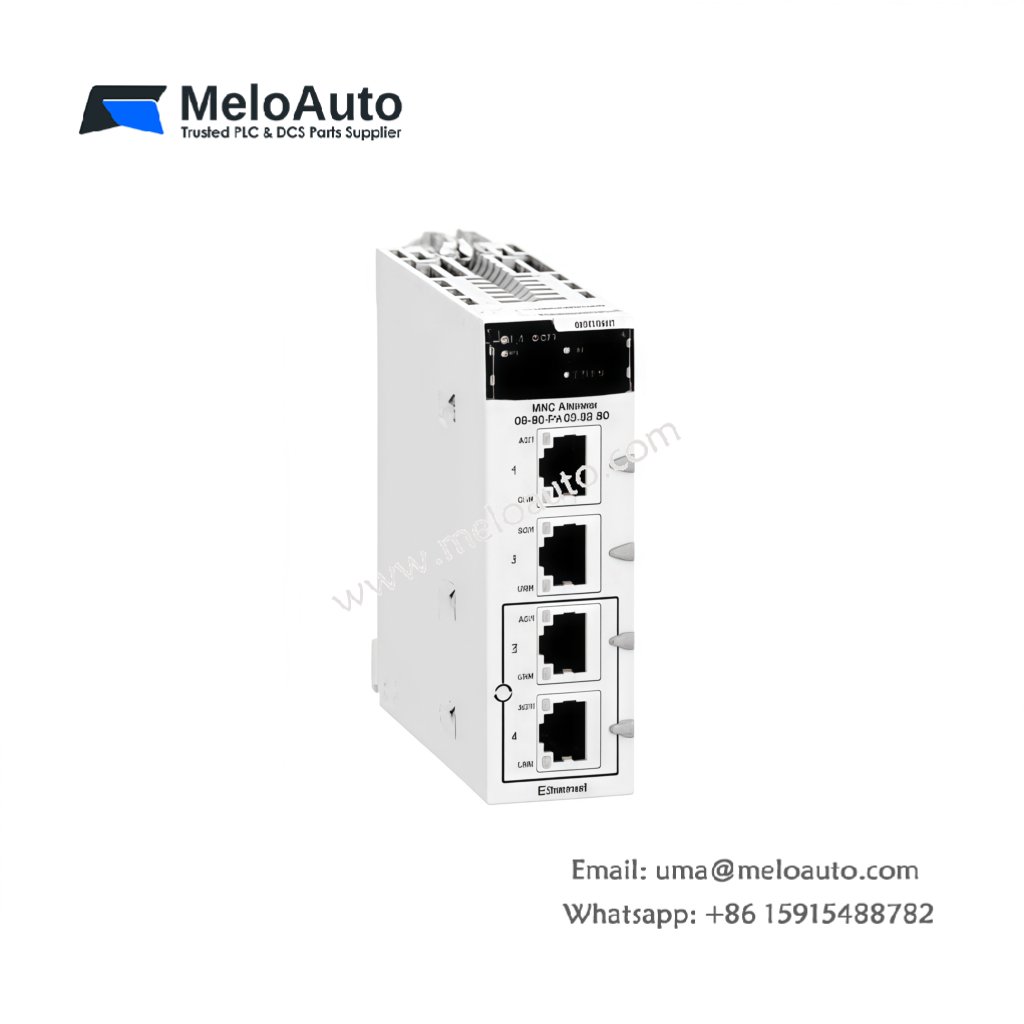

The Schneider BMXNOC0401 brings high-speed Ethernet connectivity to the Modicon M340 platform. This module supports a 10/100 Mbit/s transmission rate for reliable data exchange. It uses a standard RJ45 interface for straightforward cabling. The unit draws only 190 mA from the 5 V DC rack power supply. Weighing just 0.21 kg, the Schneider BMXNOC0401 fits perfectly into any M340 rack slot.

Communication Protocols and Network Capabilities

The Schneider BMXNOC0401 supports both Modbus TCP and Modbus UDP protocols. Therefore, it connects seamlessly to drives, HMIs, and SCADA systems. This module handles up to 16 simultaneous connections for small to medium networks. It also offers embedded web server functionality for remote diagnostics. Consequently, you can monitor system status without leaving your desk.

Diagnostics and Connectivity Features

Two LED indicators simplify on-site troubleshooting for the Schneider BMXNOC0401. These LEDs show Ethernet activity (ETH) and module status (RUN/ERR). Moreover, this module supports automatic IP configuration via DHCP. You can also set a fixed IP address for stable network operation. Thus, the Schneider BMXNOC0401 reduces installation time and minimizes configuration errors.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider BMXNOC0401
Product Category	Modicon M340 Ethernet Communication Module
Physical Interface	1 x RJ45 female (10BASE-T / 100BASE-TX)
Transmission Speed	10/100 Mbit/s (auto-negotiation)
Current Consumption	190 mA at 5 V DC
Power Dissipation	0.95 W maximum
Net Weight	0.21 kg (210 grams)
Gross Weight (packaged)	310 grams
Dimensions (H x W x D)	100 mm x 55 mm x 70 mm
Number of Components	1 main PCB + metal shielding housing
Energy Storage	No internal battery (maintenance-free)
Max Simultaneous Connections	16
Supported Protocols	Modbus TCP, Modbus UDP, SNMP, HTTP
Web Server	Embedded (for diagnostics only)
LED Indicators	2 (ETH, RUN/ERR)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL, CSA, ATEX Zone 2
Configuration Software	EcoStruxure Control Expert, Unity Pro M340

Logistics and Compatibility Information

The Schneider BMXNOC0401 ships as a single unit (PCE) with mounting hardware included. This module works exclusively with the Modicon M340 automation platform. Use EcoStruxure Control Expert or Unity Pro M340 for configuration. Importantly, the module stores no energy locally. Therefore, it requires no periodic battery replacement. This design ensures long-term reliability in continuous industrial environments. The module operates flawlessly from 0°C to +60°C ambient temperature.
