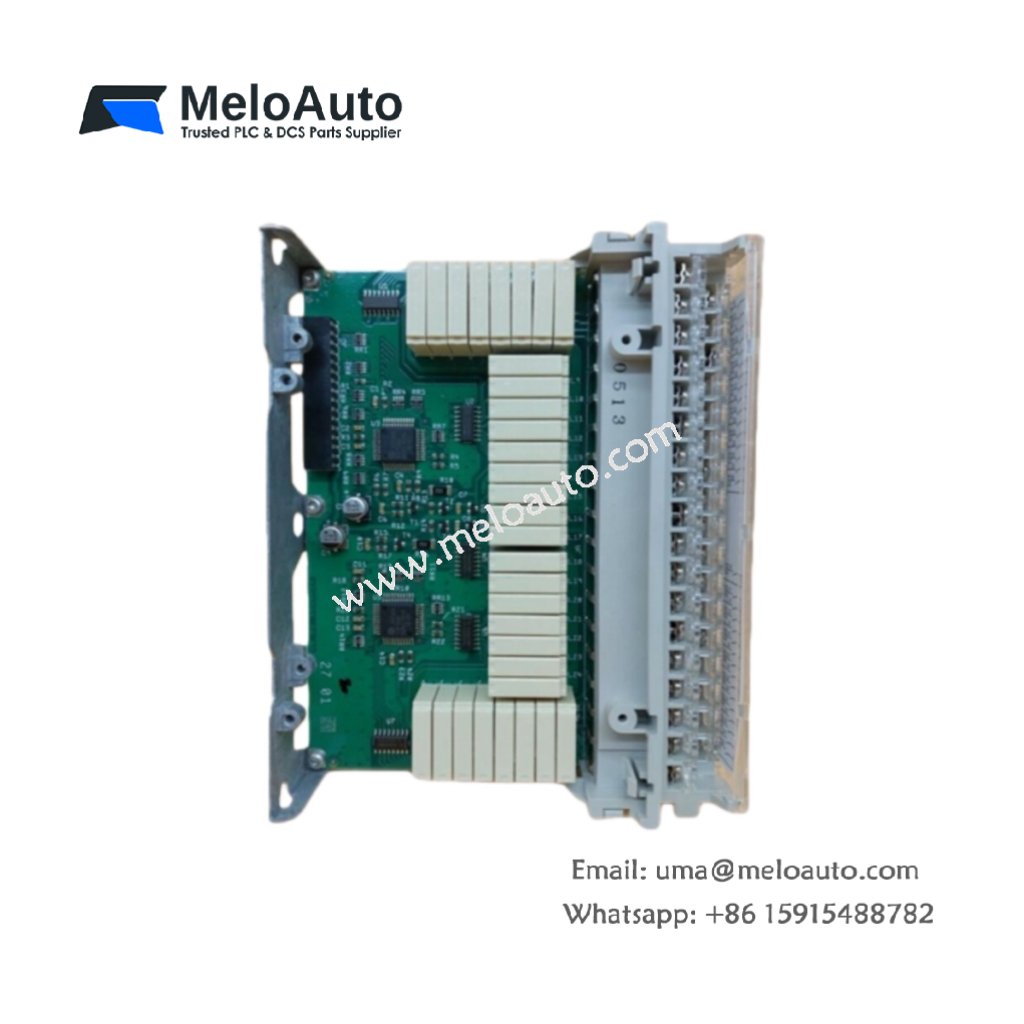

Schneider TSXDSZ32R5 32-Output Relay Module

The Schneider TSXDSZ32R5 is a reliable and high-performance relay discrete output module, designed for use in Schneider Electric’s Modicon TSX Micro automation platform. This module features 32 normally open (NO) contacts with screw terminal block outputs, making it ideal for a wide range of industrial applications, including machine control, infrastructure systems, and manufacturing automation.

Key Features of Schneider TSXDSZ32R5

32 Output Channels: The TSXDSZ32R5 offers 32 discrete output channels through screw terminal blocks, providing secure and easy connections for controlling various industrial systems.
Wide Voltage Range: It supports output voltages ranging from 19V AC to 264V AC and 10V to 34V DC, allowing compatibility with diverse industrial environments and equipment.
High Current Capacity: With a conventional thermal current of 2A, the module can easily handle demanding tasks while maintaining high reliability.
Efficient Power Consumption: The module consumes only 175mA of current and has a power dissipation of 3.5W, making it energy-efficient and cost-effective in long-term operation.
Fast Response Time: Achieve fast system responses with a response time of less than 10 milliseconds, which is crucial for time-sensitive automation tasks.
Versatile Applications: The TSXDSZ32R5 is designed to be used in various automation applications, such as controlling machinery, managing manufacturing processes, and optimizing infrastructure systems.

Technical Specifications

Specification	Value
Part Number	TSXDSZ32R5
Manufacturer	Schneider Electric
Module Type	Relay Discrete Output Module
Number of Output Channels	32 Screw Terminal Block Outputs
Contacts Type	Normally Open (NO)
Output Voltage Range	19V AC – 264V AC, 10V DC – 34V DC
Thermal Current (Ith)	2 A
Power Consumption (VA)	50 VA (24V AC-12 resistive)
	100 VA (48V AC-12 resistive)
Power Consumption (W)	3.5 W
Response Time	< 10 ms
Current Consumption	175 mA
Power Dissipation	3.5 W
Isolation Voltage	1500 V for 1 second
Insulation Resistance	>= 10 MΩ
Dimensions (L x W x H)	26 x 18 x 5.5 cm
Weight	641 g
Packaging	1 Unit per Package
Warranty	18 months

Applications of Schneider TSXDSZ32R5

The TSXDSZ32R5 is highly suited for a wide range of industrial control applications. It plays a crucial role in manufacturing systems, machine control, and infrastructure management, ensuring seamless operation with high reliability. This module fits perfectly into Modicon TSX Micro platforms, enhancing the overall performance and flexibility of your automation system.

Why Choose the Schneider TSXDSZ32R5?

The TSXDSZ32R5 stands out with its excellent speed, low power consumption, and high voltage versatility. It offers a robust solution for industrial applications that require precise control, fast response times, and seamless integration with other Modicon components. If you’re looking for a dependable, energy-efficient relay output module, the Schneider TSXDSZ32R5 provides all of these capabilities and more.
