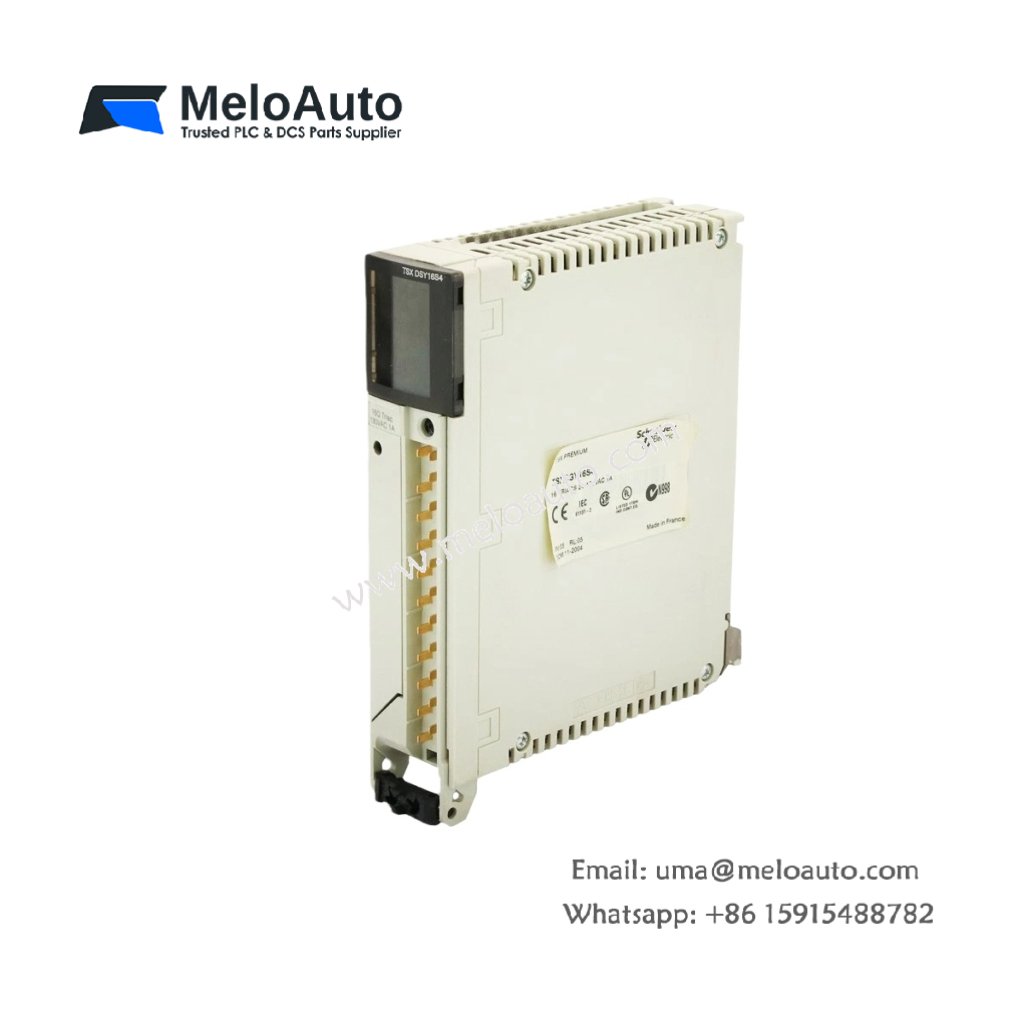

Schneider TSXDSY16S4 Discrete Output Module

The Schneider TSXDSY16S4 is a high-performance discrete output module designed for the Modicon Premium Automation platform. This module features 16 solid-state outputs, offering reliable control and signal processing in industrial applications. With an operating voltage range of 24 to 120 V AC and Triac outputs, the TSXDSY16S4 ensures efficient and durable performance in demanding environments.

Key Features of the Schneider TSXDSY16S4 Discrete Output Module

Solid-State Outputs: The Schneider TSXDSY16S4 supports 16 solid-state outputs, designed for high reliability and speed.
Wide Voltage Range: Operates within a voltage range of 24 to 120 V AC, ensuring compatibility with a variety of systems.
Fast Response Time: With a response time of less than 10 ms for both activation and deactivation, the module ensures precise control.
Enhanced Protection: Features Ge-Mov overvoltage protection, fireproof protection for short-circuit and overload, and a high isolation resistance of more than 10 MΩ.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Discrete Output Module
Product Line	Modicon Premium
Part Number	TSXDSY16S4
Number of Outputs	16 Discrete Outputs
Output Type	Triac, not protected
Output Voltage	24 to 120 V AC (EN/IEC 61131-2, 20 to 132 V)
Current per Channel	1 A per channel
Maximum Current per Module	12 A
Response Time	< 10 ms (activation/deactivation)
Overvoltage Protection	Ge-Mov
Overload Protection	10 A, non-interchangeable fireproof protection
Short-circuit Protection	10 A, non-interchangeable fireproof protection
Isolation Resistance	> 10 MΩ (500 V)
Power Dissipation	0.85 W + (1 W x Number of Outputs x Current per Module)

Product Description

The Schneider TSXDSY16S4 discrete output module is specifically designed for the Modicon Premium automation platform. Featuring 16 solid-state outputs, this module offers superior performance and flexibility for a wide range of industrial automation tasks. The TSXDSY16S4 is ideal for applications requiring fast, reliable switching of AC signals.

It operates across a wide voltage range, from 24 V AC to 120 V AC, and supports Triac outputs for reliable signal switching. The Schneider TSXDSY16S4 provides overvoltage protection (via Ge-Mov) and fireproof protection to ensure safety in demanding applications. The module also features a high isolation resistance and short-circuit protection, ensuring durability and reliability over time.

Applications

The Schneider TSXDSY16S4 is ideal for:

Industrial automation systems requiring reliable discrete outputs.
Modicon Premium platforms for precise control.
Systems needing solid-state switching with overload and short-circuit protection.
