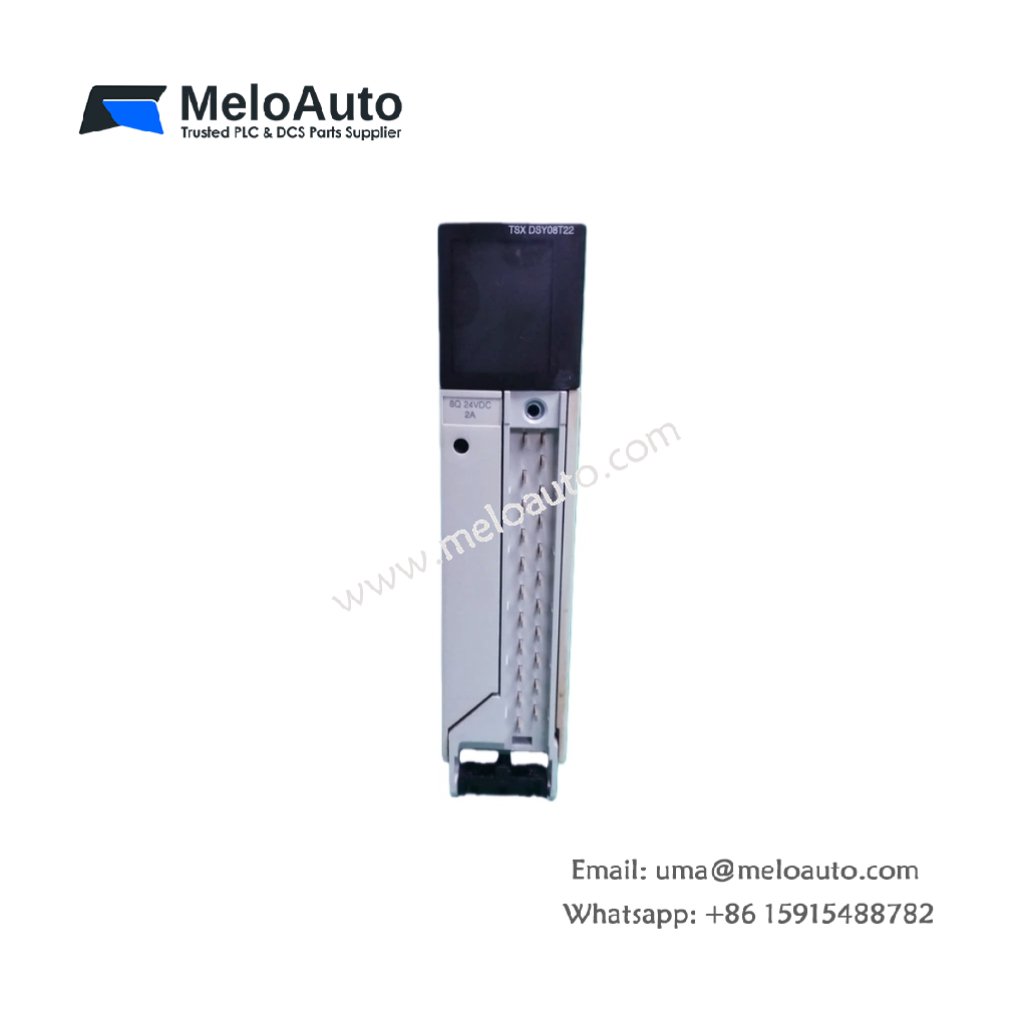

Schneider TSXDSY08T22 Discrete Output Module

The TSXDSY08T22 by Schneider Electric is a high-performance discrete output module in the Modicon Premium series. It features solid-state protected outputs, ensuring reliability in a wide range of industrial applications.

Key Features of TSXDSY08T22

• Solid-State Protected Outputs: Ensures long-term durability and minimal maintenance.
• Current Handling: Each output channel supports up to 2.5 Amps, with the module handling a total current of 14 Amps.
• Efficient Performance: With a maximum leakage current of just 1 mA and residual voltage of only 0.5V, it operates with minimal energy waste.
• Wide Temperature Range: Operates effectively from 0°C to +60°C, with storage temperatures from -25°C to +70°C.
• Versatile Use: Ideal for various applications that require dependable and efficient output control.

Technical Specifications for TSXDSY08T22

Description

The Schneider Electric TSXDSY08T22 is a discrete output module designed to ensure long-term reliability in demanding industrial applications. It features 8 solid-state protected outputs capable of handling up to 2.5 Amps per channel. With a total maximum current of 14 Amps, this module offers robust output control.

At an output voltage of 24V DC, it is highly efficient, operating with a maximum leakage current of just 1 mA and a residual voltage of 0.5V. These characteristics make the module energy-efficient and reduce the need for frequent maintenance.

This module performs effectively across a wide temperature range. It operates within an environment of 0°C to +60°C, making it suitable for most industrial settings. Additionally, it can endure storage temperatures from -25°C to +70°C, allowing for reliable use even in extreme conditions.
