Overview

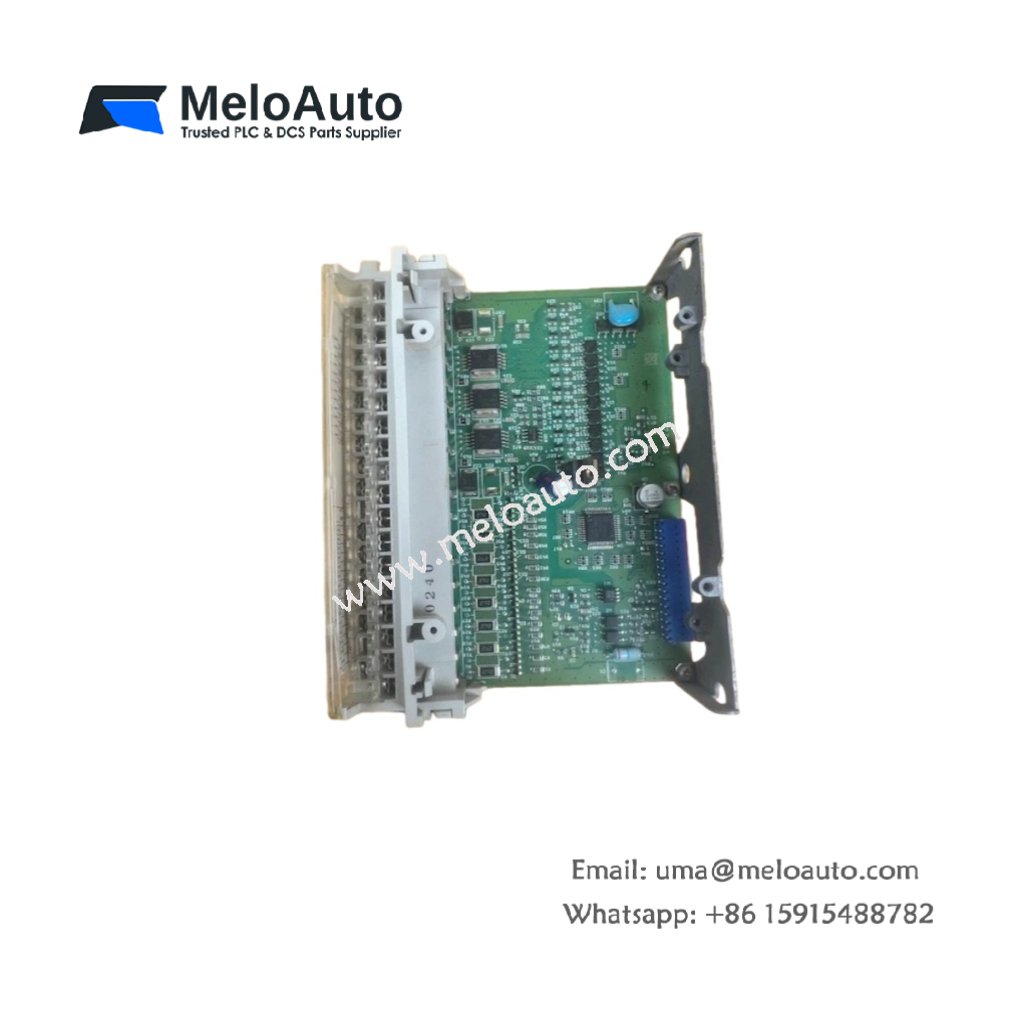

The Schneider TSXDMZ28DT is a reliable I/O module designed for the Modicon TSX Micro automation platform. It offers 28 I/O points in a compact, solid-state design, ideal for efficient and durable automation control. This module features both discrete input and output capabilities, ensuring precise control in a variety of industrial applications.
Key Features
- Compact Design: The TSXDMZ28DT fits perfectly within the Modicon TSX Micro automation platform, making it ideal for space-constrained systems.
- Discrete Inputs and Outputs: It supports 16 discrete inputs and 12 discrete outputs, enabling precise control of various industrial processes.
- Solid-State Reliability: Solid-state technology ensures greater durability and reliability, even in harsh operating environments.
- Fast Response Time: With a low current draw and high-speed response, this module enhances system efficiency.
- Wide Input and Output Range: Supports both resistive inputs and outputs, providing flexibility in industrial automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TSXDMZ28DT |
| Product Type | Solid-State I/O Module |
| Manufacturer | Schneider Electric |
| Compatible Product Line | Modicon TSX Micro |
| Discrete Input Number | 16 |
| Discrete Input Voltage | 24 V DC positive |
| Discrete Input Current | 7 mA |
| Discrete Input Type | Resistive |
| Discrete Output Number | 12 |
| Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 0.5 mA |
| Discrete Output Logic | Positive |
| Connector Type | HE-10 connector |
| Mounting Type | Screw terminal block |
| Environmental Protection | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Weight | 0.6 kg (approx.) |
Applications
The Schneider TSXDMZ28DT module is ideal for the following applications:
- Industrial Automation: Ideal for precise control of processes requiring discrete input and output signals.
- Machine Monitoring: Used to monitor the status of various machines in production lines.
- Control Systems: Provides effective integration into control systems for managing automated processes.
- Process Control: Efficiently handles tasks such as regulating pressure, temperature, and flow in industrial applications.
