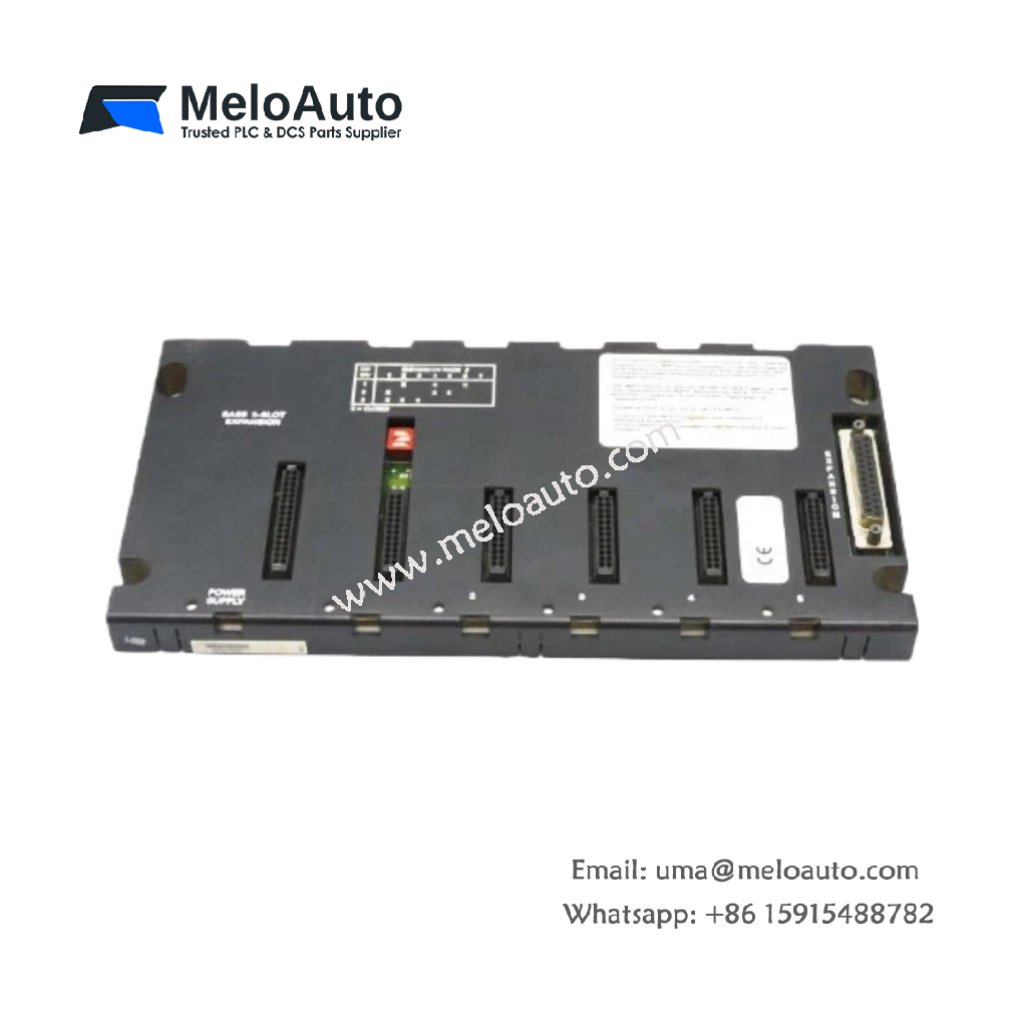

GE IC693CHS398 5-Slot Expansion Baseplate

Overview

The GE IC693CHS398 is a 5-slot expansion baseplate designed for the Series 90-30 PLC platform. Manufactured by GE Fanuc, now under Emerson Automation, this baseplate enhances control system flexibility by allowing the addition of I/O modules to the central processing unit (CPU). By using this expansion baseplate, you can easily increase your system’s input/output capacity and improve overall performance.

Key Features

Expand Your System: The IC693CHS398 supports the connection of up to 4 expansion baseplates for CPU 331, 340, and 341. With CPU 350 and higher, it supports up to 7 expansion baseplates.
5 I/O Slots: This baseplate provides 5 slots for I/O modules and option modules, allowing for flexible system configuration.
Power Supply Compatibility: The IC693CHS398 requires a dedicated power supply module to ensure reliable operation. The power supply connects via a specific slot on the left side of the unit.
Easy Expansion: A 25-pin D-shell female connector enables easy connection to additional baseplates, offering seamless integration.
Durable Design: Built to withstand industrial environments, this baseplate guarantees reliable performance even in demanding conditions.

Technical Specifications

Specification	Details
Part Number	IC693CHS398
Manufacturer	GE Fanuc Emerson
Product Line	Series 90-30
Number of Slots	6 (5 I/O slots, 1 Power Supply slot)
Number of I/O Slots	5 (I/O modules or option modules)
Expansion Slot	25-pin D-shell female connector
Compatible CPUs	CPU 331, 340, 341, 350 or higher
Power Supply Slot	Yes, dedicated slot for power supply module
Maximum Expansion	Up to 4 baseplates for CPU 331, 340, 341; 7 for CPU 350 and higher
Expansion Cable Length	Up to 50 feet (15 meters)
Mounting Type	Panel Mounting
Internal Power Consumption	170 mA at 5VDC
Bus Voltage	+5VDC
Rack Address Setting	Via DIP switch settings
Grounding	Common ground required
Module Compatibility	Supports I/O modules and option modules
Maximum Cable Length	50 feet or 15 meters
Product Lifecycle	Discontinued/Obsolete

Product Description

The GE IC693CHS398 expansion baseplate is crucial for expanding your Series 90-30 PLC system. It provides 5 I/O slots, enhancing the number of modules your system can support. You can install I/O modules and option modules in these slots to meet various system requirements. When you connect the IC693CHS398 to the CPU baseplate, it directly increases your system’s capacity.

You can connect up to 4 expansion baseplates to CPUs 331, 340, and 341, and up to 7 expansion baseplates for CPU 350 and higher. The system features a dedicated power supply slot for stable operation. It also has a 25-pin D-shell female connector for easy expansion to other baseplates.

For integration, IC693CHS398 uses a common ground system to maintain signal integrity. This expansion baseplate allows you to extend your control system easily while ensuring reliable communication and seamless operation.

Installation and Connectivity

Simple Installation: The IC693CHS398 mounts easily on the panel, simplifying system integration.
Flexible Expansion: The baseplate supports up to 50 feet (15 meters) of expansion cable, allowing flexibility in wiring.
Easy Module Configuration: With its dedicated power supply slot and 25-pin D-shell connector, the expansion baseplate is easy to connect and configure.

Conclusion

In conclusion, the GE IC693CHS398 provides vital expansion capabilities for your Series 90-30 PLC system. It offers 5 I/O slots, supports multiple expansion baseplates, and provides efficient power management. This baseplate is built to last, ensuring reliable system performance in industrial settings.
