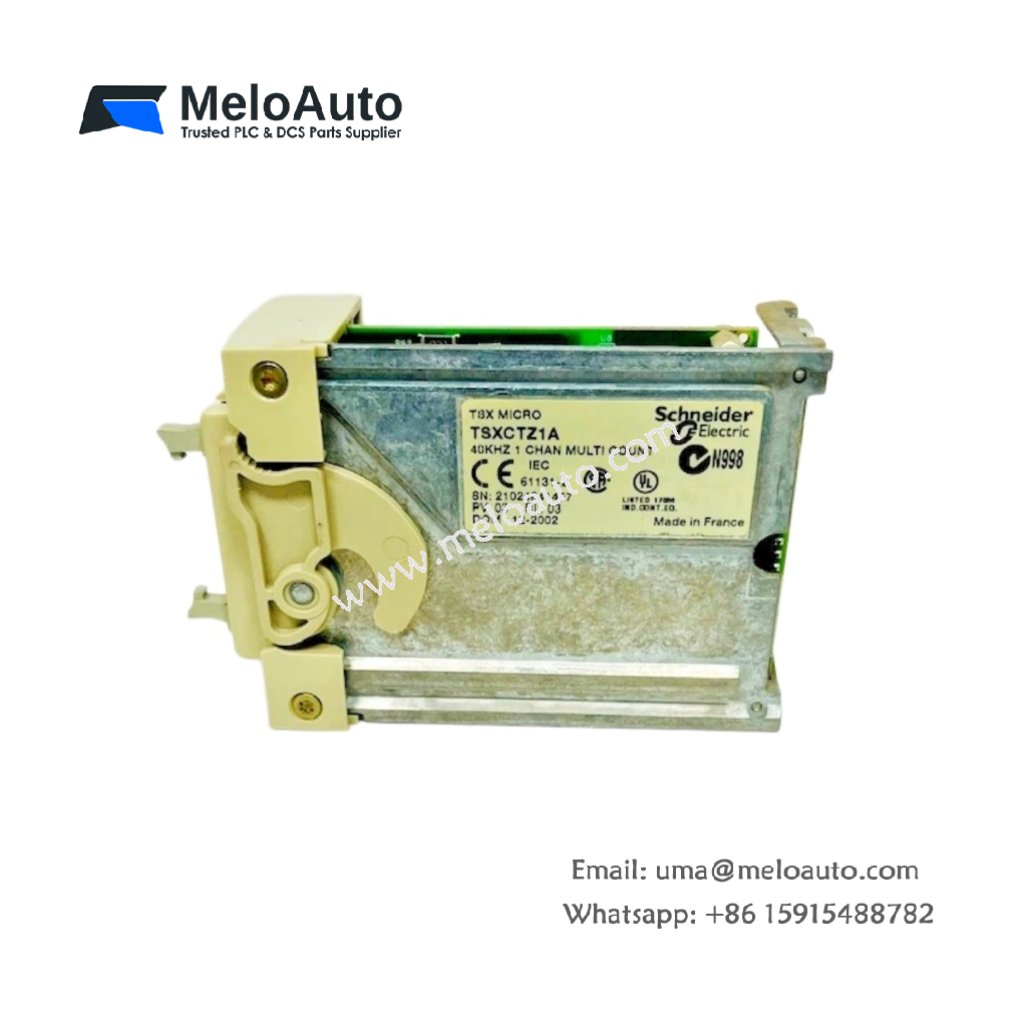

Schneider TSXCTZ1A TSX Micro 40kHz Counter Module

The Schneider TSXCTZ1A is a highly reliable TSX Micro 40kHz counter module designed for efficient industrial automation. This advanced module plays a crucial role in counting applications, particularly in control systems that require high-frequency pulse processing. It integrates seamlessly into the Schneider Electric TSX Micro system, offering precision and stability across various operational environments.

Key Features and Specifications

Model: Schneider TSXCTZ1A
Type: TSX Micro 40kHz Counter Module
Manufacturer: Schneider Electric
Product Line: TSX Micro Series
Part Number: TSXCTZ1A
Weight: 0.10 kg (approx.)
Voltage: 24V DC
Frequency Range: 40kHz
Input Type: High-speed pulse counting
Output Type: Digital pulse outputs
Mounting: Compatible with TSX Micro rack systems
Operating Temperature: 0°C to 55°C

Detailed Technical Specifications

Parameter	Value
Model	Schneider TSXCTZ1A
Type	TSX Micro 40kHz Counter Module
Voltage	24V DC
Frequency Range	40kHz
Input Type	High-speed pulse counting
Output Type	Digital pulse outputs
Weight	0.10 kg
Mounting	TSX Micro compatible rack system
Operating Temperature	0°C to 55°C

High-Speed Pulse Counting for Precision Control

The Schneider TSXCTZ1A is specifically engineered for high-speed pulse counting with a frequency range of 40kHz. This allows for accurate measurement and processing of pulse signals in time-critical applications. It’s an ideal solution for systems that require fast and reliable data collection in real-time.

Seamless Integration with Schneider Electric TSX Micro Series

This module is fully compatible with TSX Micro rack systems, making integration simple and effective. Once installed, it provides continuous, precise monitoring and counting capabilities, ensuring reliable performance even in challenging environments.

Efficient Performance with Wide Temperature Range

With an operational temperature range from 0°C to 55°C, the Schneider TSXCTZ1A can function in a variety of industrial conditions. Whether you’re using it in a controlled environment or in a fluctuating temperature zone, the module’s durability and efficiency remain unaffected.

Simple Installation for Smooth Operation

The Schneider TSXCTZ1A is designed for easy mounting within TSX Micro racks. This ensures quick installation with minimal downtime, so your control systems remain operational and efficient.
