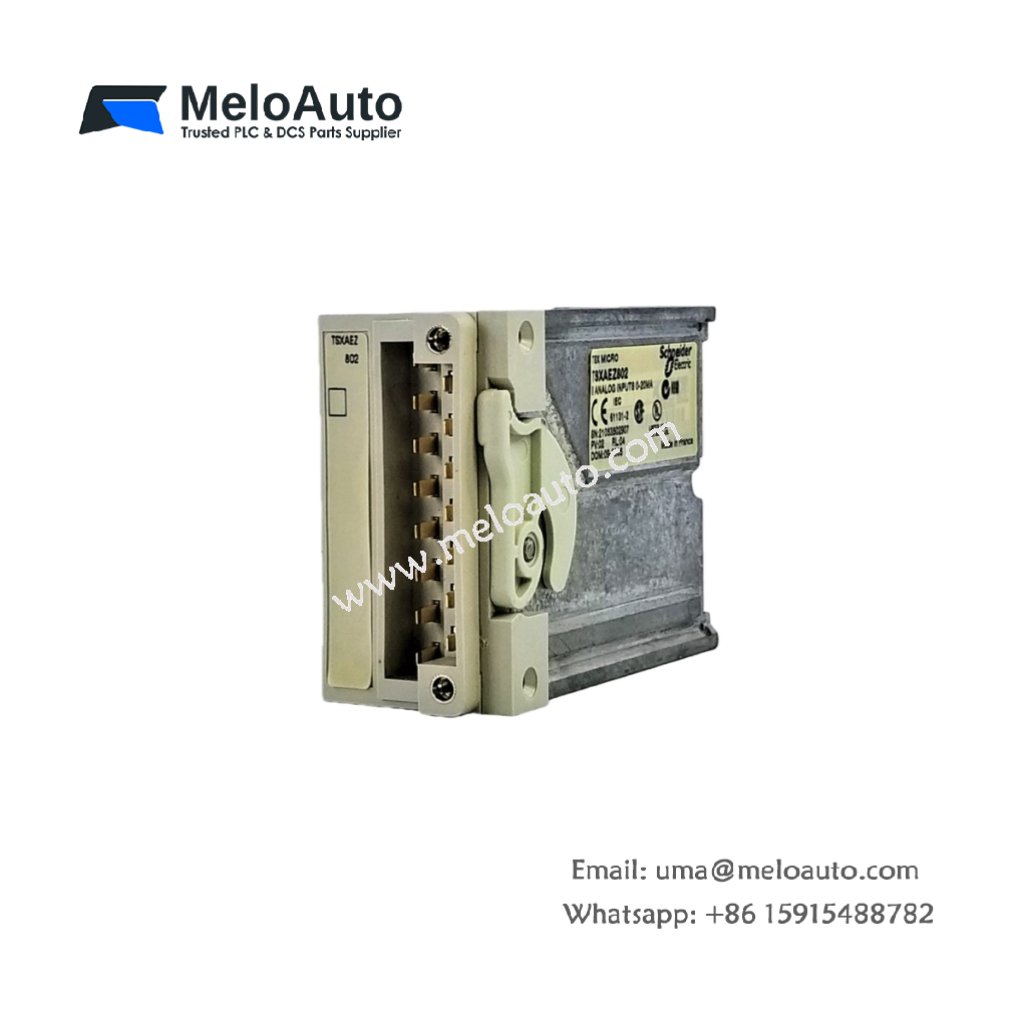

Schneider TSXAEZ802 Analog Input Module

The Schneider Electric TSXAEZ802 is a high-performance analog input module designed for the Modicon series. With 8 input channels, it supports 4 to 20 mA current input, making it ideal for various sensor-based applications. Featuring a 12-bit analog-to-digital conversion capability, the TSXAEZ802 ensures precise and reliable data acquisition in automation systems.

Key Features of the Schneider TSXAEZ802 Analog Input Module

Model: TSXAEZ802
Manufacturer: Schneider Electric
Product Line: Modicon Series
Product Type: Analog Input Module

Technical Specifications

Specification	Details
Model	TSXAEZ802
Number of Channels	8
Input Type	4 to 20 mA (Current Input)
Analog/Digital Conversion	12 bits
Acquisition Period	32 ms
Temperature Drift	0.054% per 10°C
Input Impedance	250 Ohm
Current Consumption	60 mA
Isolation Voltage	1000 V
Voltage Type	AC
Weight	0.50 lbs (0.23 kg)
EAN	3389110604504

Design and Performance

The TSXAEZ802 offers excellent performance with a 12-bit analog-to-digital conversion, ensuring high accuracy and reliability. It provides 8 input channels, which makes it highly adaptable to multiple sensor configurations. Each input accepts a 4 to 20 mA current, making it suitable for a wide range of industrial applications.

The module processes input data within a quick 32 ms acquisition period, ensuring timely data capture for real-time applications. Additionally, the temperature drift is minimal, at just 0.054% per 10°C, maintaining stable performance across varying environmental conditions.

Power and Connectivity

The TSXAEZ802 module operates with a current consumption of 60 mA and has an impressive isolation voltage of 1000 V, ensuring it can function in demanding electrical environments. The module also features an input impedance of 250 Ohm, optimizing signal processing for reliable input readings.

Why Choose the Schneider TSXAEZ802?

High precision with 12-bit conversion for accurate data acquisition
Fast data acquisition period of 32 ms, ideal for real-time control
Minimal temperature drift of just 0.054% per 10°C, ensuring stability
Easy integration with existing Modicon systems
Reliable 1000 V isolation voltage for enhanced safety and durability

The Schneider TSXAEZ802 analog input module is a powerful tool for enhancing your automation system’s performance. Its reliable and precise capabilities make it an excellent choice for demanding industrial applications.
