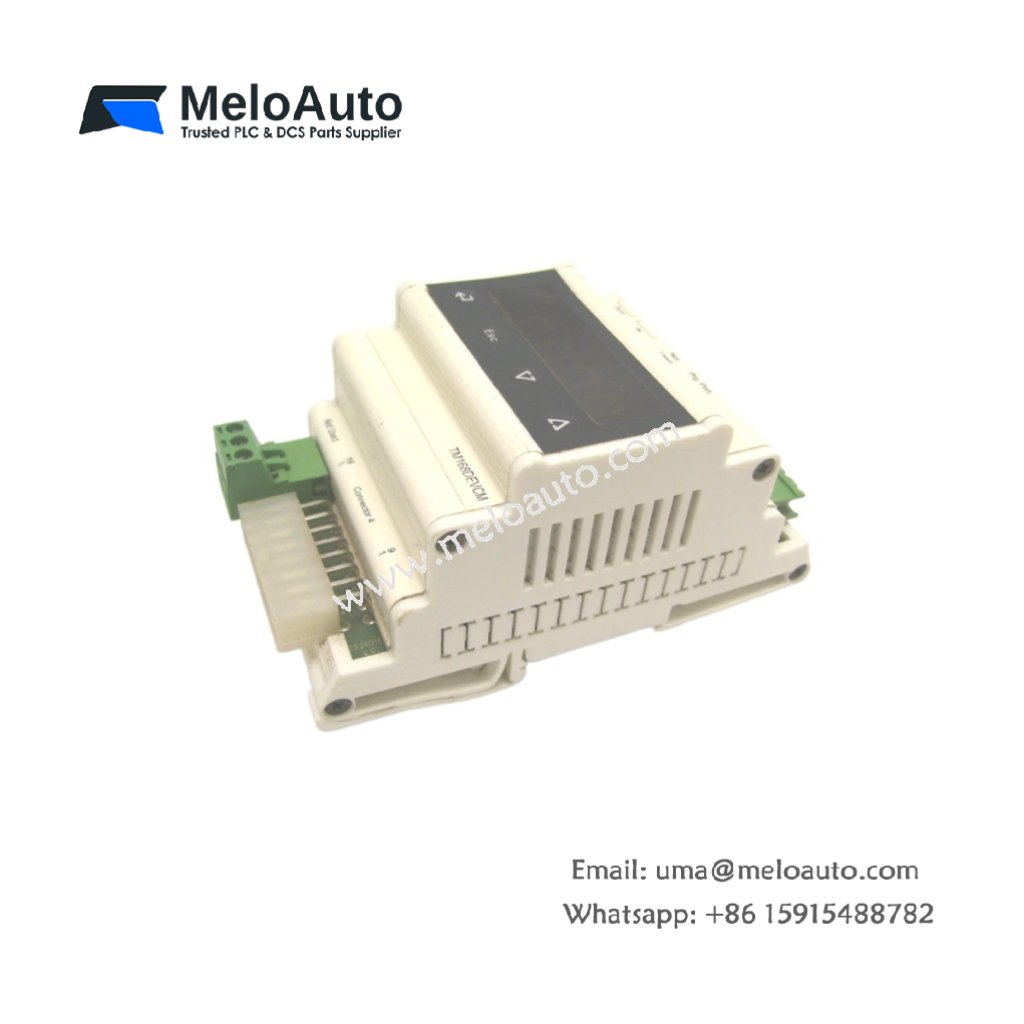

Schneider TM168DEVCM Expansion Module Display

Overview

The Schneider TM168DEVCM Expansion Module Display enhances PLC visualization with a user-friendly touchscreen interface. It seamlessly integrates with RMS-TSG-TZ-C series PLC systems for scalable industrial automation.

Key Features

Provides intuitive touchscreen interface for real-time monitoring of industrial processes.
Supports expansion of Schneider TM168 series PLC panels, increasing display capabilities.
Compact design allows easy installation in control cabinets or modular PLC racks.
Enables clear visualization of alarms, process values, and operational metrics.
Compatible with RMS-TSG-TZ-C series modules for flexible automation configurations.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model	TM168DEVCM
Series	RMS-TSG-TZ-C
Category	Expansion Module Display
Display Type	Color TFT Touchscreen
Screen Size	3.5 inch (diagonal)
Resolution	320 x 240 pixels
Communication Interface	RS232 / RS485 / Modbus
Operating Voltage	24 VDC
Power Consumption	2.5 W
Dimensions (HxWxD)	4.7 x 3.5 x 1.2 in (120 x 90 x 30 mm)
Weight	0.44 lb (0.2 kg)
Mounting Type	Panel / DIN rail
Operating Temperature	0°C to 60°C
Protection Class	IP20

Applications

Schneider TM168DEVCM is ideal for enhancing visualization in industrial automation systems:

Expands TM168 series PLC panels for clearer operator interface and control.
Displays real-time process parameters and alarm information on factory floors.
Integrates with RMS-TSG-TZ-C PLC series for modular automation applications.

Advantages

Improves operator efficiency with responsive touchscreen display and compact design.
Simplifies installation with DIN rail or panel mounting options.
Provides reliable visualization in industrial environments with IP20 protection.
