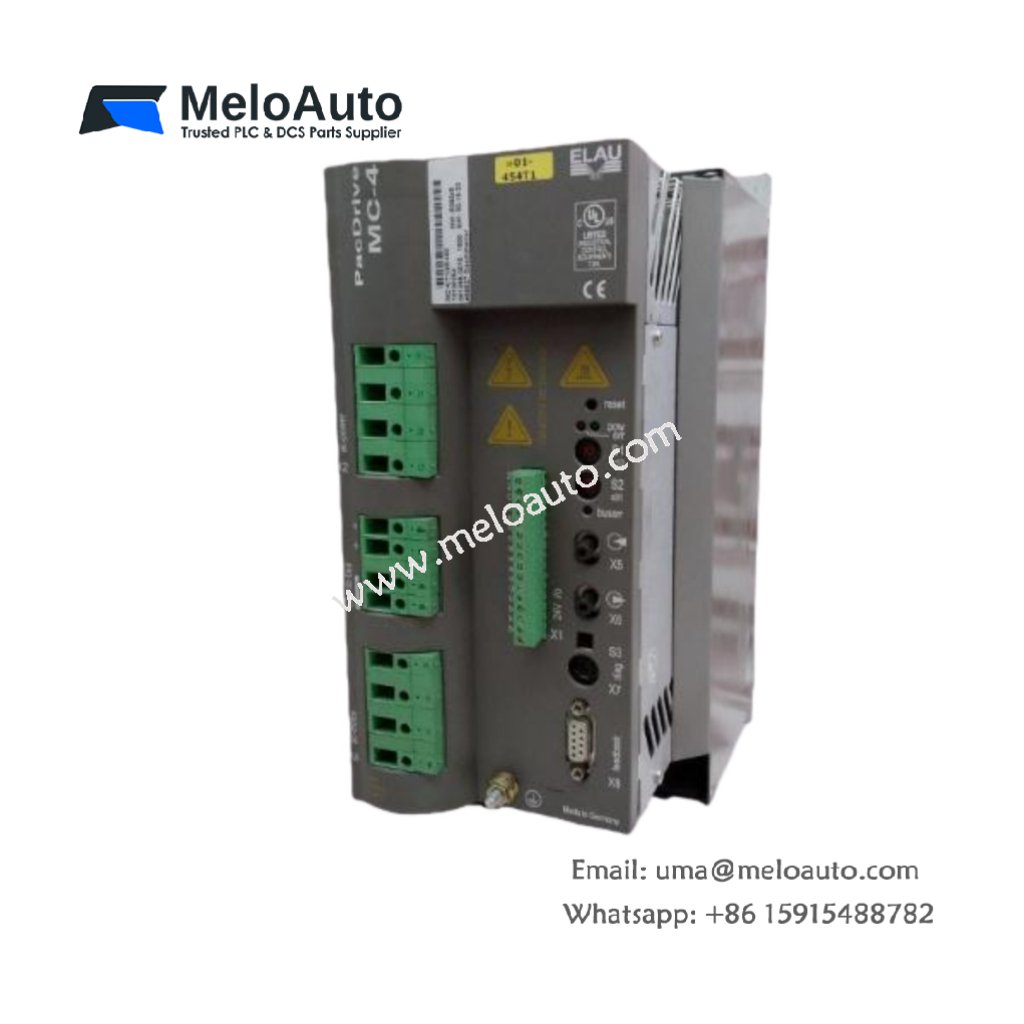

Schneider MC-4/11/22-400 Servo Controller

Overview

The Schneider MC-4/11/22-400 is a high-performance servo controller designed for precise motion control in industrial automation systems. It ensures accurate position and speed control by integrating advanced algorithms. This controller supports multiple feedback mechanisms and provides reliable control over servo motors in a wide range of applications.

Key Features

High Precision Control: The Schneider MC-4/11/22-400 offers outstanding precision in motion control, ensuring accurate positioning and speed regulation.
Wide Voltage Range: Operating within a voltage range of 200-400 VDC, it suits various industrial environments.
Feedback Compatibility: Compatible with multiple feedback devices, such as incremental encoders and absolute encoders, for optimal performance.
Real-time Monitoring: Includes real-time monitoring for enhanced diagnostics and fine-tuning.
Flexible Integration: Easily integrates with Schneider Electric’s automation platforms, supporting both digital and analog inputs/outputs.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	MC-4/11/22-400
Product Category	Servo Controller
Voltage Range	200-400 VDC
Feedback Type	Incremental Encoders, Absolute Encoders
Control Algorithm	High Precision Motion Control
Input/Output	Digital and Analog I/O
Monitoring	Real-time Diagnostics
Mounting	Rack Mountable
Weight	1.85 kg (approx.)
Operating Temperature Range	0°C to 50°C
Storage Temperature Range	-20°C to 85°C
Protection Class	IP20
Bus Current Requirement	350 mA
Compatibility	Schneider Electric Automation Platforms
Feedback Resolution	Up to 16-bit

Performance & Application

The Schneider MC-4/11/22-400 servo controller is optimized for industries requiring high-speed, high-precision motion control. It can operate within an ambient temperature range of 0°C to 50°C, ensuring reliable performance in standard environments. With feedback compatibility and advanced control algorithms, this controller guarantees smooth motion even in demanding applications.

Designed for rack mounting, the controller fits easily into existing automation systems. Its IP20 protection class safeguards the controller from dust and other solid contaminants, while the wide voltage range makes it adaptable to various system requirements.

Integration & Connectivity

This servo controller integrates seamlessly with Schneider Electric’s automation platforms. It supports both digital and analog I/O, providing flexibility for diverse applications. The real-time diagnostics feature allows operators to monitor system health and make adjustments as needed, ensuring optimal performance.

Conclusion

The Schneider MC-4/11/22-400 is an efficient and reliable servo controller designed for high-precision motion control. Its flexibility, real-time diagnostics, and compatibility with Schneider Electric platforms make it ideal for industrial automation tasks requiring accurate motion control.
