Schneider LXM15MD28N4 Motion Servo Drive

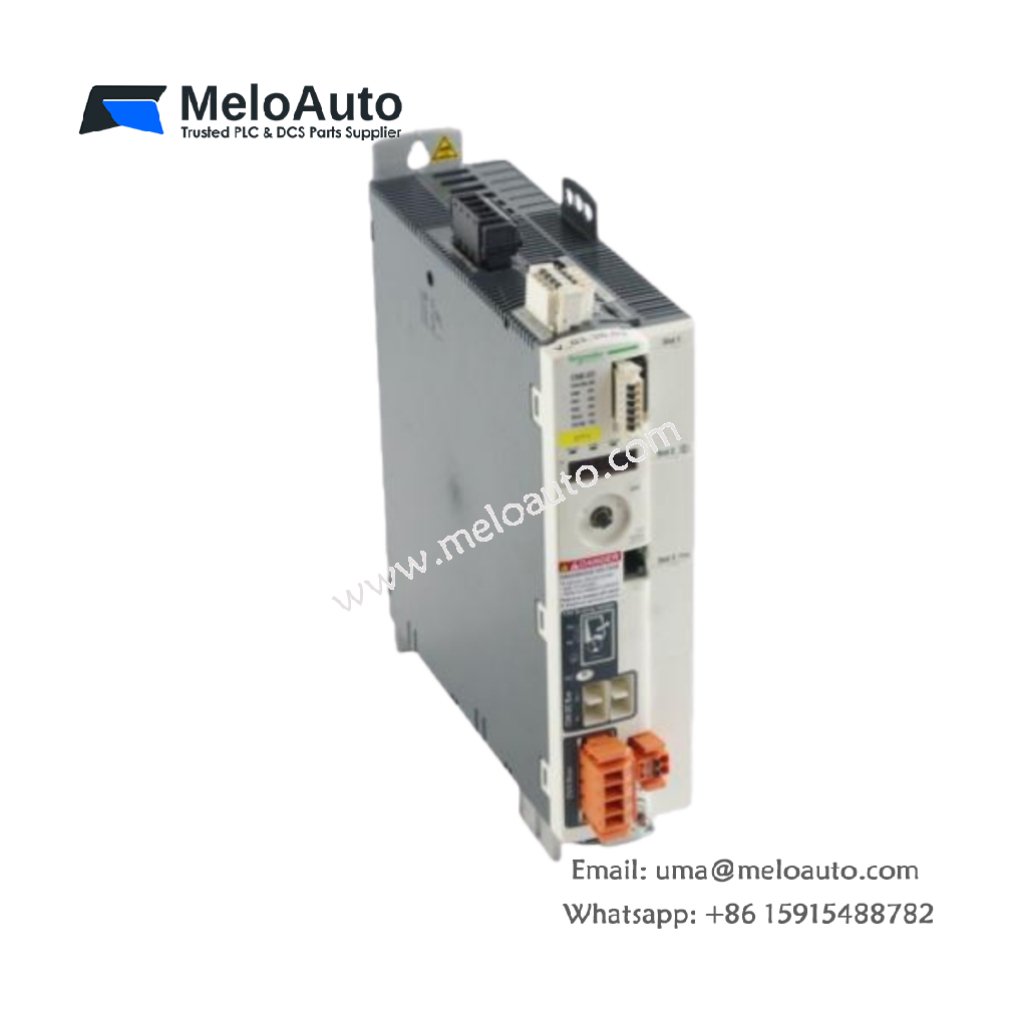

Overview of the Schneider LXM15MD28N4 Motion Servo Drive

The Schneider LXM15MD28N4 motion servo drive, part of the Lexium 15 series, is engineered for precision and reliable performance in industrial automation systems. It efficiently manages motion control tasks, making it ideal for various applications in manufacturing and automation. With 10 A continuous output current and a 28 A peak output current, this drive delivers robust performance to meet demanding requirements.

Thanks to its wide power supply voltage range of 208 V to 480 V and an integrated EMC filter, the LXM15MD28N4 excels in diverse industrial environments. It operates smoothly at a switching frequency of 8 kHz, ensuring fast and accurate motion control.

Key Features and Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Motion Servo Drive
Product Line	Lexium 15
Part Number	LXM15MD28N4
Power Supply Voltage	208…480 V (-10%…+10%)
Power Supply Frequency	50/60 Hz (±5%)
Power Supply Frequency Limits	47.5…63 Hz
Network Phases	Three-phase
Nominal Power	5.7 kW (three-phase)
Continuous Output Current	10 A (three-phase)
Transient RMS Output Current	20 A for 5 s (three-phase)
Peak Output Current	28 A (three-phase)
Line Current	12.6 A at 480 V
	9.7 A at 208 V
Apparent Power	7 kVA
Power Supply Voltage Limits	187.2 V to 528 V
Switching Frequency	8 kHz
EMC Filter	Integrated

Key Benefits

High Power Output: With a nominal power of 5.7 kW and a peak current capability of 28 A, the LXM15MD28N4 handles a wide range of demanding motion control tasks.
Flexible Voltage Range: This drive is compatible with voltages from 208 V to 480 V, offering versatile installation options.
Enhanced Efficiency: The 8 kHz switching frequency ensures smooth operation, optimizing performance for fast and precise motion control.
EMC Compliance: The integrated EMC filter minimizes electromagnetic interference, ensuring reliable performance in sensitive environments.
Reliable in Varying Conditions: With a power supply frequency range of 47.5 to 63 Hz, the LXM15MD28N4 adapts to a wide variety of systems, ensuring consistent operation.

Description

The Schneider LXM15MD28N4 is specifically designed to deliver consistent performance in motion control applications. With its 1056 KB RAM and efficient power output, it ensures smooth operation even under heavy loads. Additionally, its flexibility in voltage range allows it to operate seamlessly in multiple power configurations.

In terms of durability, this drive offers outstanding temperature resistance, handling operational temperatures between 0°C and 60°C and storage conditions from -40°C to 85°C. It can easily withstand harsh industrial environments, ensuring long-lasting reliability.

The drive’s wide voltage tolerance (from 187.2 V to 528 V) further enhances its adaptability to varying electrical systems. The integration of an EMC filter ensures that the LXM15MD28N4 complies with electromagnetic standards, reducing interference and protecting connected equipment.

Enhanced Features

Wide Input Voltage Range: The LXM15MD28N4 supports a voltage range from 208 V to 480 V, offering flexibility in diverse industrial settings.
Quick Response Time: With fast switching frequencies (up to 8 kHz), the drive provides precise motion control.
High Durability: Designed to withstand wide temperature fluctuations and environmental challenges, the LXM15MD28N4 maintains high performance.
