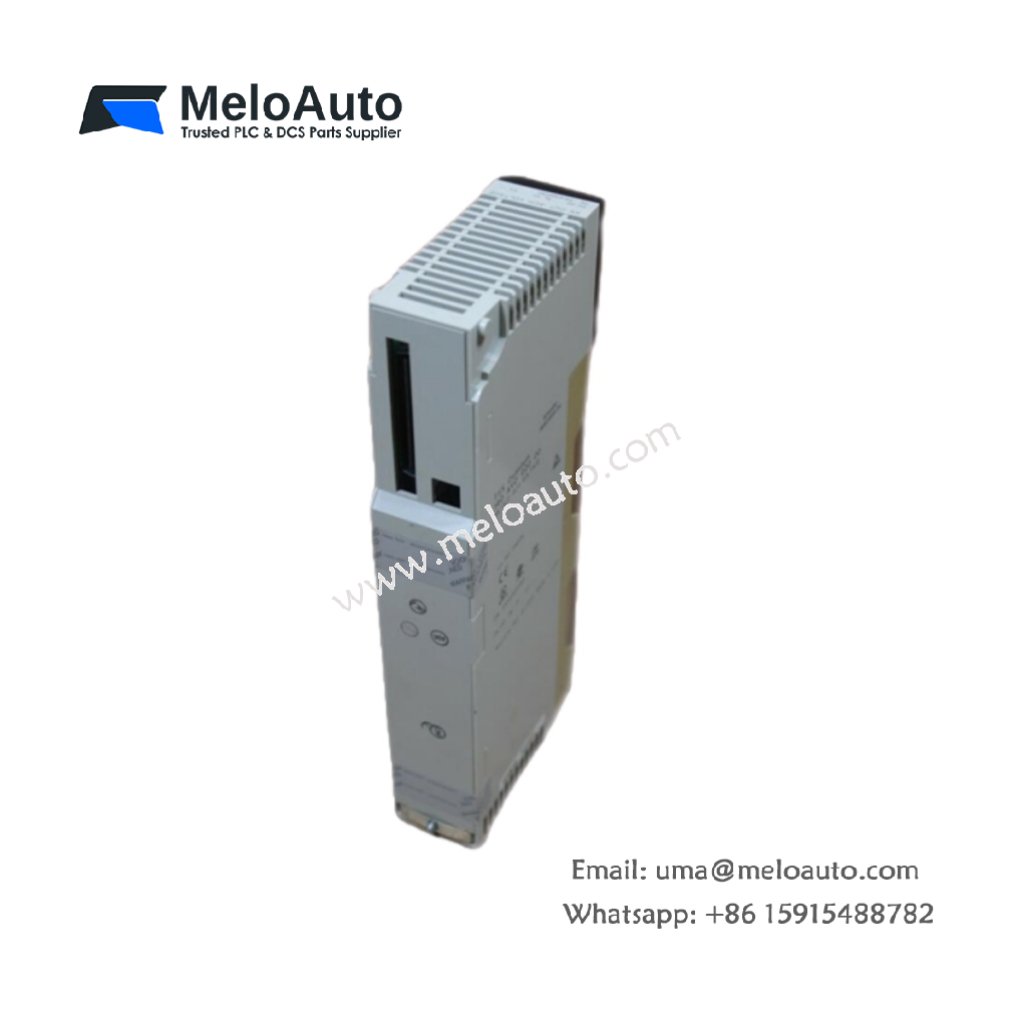

Schneider 140AVO02000 Analog Output Module

Overview of the Schneider 140AVO02000 Analog Output Module

The Schneider 140AVO02000 is a high-performance analog output module designed for the Modicon Quantum automation platform. This module provides exceptional accuracy and versatility, supporting four analog outputs with a 12-bit resolution. It ensures precise control over voltage and current, making it ideal for complex automation systems.

Supporting a variety of output ranges, the 140AVO02000 offers voltage options, ensuring compatibility with different system requirements. Additionally, the module delivers a stable output current range of -10 to 10 mA, with a maximum source resistance of 0.1 Ohm. The module features a highly accurate resolution with minimal drift, even in varying temperature conditions.

Key Features and Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Analog Output Module
Product Line	Modicon Quantum
Part Number	140AVO02000
Analog Output Number	4
Addressing Requirement	4 output words
Analog Output Range	+/- 10 V (>= 1000 Ohm)
	+/- 5 V (>= 500 Ohm)
	0…10 V (>= 1000 Ohm)
	0…5 V (>= 500 Ohm)
Analog Output Resolution	12 bits
Analog Output Current	-10 to 10 mA
Source Resistance	0.1 Ohm
Maximum Cable Distance	1312.34 ft (400 m)
Accuracy (Full Scale @ 77°F/25°C)	+/- 0.15%
Linearity	+/- 1 LSB
Accuracy Drift (Temperature)	0.003%/°C
	0.004%/°C
	0.005%/°C
	0.007%/°C
Channel Isolation	500 V for 1 minute (47…63 Hz AC)
Bus Isolation	780 V for 1 minute AC
Update Time	3 ms
Setting Time	700 µs to +/- 0.1% of final value
Bus Current Requirement	700 mA
Maximum Power Dissipation	4.5 W
Associated Fuse Rating	0.063 mA 3 AG fast blow 250 V
Marking	CE
Local Signalling	1 LED (green)

Description

The Schneider 140AVO02000 Analog Output Module is a vital component within the Modicon Quantum automation platform, delivering high-precision analog output for a wide range of industrial applications. With four output channels, this module offers various voltage ranges, including +/- 10 V, +/- 5 V, 0…10 V, and 0…5 V, each offering different load resistance options. This flexibility makes it suitable for various control systems requiring precise analog outputs.

Operating with a 12-bit resolution, the 140AVO02000 provides fine control over output values, ensuring accurate and stable performance. It also features excellent temperature stability, with minimal accuracy drift, ensuring reliable long-term operation even in fluctuating temperatures. The module can handle a maximum cable distance of 1312.34 ft (400 m), making it ideal for larger systems with extended wiring requirements.

The module’s isolation capabilities further enhance its reliability. It provides 500 V isolation between channels and 780 V isolation between the channels and the bus, ensuring secure and stable operation in industrial environments. With a fast update time of 3 ms and setting time of 700 µs, the 140AVO02000 ensures high-speed performance in real-time control systems.

Designed for industrial-grade performance, the 140AVO02000 is equipped with a green LED for local communication status indication. It also adheres to the CE marking, ensuring compliance with international safety standards.

Key Benefits

Precise Control: Offers 12-bit resolution and four versatile output channels.
Temperature Stability: Low accuracy drift ensures reliable performance even in varying temperature conditions.
High Isolation: Provides 500 V isolation between channels and 780 V isolation between channels and bus.
Fast Response: With an update time of 3 ms, it meets the needs of real-time industrial systems.
Ease of Integration: Compatible with Modicon Quantum platform, offering easy integration into larger automation systems.
