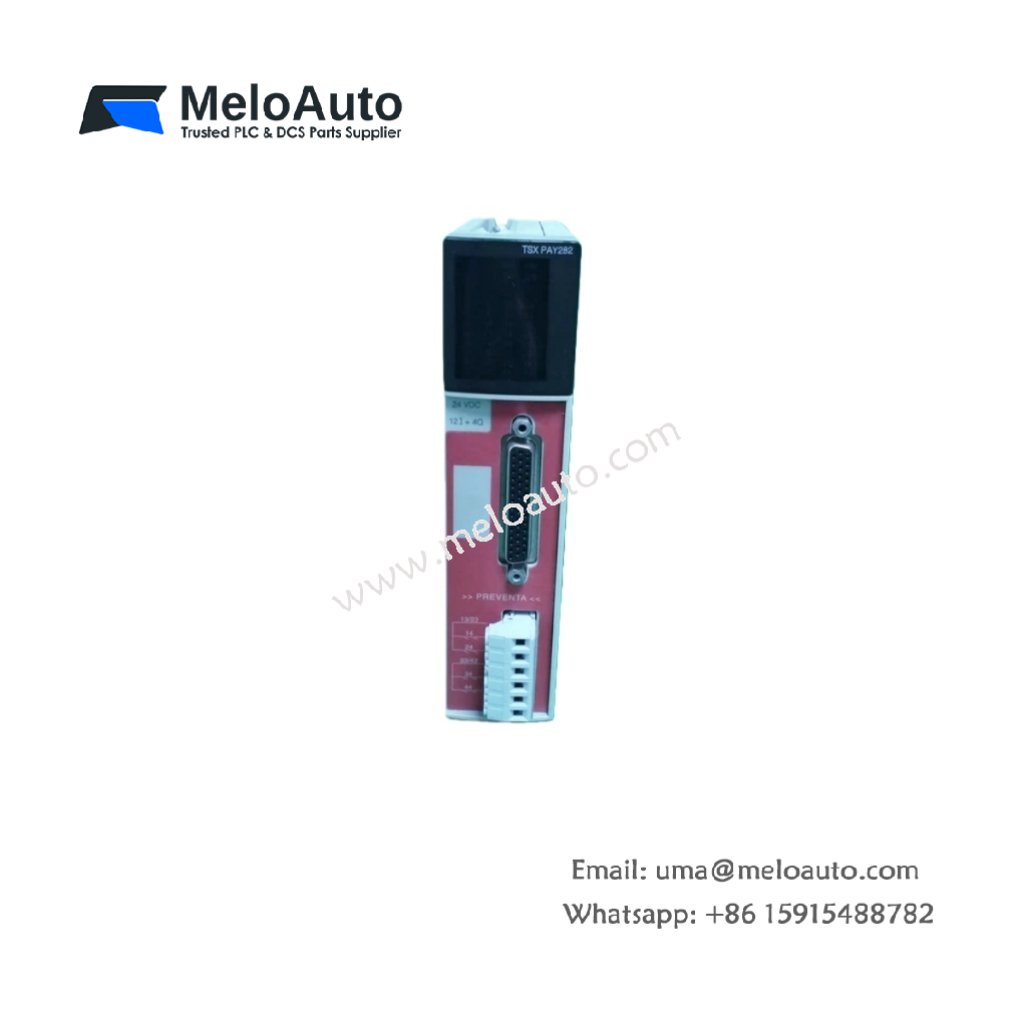

Schneider Electric TSXPAY282 Preventa Safety Module

The Schneider Electric TSXPAY282 is a versatile and reliable safety module designed to enhance the safety of your automation systems. Integrated into the Modicon Premium platform, this module is ideal for applications requiring safety-related control, such as emergency stop monitoring and feedback loop validation. Operating at a rated supply voltage of 24 V DC, the TSXPAY282 ensures efficient and safe operations in high-integrity safety environments.

Key Features and Benefits

Designed for high-integrity safety applications
Supports 24 discrete inputs and 4 safety relay outputs
Quick response time of less than 12 ms
Offers comprehensive isolation ratings for enhanced protection
Includes 28 diagnostic LEDs for real-time system monitoring

Technical Specifications

Parameter	Details
Product Type	Preventa safety module
Rated Supply Voltage	24 V DC
Voltage Range	19.2 to 30 V DC
Power Dissipation	< 5 W
Input Types	Emergency stop or limit switch inputs (12 channels), feedback loop input, reset pushbutton input, monitoring input, double or single contact selection input
Input Logic	Positive (IEC1131 Type 1)
Output Types	4 NO safety relay outputs (gold-plated, volt-free)
Output Voltage Range	17 to 127 V DC / 19 to 250 V AC
Output Power Ratings	60 W (DC-13, 24V), 120 VA (AC-15, 48V), 280 VA (AC-15, 110V), 550 VA (AC-15, 220V)
Conventional Thermal Current	2.5 A
Minimum Output Current	30 mA
Response Time	< 12 ms
Isolation Ratings	Input to earth: 500 Vrms, Output to earth: 1500 Vrms, Internal isolation: 4000 V
Local Signaling	28 diagnostic LEDs
Electrical Connections	Removable screw terminal block (6 pins), SUB-D 44-pin connector for safety system interface
Cable Cross Section	0.2 to 2.5 mm² (without cable end), 1.5 mm² (with cable end)
Current Consumption	< 150 mA at 5 V DC / 200 mA at 24 V DC
Module Format	Standard single-slot
Weight	0.49 kg
Operating Temperature	0 to 40°C (without fan), 0 to 60°C (with fan module)
Storage Temperature	-25 to 70°C
Protection Class	IP20
Compliance Standards	ISO 13849-1 Category 4, IEC 61508 SIL 3, EN 954, EN/IEC 60204-1, EN/IEC 61131-2, UL 508, CSA C22.2
Certifications	UL, CSA, BG

Application Areas

The Schneider Electric TSXPAY282 safety module is designed for use in automation systems that require high levels of safety and reliability. Its quick response time, comprehensive input and output capabilities, and strong isolation ratings make it ideal for industries such as manufacturing, processing, and robotics. This module ensures that your system is compliant with the highest safety standards, ensuring protection for both personnel and equipment.

Manufacturer Overview

Schneider Electric is a global leader in energy management and automation. The TSXPAY282 module reflects the company’s commitment to providing cutting-edge, high-performance safety solutions that meet industry standards and regulations.
