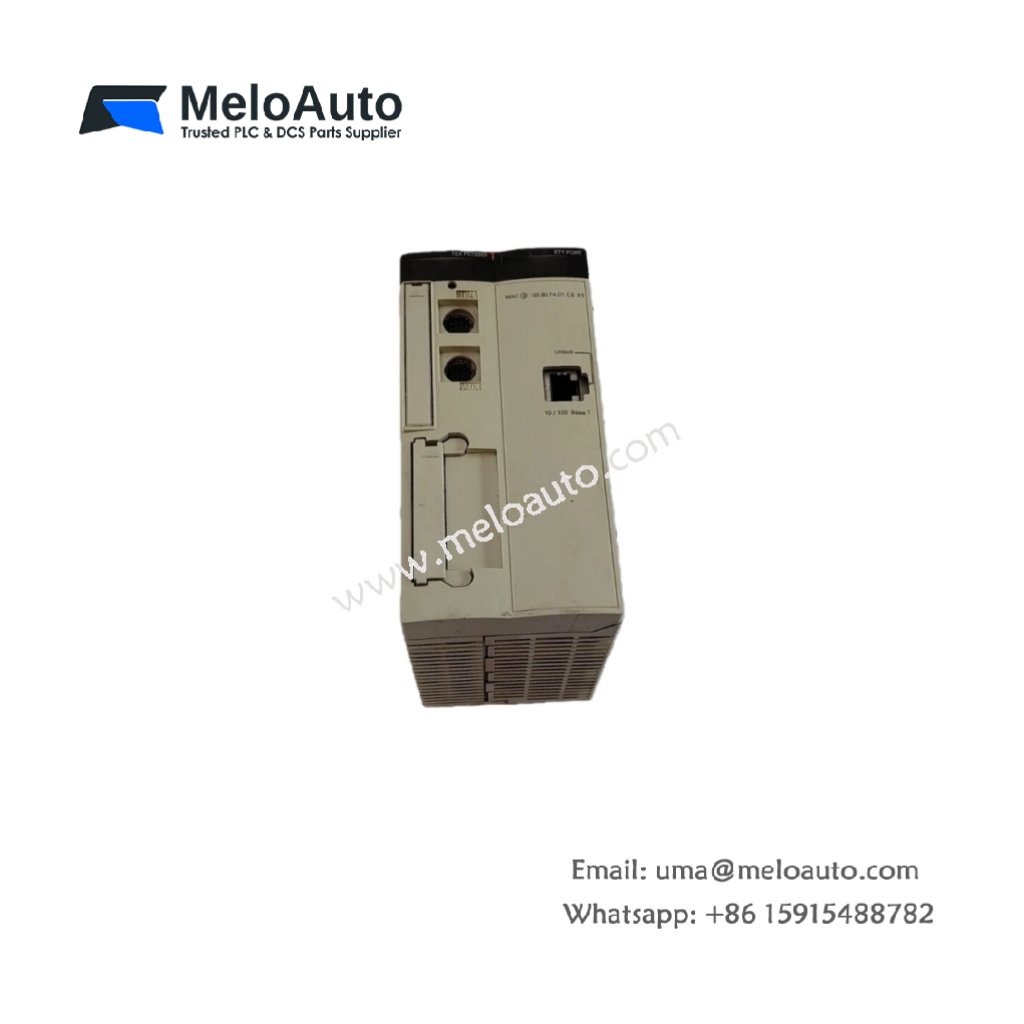

Schneider Electric TSXP572623M

Powerful Processing for Complex Automation Tasks

The TSXP572623M delivers robust control capabilities within the TSX Micro PLC series from Schneider Electric. This compact unit manages up to thirty simple process control loops with precision and reliability. Furthermore, it supports extensive system expansion for growing automation requirements.

Extensive Memory and Flexible Storage Configuration

This Schneider Electric PLC features 48 Kwords of internal RAM for program and data storage. Adding an optional PCMCIA memory card significantly expands capacity to 160 Kwords for programs. Moreover, the card provides substantial additional data storage space up to 2688 Kwords for logging and recipes.

Scalable I/O Architecture for System Growth

The TSXP572623M processor supports a discrete I/O capacity of up to 1024 points across the system. It also accommodates up to eighty analog I/O points for precise measurement and control applications. This scalability allows the system to evolve alongside your production needs without a complete controller replacement.

Comprehensive Technical Specifications and Capacities

Below are the detailed technical parameters for the Schneider Electric TSXP572623M programmable controller.

Parameter	Specification
Manufacturer	Schneider Electric
Product Line	TSX Micro PLC Series
Model Number	TSXP572623M
Unit Weight	3.00 lbs (1.36 kg)
EAN Barcode	3595862058469
Process Control Loops	Up to 30 Simple Loops
Internal RAM (without card)	48 Kwords Program & Data
Internal RAM (with card)	48 Kwords Data
PCMCIA Card Capacity	160 Kwords Program / 2688 Kwords Data
Max Supported Racks	Up to 16 Racks
Discrete I/O Capacity	1024 I/O Points
Analog I/O Capacity	80 I/O Points
Reset Function	Cold Start Initiation Button

Direct System Control and Initialization Features

A dedicated RESET button on the unit initiates a complete cold start of the PLC when pressed. This function provides a straightforward method for system recovery or initialization after a major change. Consequently, technicians can manage the controller’s operational state quickly and effectively on the factory floor.

Ideal for Mid-Range, Process-Intensive Applications

The TSXP572623M excels in applications requiring both discrete control and process loop management. Typical uses include batch processing, small-scale chemical systems, and coordinated multi-machine cells. Its balanced architecture handles logic sequencing and analog regulation simultaneously within one cost-effective platform.

Building a Future-Proof Automation Foundation

Supporting up to sixteen expansion racks offers tremendous flexibility for system design. You can start with a compact configuration and add I/O modules as your project scope increases. Therefore, this Schneider Electric Micro PLC protects your investment by accommodating both current and future automation challenges.
