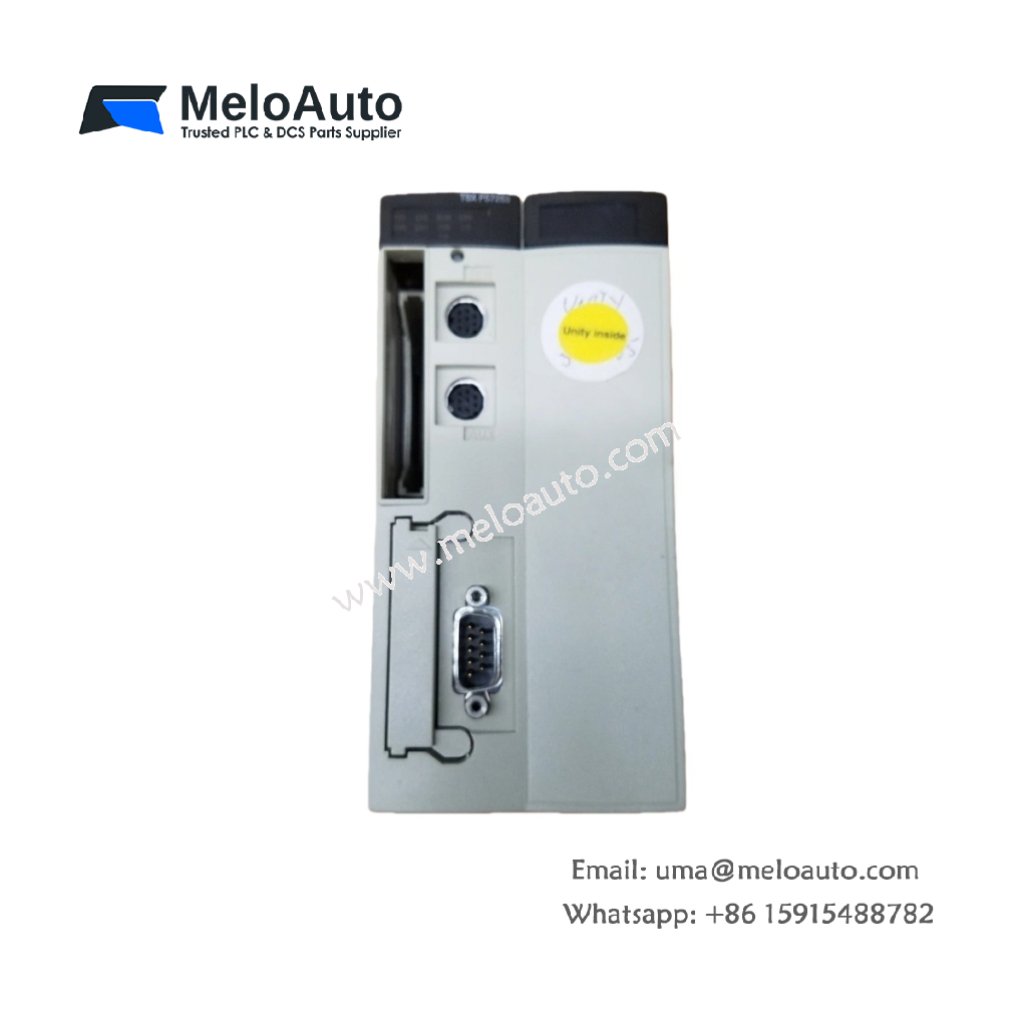

Schneider Electric TSXP57253M Double-Format PL7 Processor

The Schneider Electric TSXP57253M is a robust double-format PL7 processor designed for Modicon automation systems. This processor features enhanced processing capabilities, supporting both discrete and analog I/O, making it ideal for complex industrial applications. It offers seamless communication and reliable data handling through integrated features like CANopen, Fipio manager, and multiple fieldbus modules.

Key Features:

• Model: TSXP57253M
• Manufacturer: Schneider Electric
• Product Type: Double-Format PL7 Processor
• Processor Capacity:
  • Discrete I/O: 128
  • Analog I/O: 6496
  • Application-Specific Channels: 1024
  • Process Control Channels: 80
• Number of Racks: 16
• Number of Slots: 4/618 slots for flexible expansion
• Memory:
  • Internal RAM (with PCMClA card): 64 Kwords data
  • Internal RAM (without PCMClA card): 64 Kwords program and data
  • PCMClA card additional storage: 2688 Kwords
• Communication Ports:
  • Fipio Manager: Supports up to 127 agents
  • Serial Link: SUB-D 9 (Non-isolated)
  • Communication Modules: CANopen, 1 fieldbus module, 1 network module, 4 AS-Interface bus modules

Technical Specifications:

Description:

The Schneider Electric TSXP57253M double-format PL7 processor is engineered to deliver high performance and flexibility for industrial automation. It features an extensive range of I/O capacities, including 128 discrete I/O and 6496 analog I/O, allowing it to handle a wide variety of signals and data processing tasks.

This processor offers excellent expandability with 16 racks and 4/618 slots, making it versatile for large-scale automation systems. It also supports application-specific channels with a maximum of 1024 and 80 process control channels, ensuring it can meet the needs of demanding process control applications.

With a memory capacity of 64 Kwords (both program and data) in its internal RAM, the TSXP57253M can efficiently store and manage complex data. The PCMClA card further extends the memory capabilities, offering 2688 Kwords of additional data storage. The Fipio manager supports up to 127 agents, making it ideal for large, distributed control systems.

For seamless communication, this processor is equipped with multiple interfaces, including CANopen and AS-Interface bus modules, as well as Fipio Manager for managing distributed agents. The serial link (SUB-D 9, non-isolated) provides reliable communication with other devices in the system.

Whether in small setups or extensive control systems, the TSXP57253M offers flexibility, scalability, and high reliability for industrial automation.

Applications:

• Industrial automation systems requiring large-scale control and integration
• Process control with high I/O demands
• Distributed control systems with Fipio Manager support for agent management
• Applications using CANopen and AS-Interface protocols for communication
