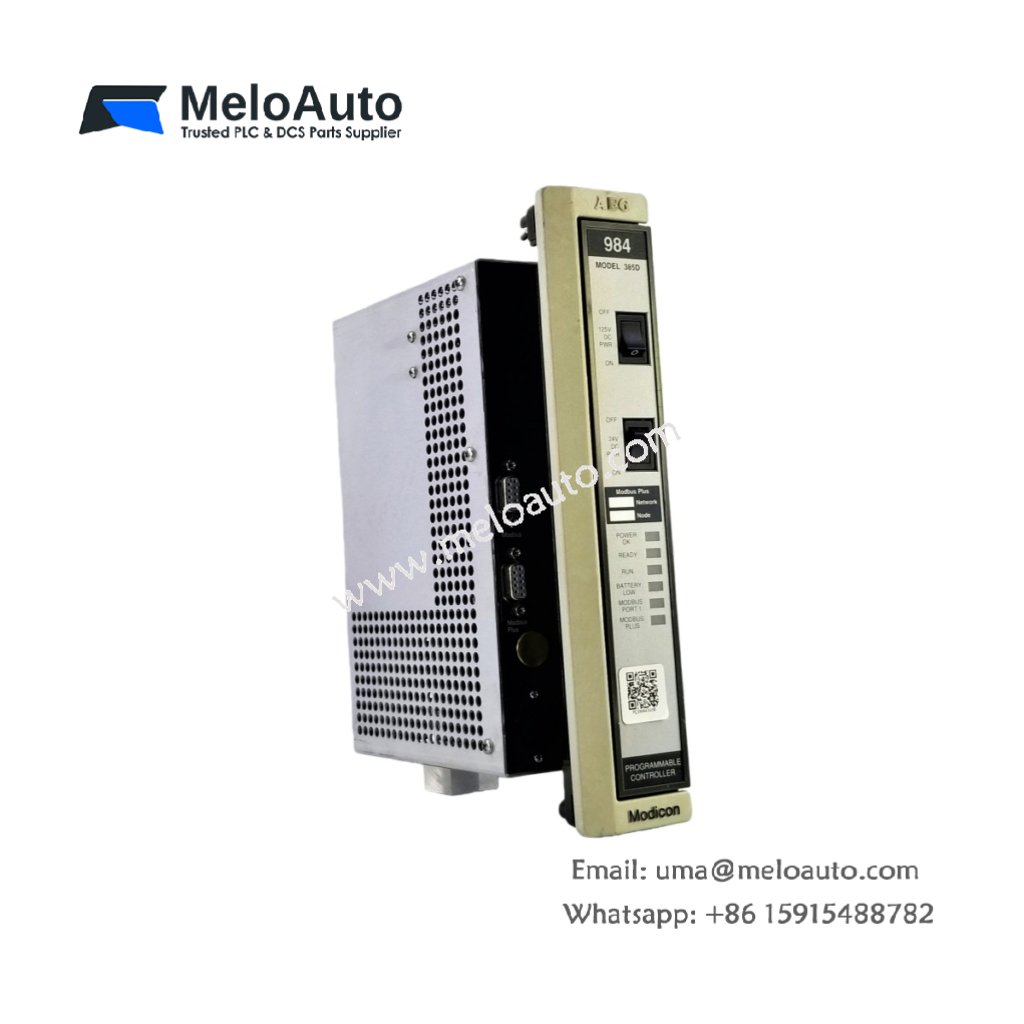

Schneider Electric PCD984385 Programmable Controller

Product Overview

The PCD984385 is a versatile programmable controller from Schneider Electric’s CPUs series. With a substantial data memory capacity of 12k words and user memory capacity of 16k words, this controller efficiently handles complex control tasks. It supports up to 512 discrete inputs and outputs, ensuring smooth integration into automation systems.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: Programmable Controller
• Product Line: CPUs
• Part Number: PCD984385
• Weight: 3.13 lbs (1.42 kg)
• Data Memory Capacity: 12k words
• User Memory Capacity: 16k words
• Mounting Method: Slot mount
• Number of Inputs/Outputs: 512 I/O
• Maximum Register I/O: 32 inputs/32 outputs
• Scan Time: Approximately 3 milliseconds
• Number of Local Drops: 1
• Number of Local Housings: 2
• Communication Ports: Modbus, Modbus Plus
• Power Supply Voltage: 125V DC or 24V DC
• I/O Power Capacity: 3 Amperes
• Ambient Operating Temperature: 0 to 60°C (non-condensing)
• Humidity Tolerance: 0 to 95% relative humidity (without condensation)

Detailed Description

The Schneider Electric PCD984385 is designed to handle demanding industrial applications with efficiency and reliability. Featuring 12k words of data memory and 16k words of user memory, it can manage large volumes of data and support sophisticated programming needs. Its slot-mount design allows for easy integration into existing systems, simplifying the installation process.

This programmable controller offers 512 discrete inputs and outputs, ensuring a seamless connection with connected devices. Additionally, it supports up to 32 inputs and 32 outputs for register-level operations, offering flexibility in data processing. The scan time of approximately 3 milliseconds ensures rapid processing and responsiveness, making it ideal for real-time automation.

Communication is facilitated through Modbus and Modbus Plus ports, enabling reliable data exchange over the network. The controller can be powered by either 125 V DC or 24 V DC, depending on the application’s power requirements. It is capable of managing an input/output power capacity of 3 Amperes.

Designed to perform in a variety of environments, the PCD984385 operates within an ambient temperature range of 0 to 60°C, and can tolerate humidity levels from 0 to 95% without condensation, making it suitable for demanding industrial conditions.

Applications

The PCD984385 is ideal for:

• Industrial Automation: Effective in controlling machinery and industrial processes.
• Data Acquisition Systems: Collecting and processing data from a wide range of sensors and devices.
• Process Control: Ensuring consistent and reliable operation in process systems.

The PCD984385 provides a robust, reliable solution for advanced automation and control applications.
