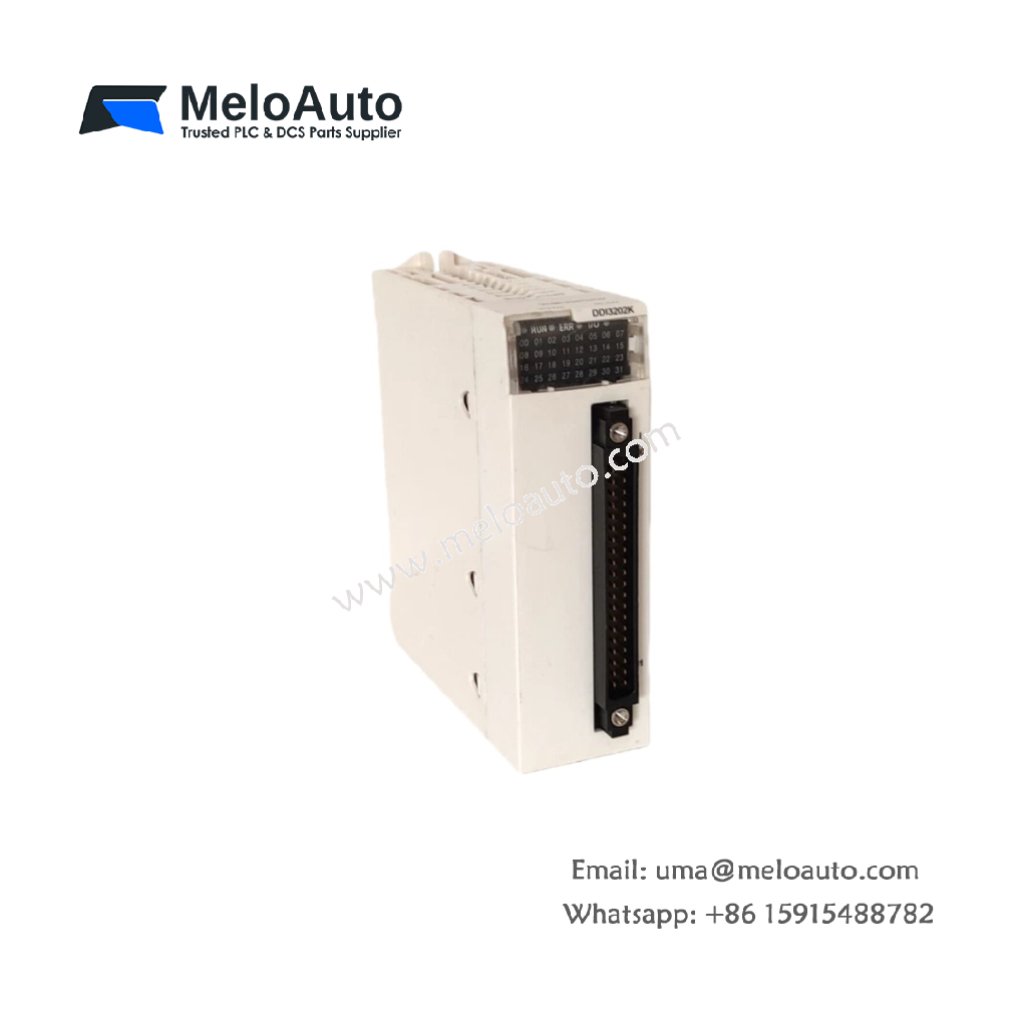

Schneider Electric BMXDDI3202K Discrete Input Module

The Schneider Electric BMXDDI3202K is a top-tier discrete input module designed to handle inputs efficiently in industrial automation systems. With 32 isolated inputs, it provides high accuracy and reliability for various sensor types. The module supports a sensor supply voltage range from 19 to 30 V DC, ensuring compatibility with a wide array of sensors and delivering optimal performance.

Key Features and Benefits

32 isolated discrete inputs for precise input management, ideal for complex automation systems.
Wide input voltage range (19 to 30 V DC) enables compatibility with diverse sensor types.
LED indicators offer clear, real-time status updates, improving system visibility and control.
Reverse polarity protection and external fuses protect the module, enhancing system reliability.
Compact design (0.40 kg) ensures easy installation even in limited space.

Technical Specifications

Parameter	Details
Product Type	Discrete Input Module
Manufacturer	Schneider Electric
Product Line	I/O Modules
Part Number	BMXDDI3202K
EAN	3595863910018
Weight	0.40 kg (0.88 lbs)
Sensor Supply Voltage	19 to 30 V DC
Protection Rating	IP20
Number of Inputs	32 Discrete Inputs
Input Voltage	24 V DC Positive
Input Current Rating	2.5 mA
Power Dissipation	3.9 W
Status Indicators	LED indicators
Types of Protection	0.5 A fast blow reverse polarity protection, 1 external fuse per channel group
Input Impedance	9,600 Ω
Ambient Operating Temperature	0 to 60°C (Non-condensing)
Storage Temperature	-40 to 85°C (Non-condensing)
DC Filtering Time	4 ms (typical), 7 ms (max)

Applications

The Schneider Electric BMXDDI3202K excels in various industrial automation applications. Its fast and reliable input handling makes it perfect for systems in manufacturing, process control, or machinery monitoring. By offering a broad sensor supply voltage range and robust protection features, it ensures compatibility with different sensors, reducing the risk of damage from voltage fluctuations. Consequently, industries such as robotics, energy, and manufacturing can rely on this module for seamless operations.

Manufacturer Overview

Schneider Electric is a global leader in energy management and automation. With a long track record of delivering innovative and reliable solutions, Schneider Electric continues to provide advanced products like the BMXDDI3202K. These solutions enhance operational efficiency and drive sustainability across industrial sectors worldwide.
