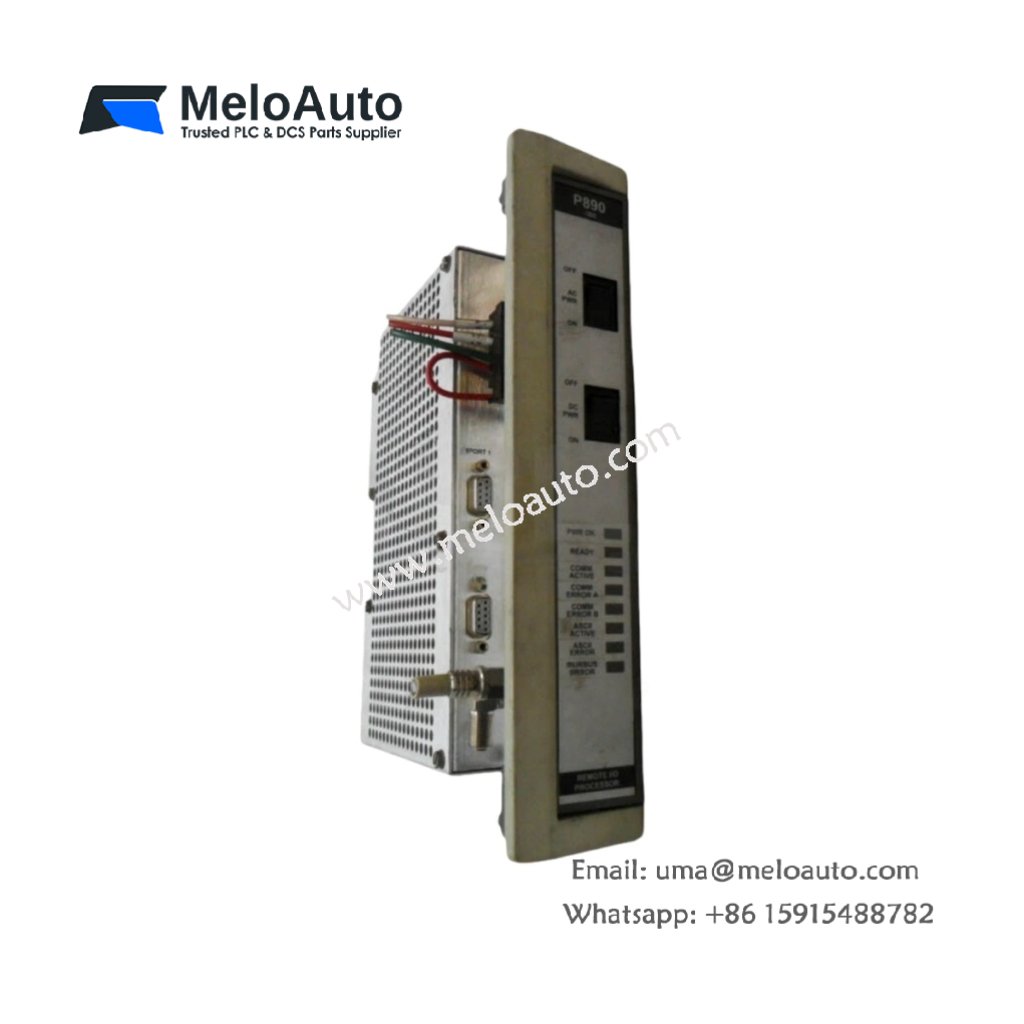

Schneider Electric ASP890001 RIO Interface Module

The Schneider Electric ASP890001 RIO interface module is designed for high-speed communication and efficient data transfer within industrial automation systems. As part of the Modicon 800 series, it supports both linear and dual redundant RIO topologies, ensuring versatility and reliability in your control systems. This module can handle up to 1024 input and 1024 output bits per drop, making it suitable for large-scale, complex automation applications.

Key Features and Benefits

Dual RIO topology support (linear and redundant) enhances system flexibility and reliability.
High-speed communication at 1.544 Mbits/s ensures quick data transfer across connected devices.
Programmable drop hold-up time ranging from 0.3 to 100 seconds offers customization for various applications.
Low power consumption of 1.85 A at +5 V reduces energy usage in operational environments.
LED indicators simplify real-time system diagnostics and status monitoring.
Easy configuration with DIP switches for setting RIO drop addresses.
Scalable I/O capacity with up to 1024 inputs and 1024 outputs per drop for large systems.

Technical Specifications

Parameter	Details
Product Type	RIO Interface Module
Manufacturer	Schneider Electric
Product Line	Modicon 800
Part Number	ASP890001
Weight	1.36 kg (3.00 lbs)
RIO Cable Ports	1 or 2 F connector ports (model dependent)
Supported RIO Topologies	Linear, Dual Redundant
Communication Speed	1.544 Mbits/s
Comm Link Time	< 1 ms for 256 I/O points
Drop Hold-Up Time	Programmable (0.3s to 100s, in 100 ms increments)
Power Consumption	1.85 A at +5 V
LED Indicators	Status for RIO interface and diagnostics
DIP Switch Configuration	For RIO drop address settings
Module Slot Size	1.5 slots in I/O housing
I/O Capacity per Drop	Up to 1024 input and 1024 output bits
Supported Controller Types	Compatible with 984 Programmable Controllers

Applications

The Schneider Electric ASP890001 is ideal for use in large-scale automation systems where high-speed communication and flexibility are essential. It can handle a wide range of applications, including process control, manufacturing, and industrial automation. With its scalability, the module supports systems with high input and output demands, ensuring seamless data transmission and enhanced control.

Manufacturer Overview

Schneider Electric is a global leader in energy management and automation, offering innovative solutions that enhance operational efficiency and sustainability. The Modicon 800 series, including the ASP890001 RIO interface module, is designed to deliver high-performance communication and control for industrial systems, ensuring that your automation processes run smoothly and efficiently.
