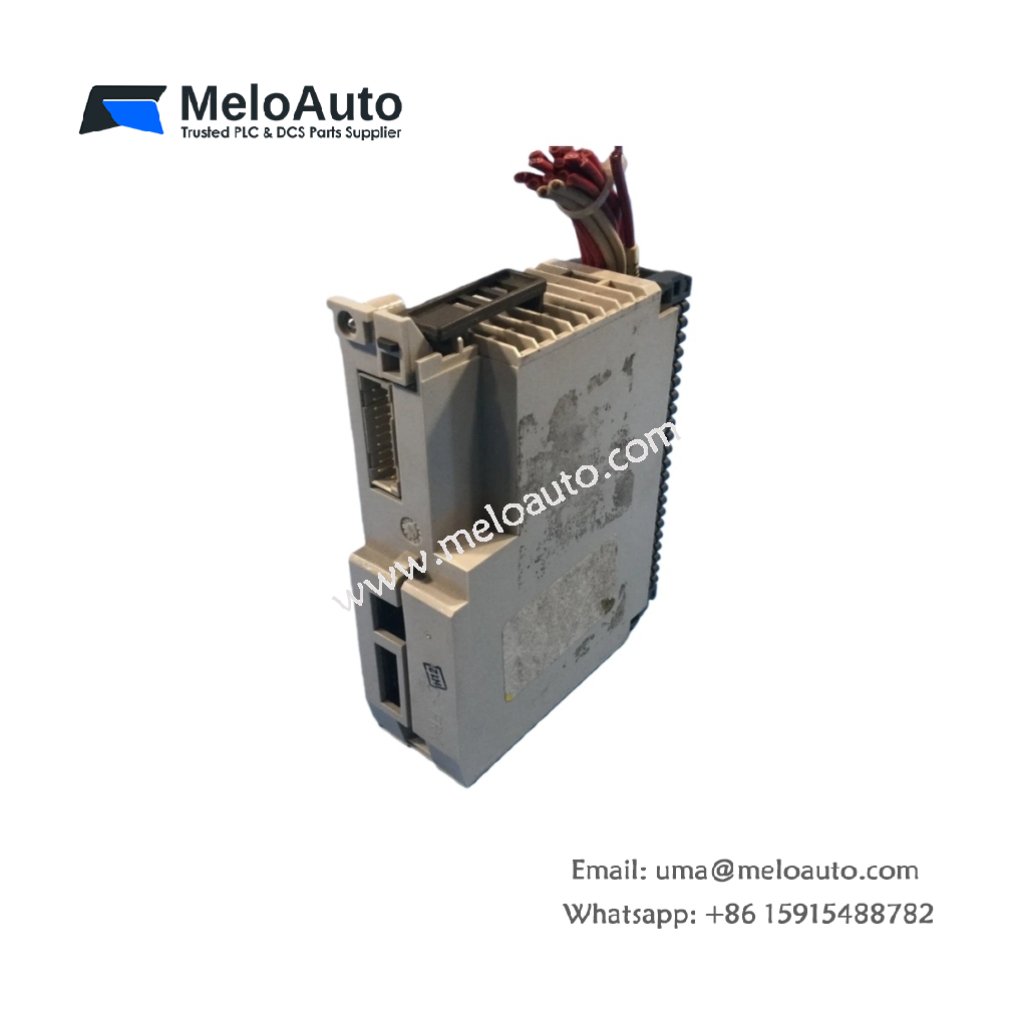

Schneider Electric ASBDEP218 – 16-Point 115 VAC Isolated Input Module

The Schneider Electric ASBDEP218 is a high-performance 16-point, 115 VAC isolated input module designed for industrial automation systems. This input module provides precise monitoring of up to 16 digital inputs, ensuring reliable and accurate signal processing in demanding environments.

Key Features

• Model: ASBDEP218
• Manufacturer: Schneider Electric
• Category: 16-Point Isolated Input Module
• Input Voltage: 115 VAC
• Number of Inputs: 16 isolated digital inputs
• Input Isolation: Provides electrical isolation between input and control circuits
• Ideal for: Automation systems requiring safe and reliable input signal monitoring

Technical Specifications

• Dimensions: 120mm x 85mm x 50mm
• Weight: 0.4 kg
• Input Voltage: 115 VAC
• Number of Inputs: 16 digital inputs (isolated)
• Input Type: Digital (On/Off)
• Isolation: Galvanic isolation between input and output for system protection
• Interface: Compatible with Schneider Electric PLC systems
• Mounting Type: DIN rail mountable
• Temperature Range: -10°C to +60°C
• Power Consumption: 4W

Benefits

The ASBDEP218 module ensures safe and accurate input monitoring by isolating the input signals from the control circuits. This isolation protects sensitive components from electrical surges, enhancing system reliability. With 16 inputs, it offers flexibility in monitoring multiple signals simultaneously, making it ideal for complex industrial automation processes.

Applications

• Industrial Automation: Perfect for use in control systems that require monitoring of digital inputs.
• Process Control: Ideal for applications that demand safe, isolated input signal processing.
• Schneider Electric PLCs: Seamlessly integrates with Schneider Electric PLC systems for robust automation control.
