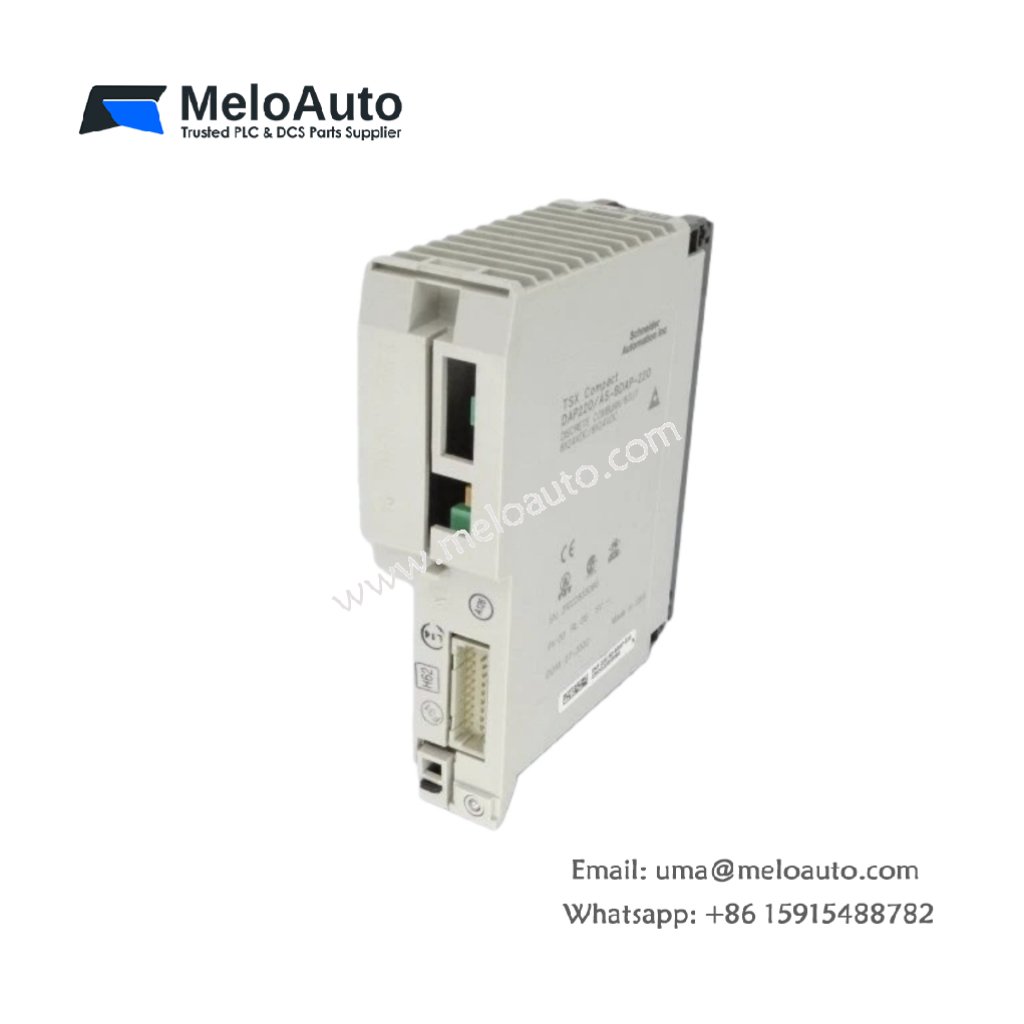

Schneider Electric ASBDAP220 Output Module

Product Overview

The ASBDAP220 is an advanced output module from Schneider Electric’s TSX Compact series. It is designed for precise control in industrial automation systems. With 8 inputs and 8 outputs, this module facilitates the seamless interaction between various sensors and control systems.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: Output Module
• Product Line: TSX Compact
• Part Number: ASBDAP220
• Input Voltage: 24 VDC
• Number of Inputs: 8
• Number of Outputs: 8
• Terminal Type: Screw-type terminal
• Dimensions: 90 mm x 100 mm x 120 mm
• Weight: 0.45 kg
• Operating Temperature Range: -10°C to +55°C
• Storage Temperature Range: -40°C to +85°C
• Mounting Type: DIN Rail

Detailed Description

The ASBDAP220 output module serves as a reliable interface for transferring signals between the control system and actuators. With 8 inputs and 8 outputs, it allows for efficient and precise control over various devices in your industrial setup. The module operates at a standard 24 VDC, making it compatible with most industrial systems.

Featuring screw-type terminals, it ensures secure and stable connections, minimizing the risk of loose wiring. The module’s compact dimensions of 90 mm x 100 mm x 120 mm and lightweight design (0.45 kg) allow for easy integration into control panels, optimizing space and functionality.

This device operates reliably in a wide range of temperatures, with an operating temperature range from -10°C to +55°C and a storage temperature range of -40°C to +85°C, making it suitable for diverse industrial environments. Its DIN rail mounting system ensures easy and efficient installation in control cabinets.

Applications

The ASBDAP220 is designed for use in various industrial automation applications, including:

• Process Control Systems: It handles the interface between controllers and actuators, enabling precise process control.
• Machine Automation: It provides control for inputs and outputs on machines, enhancing automation efficiency.
• Building Management Systems: It can manage inputs and outputs in HVAC systems, lighting, and other building systems.

This versatile module supports a range of applications, ensuring smooth and reliable operation in demanding industrial environments.

Technical Specifications
