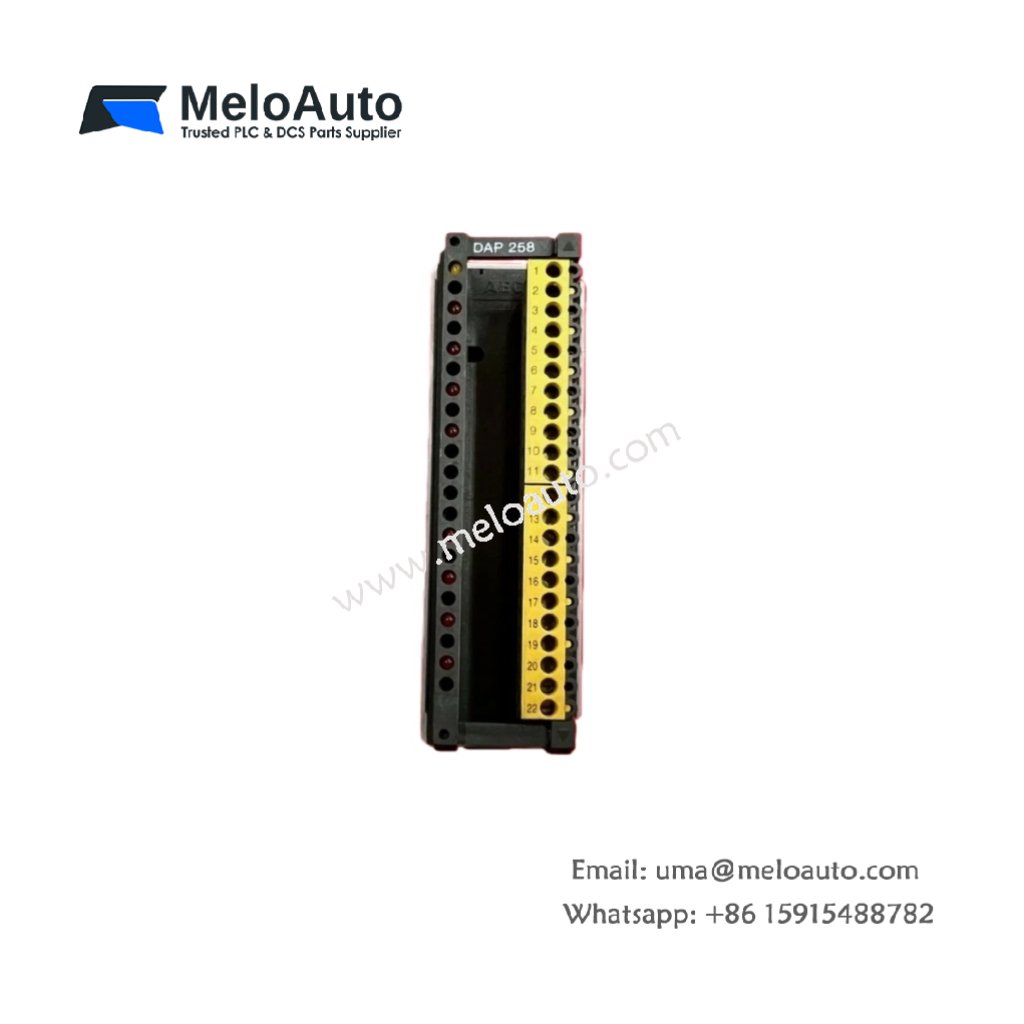

Schneider Electric AS-BDAP-258C Discrete Relay Output Module

The Schneider Electric AS-BDAP-258C is a robust discrete relay output module from the Modicon 984 series. It provides eight reliable outputs, making it ideal for control applications in industrial systems. This module can handle both DC and AC supply voltages, offering flexibility for a wide range of automation setups.

Key Features and Benefits

Versatile voltage range: Supports both DC and AC supply voltages, adapting to various system requirements.
Eight outputs: Provides multiple relay outputs for controlling various devices and processes.
Reliable protection: With an IP20 protection class and NEMA 1 enclosure, it is designed to work in non-hazardous indoor environments.
High operational stability: Designed to function effectively in ambient temperatures ranging from 0°C to 60°C.
Humidity tolerance: Capable of operating in up to 95% humidity (non-condensing), ensuring reliability even in damp conditions.
Altitude adaptability: Effective up to 1000 meters above sea level, making it suitable for diverse geographic locations.

Technical Specifications

Parameter	Details
Product Type	Discrete Relay Output Module
Manufacturer	Schneider Electric
Product Line	Modicon 984
Part Number	AS-BDAP-258C
Weight	4.54 kg (10.00 lbs)
Number of Outputs	8 Outputs
Supply Voltage	DC/AC
Protection Class	IP20
Enclosure Rating	NEMA 1
Cooling	Natural
Maximum Ambient Temperature	60°C (140°F)
Minimum Ambient Temperature	0°C (32°F)
Maximum Operating Humidity	95% (non-condensing)
Maximum Storage Humidity	95% (non-condensing)
Maximum Altitude	1000 meters (3280 feet) above sea level

Applications

The Schneider Electric AS-BDAP-258C module is a reliable solution for industrial automation systems requiring discrete relay outputs. It excels in non-hazardous, indoor environments, where temperature and humidity conditions might vary. This module can be used in process control, machinery control, and other industrial applications that demand high reliability and performance. Its compatibility with both DC and AC voltages enhances its flexibility for use in diverse system designs.

Manufacturer Overview

Schneider Electric is a global leader in energy management and automation solutions. The Modicon 984 series, including the AS-BDAP-258C module, is part of Schneider Electric’s extensive offering of high-performance automation products designed to meet the needs of modern industrial systems. Schneider Electric continues to provide innovative solutions that enhance operational efficiency and sustainability across industries.
