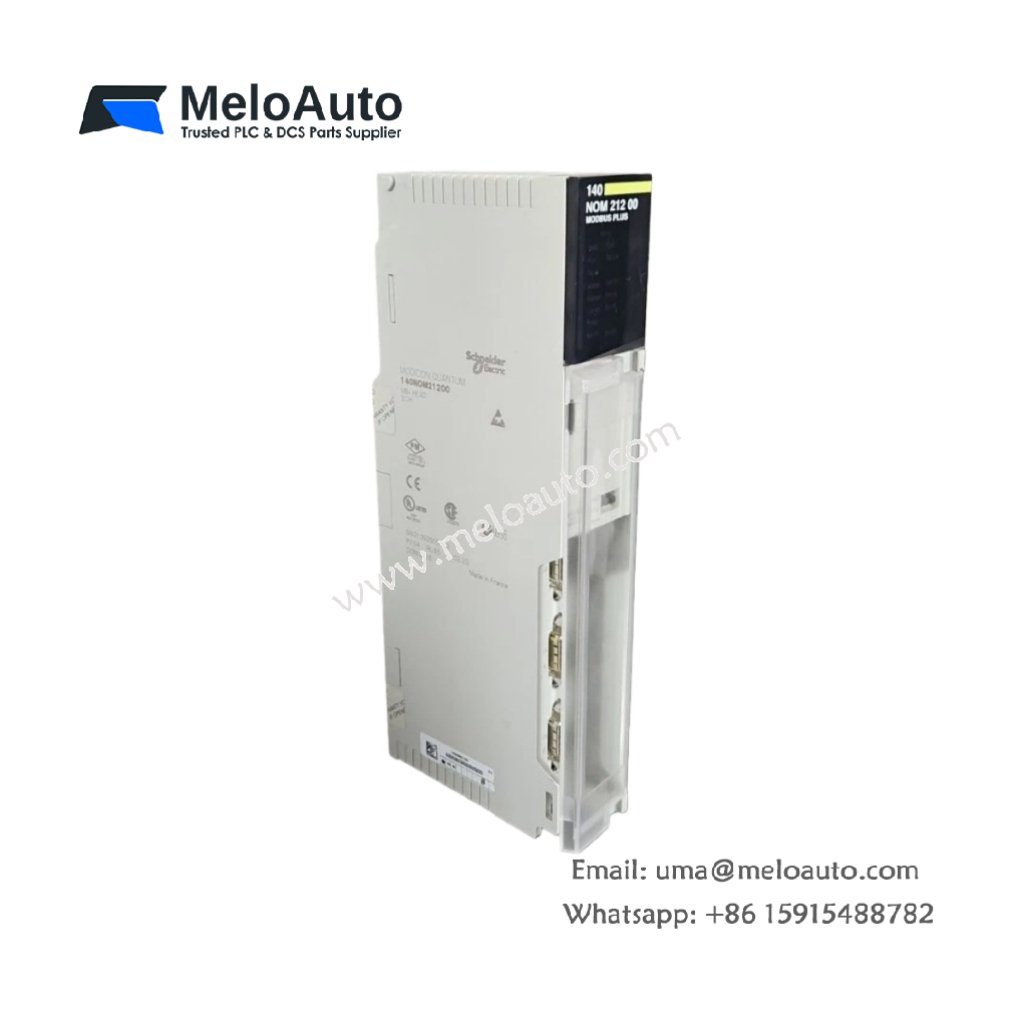

Schneider Electric 140NOM21200 Adapter: Key Features & Technical Specifications

The 140NOM21200 is an adapter designed for integration within Schneider Electric’s Modicon Quantum series. This device supports seamless communication in industrial automation systems by providing three communication ports and using the Modbus protocol. It operates at a data transmission rate of 1 Mbit/s, ensuring efficient and reliable data exchange.

Key Features of 140NOM21200

• Manufacturer: Schneider Electric
• Product Line: Modicon Quantum
• Part Number: 140NOM21200
• EAN: 3595861127272
• Product Type: Adapter
• Number of Ports: 3
• Communication Protocol: Modbus
• Transmission Rate: 1 Mbit/s
• I/O Words: 30I / 32O
• Power Dissipation: 4 W
• Bus Current Requirement: 780 mA
• Electrostatic Discharge Resistance: 4 kV / 8 kV
• Electromagnetic Field Resistance: 9.1 V/m
• Relative Humidity Tolerance: 95% without condensation
• Standards: CSA Certified

Detailed Technical Specifications

Description of 140NOM21200 Adapter

The 140NOM21200 from Schneider Electric serves as a highly reliable adapter within the Modicon Quantum series, designed to enhance connectivity and facilitate communication between various automation devices. Equipped with three communication ports, this adapter supports multiple device connections, ensuring efficient data transfer through its Modbus protocol.

At a transmission rate of 1 Mbit/s, the 140NOM21200 ensures that data flows seamlessly between connected devices, making it ideal for use in complex industrial automation systems. This adapter also supports 30 input words and 32 output words, giving it flexibility for a wide range of control and monitoring applications.

In terms of power, the 140NOM21200 operates with a low power dissipation of 4 watts and requires a bus current of 780 mA, making it energy-efficient while delivering reliable performance. It also features robust protection mechanisms, including resistance to electrostatic discharges of up to 4 kV and 8 kV, as well as resistance to electromagnetic fields of 9.1 V/m. These features help the device maintain reliable operation in challenging environments.

The 140NOM21200 adapter is suitable for use in environments with relative humidity levels up to 95%, provided there is no condensation. Its compliance with CSA standards further underscores its safety and reliability in industrial applications.

With its compact design and advanced features, the 140NOM21200 adapter is an excellent choice for integrating devices within Modicon Quantum automation systems, ensuring seamless communication and enhancing system performance.
