Schneider Electric 140CHS32000 Hot Standby Splitter Kit

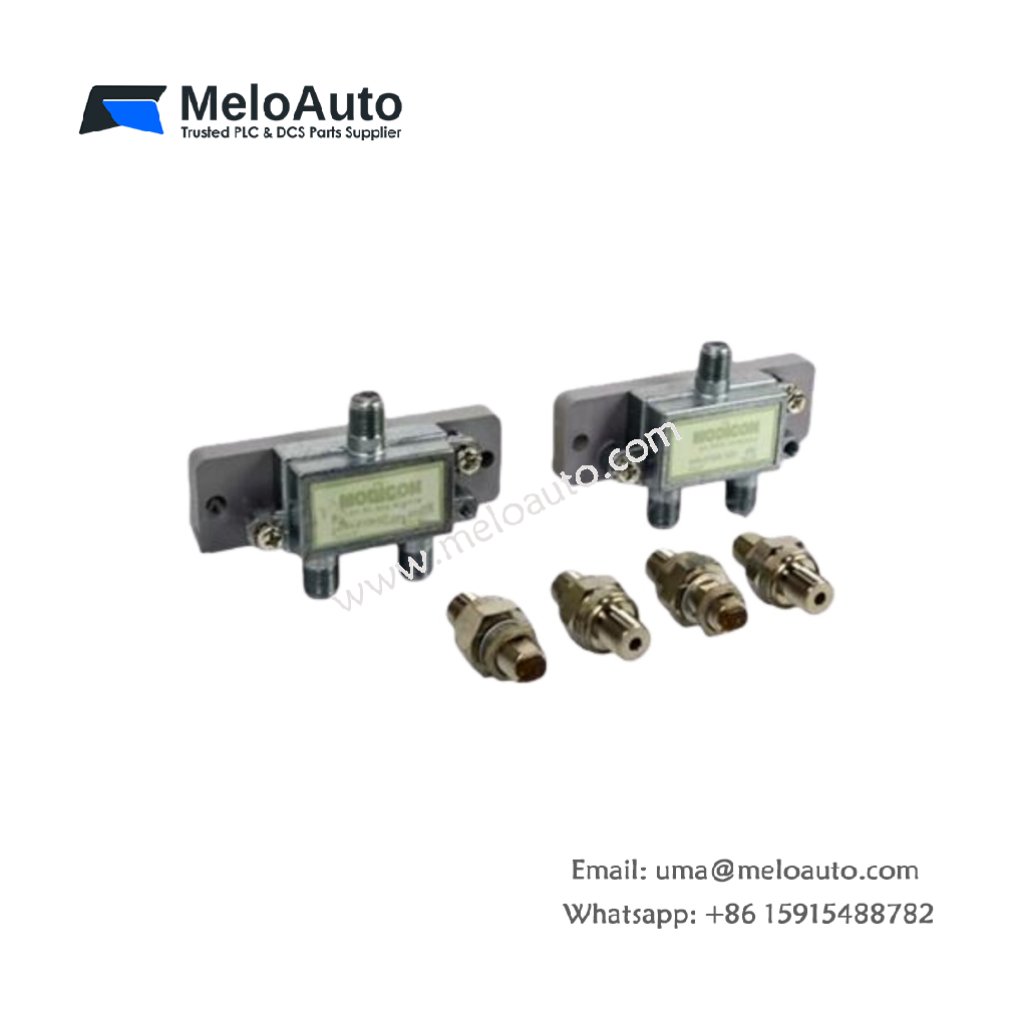

The 140CHS32000 is an essential component of Schneider Electric’s Modicon Quantum series. As a Hot Standby Splitter Kit, it is specifically engineered to manage coaxial cable termination, ensuring redundancy and stable performance in industrial applications. This module operates with a 24 V DC input voltage and supports high-frequency digital signals. Its flexible design makes it a reliable choice for various automation environments.

Key Features of the 140CHS32000

Manufacturer: Schneider Electric
Model: 140CHS32000
Product Line: Modicon Quantum
Product Type: Hot Standby Splitter Kit
Signal Type: Digital
Input Voltage: 24 V DC
Frequency Range: High Frequency
Cable Type: Coaxial
I/O Points: 8 Inputs / 8 Outputs
Termination Type: Coax Termination Kit
Compatibility: TSX Quantum
Redundancy: Hot Standby
Mounting: DIN Rail or Panel Mount
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: 0°C to 50°C (32°F to 122°F)
Max Operating Humidity: 80% RH (non-condensing)
Max Storage Humidity: 80% RH (non-condensing)
Weight: 0.94 lbs (0.43 kg)

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	140CHS32000
Product Line	Modicon Quantum
Product Type	Hot Standby Splitter Kit
Signal Type	Digital
Input Voltage	24 V DC
Frequency Range	High Frequency
Cable Type	Coaxial
I/O Points	8 Inputs / 8 Outputs
Termination Type	Coax Termination Kit
Compatibility	TSX Quantum
Redundancy	Hot Standby
Mounting	DIN Rail or Panel Mount
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	0°C to 50°C (32°F to 122°F)
Max Operating Humidity	80% RH (non-condensing)
Max Storage Humidity	80% RH (non-condensing)
Weight	0.94 lbs (0.43 kg)

Description

The 140CHS32000 from Schneider Electric is a highly efficient Hot Standby Splitter Kit within the Modicon Quantum series. It is specifically designed to handle coaxial cable connections while maintaining system redundancy. This ensures that your automation system can maintain high availability and reliability even in challenging environments.

First, the 140CHS32000 handles high-frequency digital signals, providing robust performance across a variety of applications. It supports 8 I/O points, consisting of 8 inputs and 8 outputs, allowing for seamless data transmission. Furthermore, it integrates easily with the TSX Quantum system, ensuring compatibility and simplifying setup.

The coax termination kit included with the module allows for smooth and secure cable connections. The 24 V DC input voltage makes it suitable for use in many industrial systems. In addition, the module provides flexibility in mounting, as it can be installed on either a DIN rail or directly onto panel mounts, offering options for both compact and expansive configurations.

Moreover, the 140CHS32000 operates within a temperature range of 0°C to 40°C, ensuring reliable performance in standard industrial environments. For storage, it can withstand temperatures from 0°C to 50°C, making it versatile for various operating conditions. The module is also resilient to humidity, withstanding up to 80% relative humidity without condensation, ensuring its integrity in humid environments.

Weighing just 0.94 lbs (0.43 kg), this module is lightweight and easy to integrate. All in all, the 140CHS32000 provides the redundancy, signal integrity, and flexibility required to meet the demands of modern industrial automation systems.
