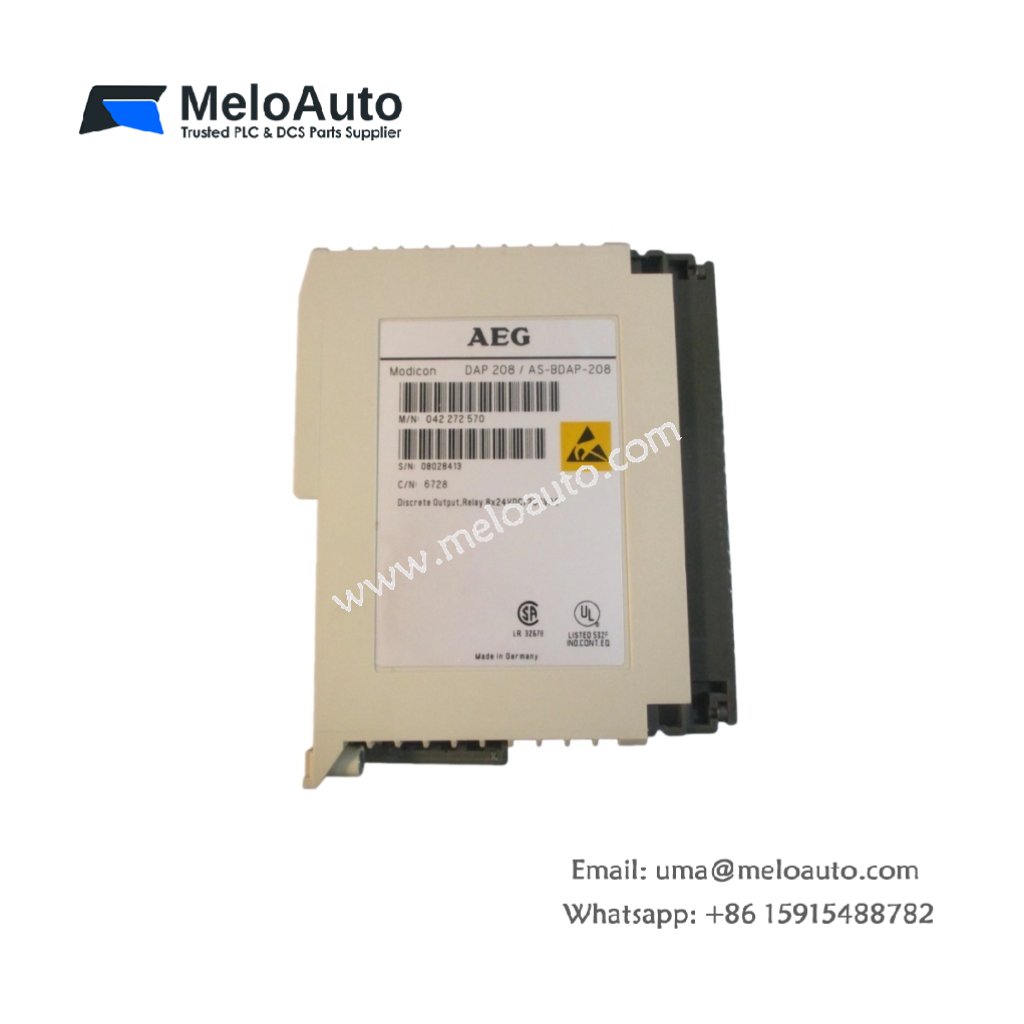

Schneider DAP 208 Discrete Output Relay

Overview

The Schneider DAP 208 is a reliable and compact discrete output relay designed for use in industrial automation applications. Part of Schneider Electric’s comprehensive I/O range, the DAP 208 provides efficient relay switching for controlling external devices such as motors, valves, and other actuators. This module is built for seamless integration into control systems, ensuring high performance in demanding environments.

Key Features

• Manufacturer: Schneider Electric
• Model: DAP 208
• Product Line: I/O Modules
• Category: Discrete Output Relay
• Type: Discrete Output
• Relay Type: Normally open (NO)
• Voltage Rating: 24 VDC
• Current Rating: 2A per channel
• Number of Output Channels: 8
• Mounting Type: Chassis-mounted
• Dimensions: 85mm x 100mm x 55mm
• Weight: 0.3 kg
• Temperature Range: 0°C to 60°C
• Certification: CE, UL listed

Technical Specifications

Description

The Schneider DAP 208 discrete output relay is designed to deliver reliable switching for various automation tasks. With 8 output channels, it supports up to 2A per channel, making it ideal for controlling multiple devices simultaneously. Operating at a 24 VDC voltage rating, the DAP 208 is compatible with a wide range of industrial equipment.

The module features normally open (NO) relays, ensuring that connected devices remain off until the relay is activated. This relay module is chassis-mounted, allowing for easy installation and integration into control panels. Its compact design, measuring 85mm x 100mm x 55mm, ensures that it fits easily within space-constrained environments.

The DAP 208 operates within a wide temperature range of 0°C to 60°C, ensuring stability and performance in demanding conditions. The module is also certified by CE and UL, which guarantees that it meets rigorous safety and quality standards.

Applications

The Schneider DAP 208 is ideal for a wide range of automation applications, including:

• Motor control systems
• Actuator and valve control
• Conveyor systems
• Packaging machines
• Material handling systems

This discrete output relay is also suitable for any application that requires reliable on/off switching of external devices.

Advantages

• Compact and Lightweight: Easy to integrate into space-limited systems.
• High Current Capacity: Handles up to 2A per channel for robust device control.
• Flexible Integration: Chassis-mountable for simple installation.
• Wide Operating Temperature Range: Operates efficiently in environments from 0°C to 60°C.
