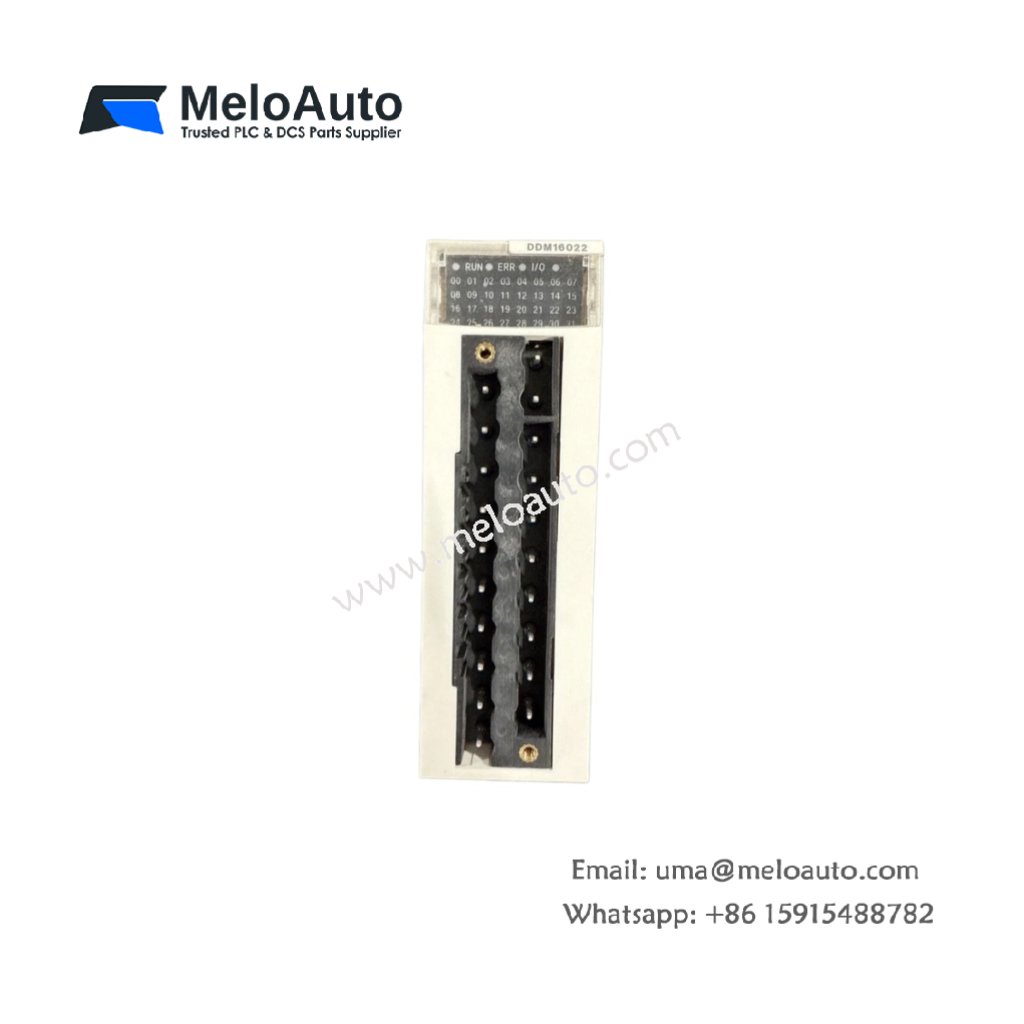

Schneider BMXDDM16022 Discrete Mixed I/O Module

The Schneider BMXDDM16022 Discrete Mixed I/O Module offers exceptional flexibility for industrial automation systems. It combines discrete inputs and outputs, making it ideal for applications that require both types of signals. This module enhances operational efficiency and supports seamless integration into control networks.

Key Features of the BMXDDM16022 Discrete Mixed I/O Module

The BMXDDM16022 delivers robust performance with 16 discrete inputs and 16 outputs. This ensures smooth data handling and versatility in diverse industrial settings.

Module Type: Discrete Mixed I/O Module
Manufacturer: Schneider Electric
Model: BMXDDM16022
Product Line: Modicon Series

Technical Specifications

The BMXDDM16022 is designed for high-performance automation tasks. Below, we highlight the key technical features that make this module suitable for industrial environments.

Parameter	Details
Input/Output Type	Mixed (Discrete Inputs and Outputs)
Discrete I/O Channels	16 inputs, 16 outputs
Voltage Rating	24V DC
Output Current Capacity	0.5 A per output
Response Time	5 ms
Communication Type	Modbus TCP/IP
Connection Type	Screw terminal
Mounting Type	DIN rail
Weight	0.3 kg (0.66 lbs)
Dimensions	90 mm x 120 mm x 70 mm
Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 70°C
Relative Humidity	10% to 95% without condensation for operation

Performance and Flexibility

The BMXDDM16022 module provides 16 discrete inputs and 16 outputs, allowing it to manage high-demand I/O tasks. It operates at a 24V DC voltage and can handle up to 0.5 A per output, ensuring reliable performance in demanding systems. Its fast response time of just 5 ms minimizes delays and ensures that data is processed quickly and accurately.

Moreover, the BMXDDM16022 seamlessly integrates into automation systems through Modbus TCP/IP communication. As a result, it enables reliable data exchange with other control devices, ensuring smooth network operation.

Mounting and Installation

Installation is straightforward with the BMXDDM16022, thanks to its DIN rail mounting design. The module’s compact size (90 mm x 120 mm x 70 mm) and lightweight build (0.3 kg) make it easy to fit into space-constrained environments. Furthermore, its mounting flexibility allows for quick integration into existing control panels.

Energy Efficiency and Durability

Operating at 24V DC, the BMXDDM16022 ensures efficient energy consumption. It offers reliable performance within a wide temperature range of 0°C to 60°C for operation and -25°C to 70°C for storage. The module is built to endure harsh industrial environments, with a relative humidity range of 10% to 95% (non-condensing).

Applications

The BMXDDM16022 is ideal for various industrial automation tasks. Some of the most common applications include:

Factory automation
Process control systems
Machine monitoring and diagnostics
Integration into control systems

Its ability to manage mixed I/O signals makes it a versatile choice for industries that require reliable and efficient automation solutions.

Conclusion

In conclusion, the Schneider BMXDDM16022 Discrete Mixed I/O Module stands out due to its flexibility, high-performance I/O capabilities, and ease of integration. Its reliable Modbus TCP/IP communication, compact design, and energy-efficient operation make it a strong choice for diverse industrial applications.
