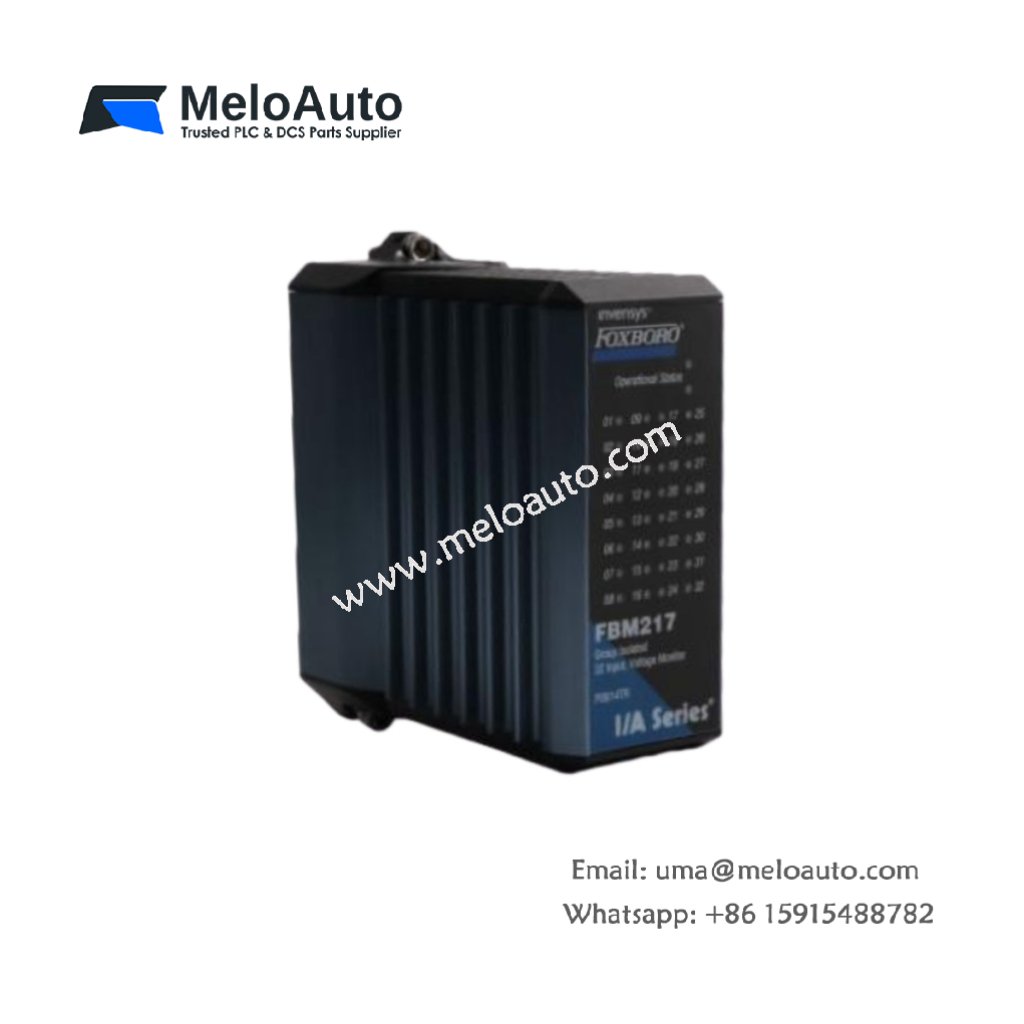

Foxboro FBM217 Discrete Input Module

The Foxboro FBM217 is a versatile discrete input module designed to seamlessly integrate with the Foxboro Evo Process Automation System. Offering 32 input channels, it supports a wide range of voltage levels for reliable signal acquisition. You can configure the module in either a single or redundant setup, enhancing the system’s reliability. Additionally, it features a fieldbus communication interface, ensuring efficient data exchange across devices.

Key Features

32 Discrete Input Channels: Handle multiple signals with ease, ideal for large-scale automation systems.
Wide Voltage Support: The module accommodates signals from 15 to 60 VDC, 120 VAC/125 VDC, and 240 VAC.
Redundancy Options: Choose from single or redundant configurations, improving system uptime and fault tolerance.
Fieldbus Communication: Enjoy a reliable communication interface for quick and efficient data transfer.
Visual Indicators: Built-in LEDs clearly display the module’s operational status and the state of each individual input.
Durable Design: With an extruded aluminum housing, the FBM217 is rugged and ideal for harsh industrial environments.
Efficient Maintenance: Replace or remove the module without affecting field device or communication connections, ensuring minimal downtime.

Technical Specifications

Specification	Details
Manufacturer	Foxboro
Part Number	FBM217
Product Type	Discrete Input Module
Number of Channels	32 discrete input channels
Supported Voltage Levels	15 to 60 VDC, 120 VAC/125 VDC, 240 VAC
Redundancy	Supports single or redundant configurations
Communication Interface	Fieldbus connection
Environmental Rating	Class G3 (harsh industrial environments)
Mounting Type	DIN rail or rack-mounted
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95% (non-condensing)
Module Weight	Approximately 284 g (10 oz)

Physical Specifications

Mounting:
The FBM217 module mounts on a DIN rail or a 19-inch rack, providing flexible installation options for various setups.
Dimensions:
It features a compact design, fitting into various enclosures while providing optimal protection for internal components.
Material:
The module’s extruded aluminum frame ensures durability, safeguarding its internal circuitry from harsh environments.
Termination Assemblies (TAs):
Available termination assemblies include options for high-voltage attenuation, optical isolation, and external power connections.

Applications

The Foxboro FBM217 excels in several industrial automation scenarios, including:

Process Automation: It ensures reliable signal acquisition in industries like oil & gas, chemical processing, and power generation.
Machine Control: The module interfaces with machinery to manage input signals, offering precise control for automation systems.
Building Automation: It supports systems like HVAC, lighting, and energy management, providing reliable field device integration.
