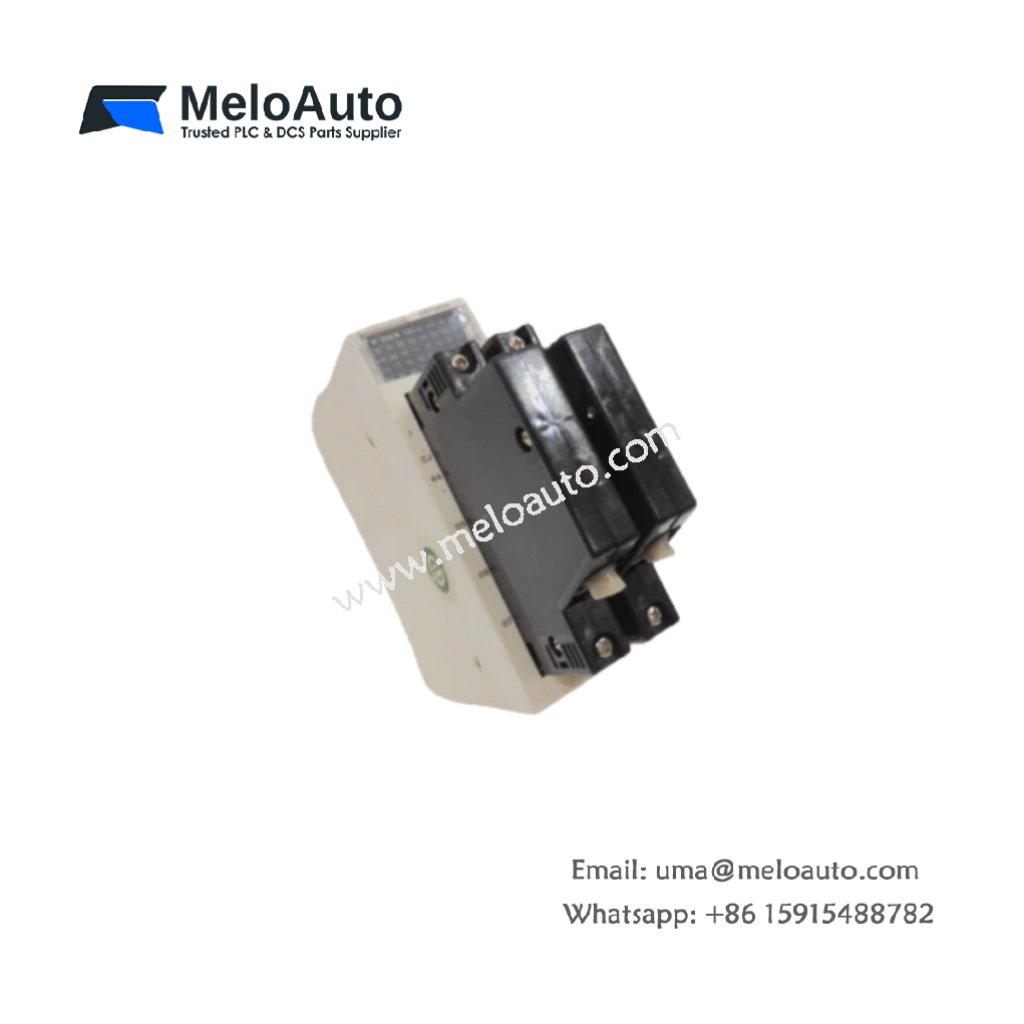

Schneider BMXART0814 Analog Input Module

Overview

The Schneider BMXART0814 is an advanced analog input module designed for use with the Modicon X80 series. It provides reliable, isolated low-level analog input for automation systems. With 8 inputs and a voltage range of ±40 mV, it offers precise measurements for various industrial applications. The module supports both positive and negative signals, making it highly versatile for different input configurations.

Key Features

High Precision: The Schneider supports a low-level input range of 40 mV (positive or negative), ensuring accurate readings for fine measurements.
8 Inputs: This module features 8 separate analog inputs, allowing users to monitor multiple analog signals simultaneously.
Isolated Input: The module provides electrical isolation, protecting the system from potential damage caused by ground loops or voltage surges.
Compact and Reliable: The BMXART0814 is compact, easy to integrate into systems, and offers long-lasting performance in industrial environments.
Efficient Integration: It integrates seamlessly into the Modicon X80 system, ensuring smooth communication between various devices and modules.

Technical Specifications of Schneider BMXART0814

Feature	Specification
Model	Schneider BMXART0814
Product Type	Analog Input Module
Product Line	Modicon X80
Part Number	BMXART0814
Number of Inputs	8
Input Range	±40 mV (positive or negative)
Input Type	Analog Isolated
Module Type	Low-Level Input Module
Isolation	Electrical Isolation
Operating Temperature Range	-20°C to 60°C
Storage Temperature Range	-40°C to 85°C
Weight	0.4 kg (0.88 lbs)
Dimensions (L x W x H)	124 mm x 120 mm x 60 mm
Mounting Type	DIN Rail
Standards Compliance	CE, UL, RoHS
Power Supply	24V DC

Applications

The Schneider BMXART0814 module is ideal for applications requiring precise analog measurements, such as temperature, pressure, or flow monitoring. It is commonly used in Modicon X80 systems for industries such as manufacturing, process control, and energy management. The electrical isolation feature ensures the system remains protected in environments with varying voltage levels.

Why Choose the Schneider BMXART0814?

With its high precision, electrical isolation, and easy integration into the Modicon X80 system, the Schneider BMXART0814 is an excellent choice for users seeking accurate and reliable analog input solutions. Its versatility and robust design make it ideal for a wide range of industrial applications, offering high value and reliability.
