Schneider BMXAMI0810 Input Module – High-Precision Analog Input for Modicon X80 Series

Overview of the BMXAMI0810 Input Module

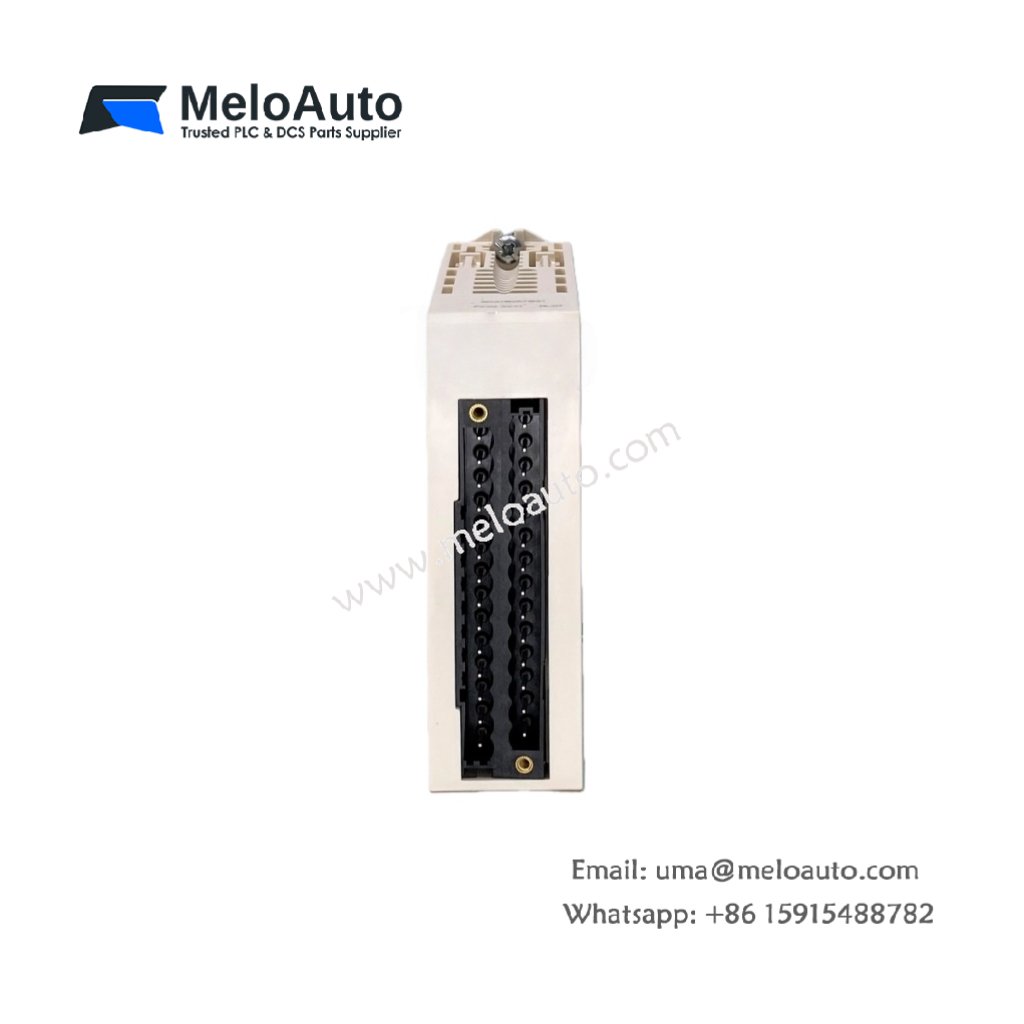

The Schneider Electric BMXAMI0810 is a versatile input module designed for seamless integration into the Modicon X80 series. It offers 8 analog input channels with a high resolution of 15 bits plus a sign, ensuring precise data conversion and reliable performance in industrial automation systems. Equipped with 16-bit analog-to-digital conversion, the module guarantees accuracy and efficient signal processing.

Key Features

• Manufacturer: Schneider Electric
• Product Type: Input Module
• Part Number: BMXAMI0810
• Product Line: Modicon X80
• Weight: 1.00 lbs (0.45 kg)
• Input Channels: 8 analog input channels
• Analog-to-Digital Conversion: 16-bit resolution
• Input Resolution: 15 bits + sign
• Input Impedance: 10 MOhm (voltage mode), 250 Ohm + 3.6…50 Ohm (current mode)
• Filter Type: First order digital filtering
• Nominal Read Cycle Time: 9 ms for 8 channels
• Power Consumption: 1.06 W
• Current Consumption: 150 mA
• Isolation Voltage: 1400 VDC
• Vibration Resistance: 3 gn
• Electrical Connections: 28 ways

The BMXAMI0810 input module supports 16-bit analog-to-digital conversion for superior signal clarity. It provides an impressive 15-bit resolution plus a sign, enhancing its ability to handle even the most precise input signals. In voltage mode, the input impedance reaches a high 10 MOhm, while in current mode, it adapts with a 250 Ohm impedance, protected by a 3.6…50 Ohm internal resistor.

Technical Specifications

Performance & Precision

The BMXAMI0810 ensures accurate input signal processing, featuring a high-resolution 15-bit input with a sign bit for enhanced precision. This enables it to handle intricate analog signals for applications requiring high data accuracy. The module operates with a fast 9 ms read cycle time for 8 channels, making it suitable for high-speed automation tasks.

Additionally, the BMXAMI0810 features first-order digital filtering, which helps reduce noise and ensures reliable signal interpretation. The module is designed to handle high input impedance in voltage mode, as well as adapt to current mode with a 250 Ohm impedance and internal protection. This makes the BMXAMI0810 ideal for a range of analog input applications.

Ideal Applications

The Schneider Electric BMXAMI0810 is perfectly suited for industrial applications that require accurate and efficient signal processing. It is commonly used in systems involving sensor data collection, process control, and automated manufacturing systems. This module is a reliable choice for handling high-precision analog signals in both voltage and current modes.

Manufacturer and Model Information

• Brand: Schneider Electric
• Model: BMXAMI0810
• Category: Input Module (Modicon X80 Series)

The BMXAMI0810 is an essential part of the Modicon X80 series, offering superior analog input capabilities for modern industrial control systems.
