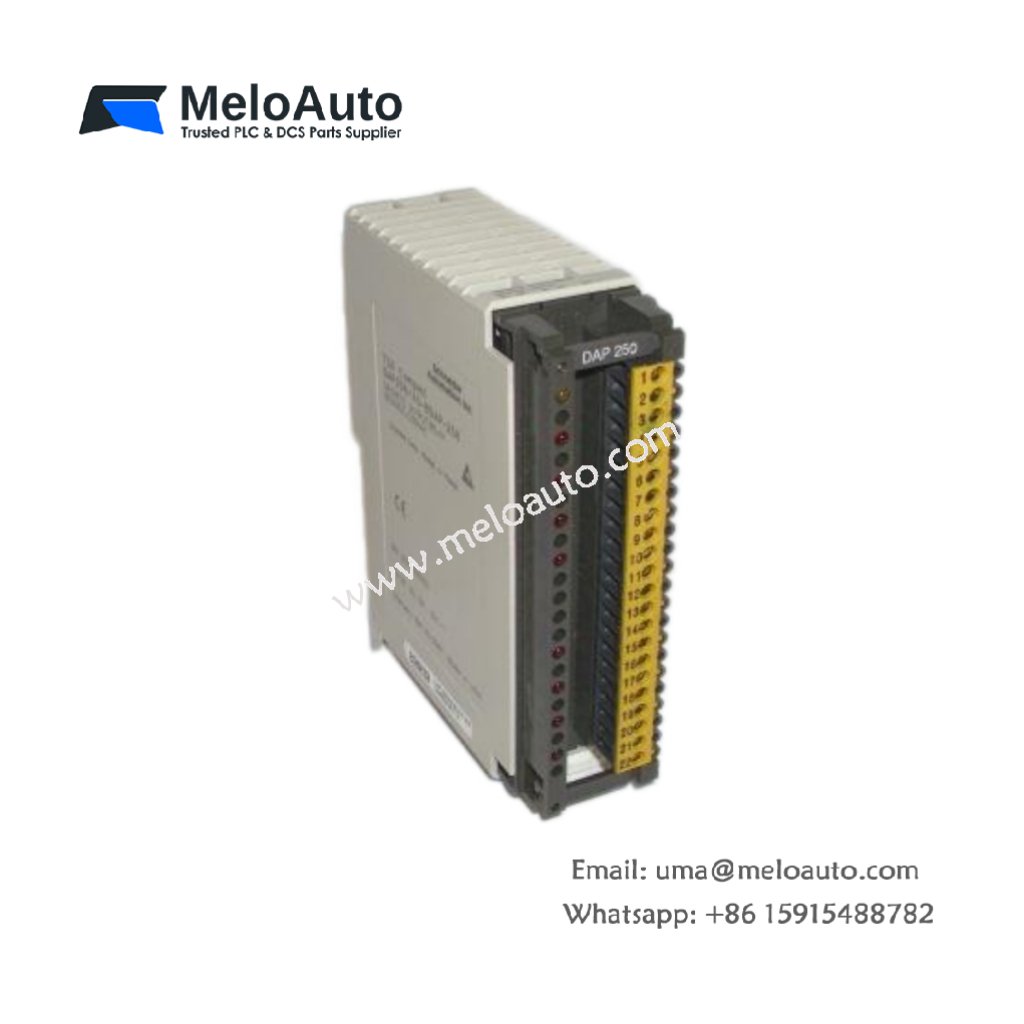

Schneider ASBDAP250C Modicon Momentum Discrete Combo Module

The ASBDAP250C combines digital inputs and outputs in a single compact unit. This combo module fits directly into the Momentum I/O system architecture. It provides sixteen input channels and sixteen output channels on one device. Consequently, you save valuable cabinet space and reduce wiring complexity.

You can use this module for mixed control applications with discrete signals. The ASBDAP250C accepts 24V DC sinking or sourcing input configurations. Its outputs feature built-in short-circuit protection for reliable operation. Therefore, this module delivers robust performance for factory automation tasks.

Input Specifications and Channel Details

The input section handles standard 24V DC signals from sensors and switches. The ASBDAP250C provides optical isolation between the field and internal logic. Each input channel includes an LED indicator for visual status confirmation. The module filters input noise to prevent false triggering.

Inputs operate with a typical response time of 1 millisecond. The ASBDAP250C accepts signals with a voltage range of 0 to 30V DC. It detects logic high at levels above 15V DC. Below is a complete breakdown of its technical characteristics.

Output Specifications and Load Handling

The output section uses solid-state transistor technology for fast switching. The ASBDAP250C delivers 0.5 amps per channel at 24V DC. Each output includes overcurrent and overtemperature protection automatically. The module also provides output status LEDs for each channel.

All outputs share a common return path for simplified wiring. The ASBDAP250C has a total output current limit of 4 amps. It switches loads in approximately 0.5 milliseconds for rapid response.

Interface and Field Wiring Connections

A removable terminal block accepts field wiring for inputs and outputs. The ASBDAP250C uses spring-clamp terminals for secure wire retention. Each terminal accepts wire sizes from 0.2 to 1.5 mm². The module connects to the Momentum bus via a standard 20-pin connector.

You can replace the module without disconnecting field wiring entirely. The ASBDAP250C features a removable cage-clamp terminal strip. Green LEDs indicate input status while yellow LEDs show output states. Therefore, troubleshooting becomes straightforward with visual feedback.

Operational Benefits for Control Applications

This combo module reduces component count in distributed I/O panels. The ASBDAP250C handles both input sensing and output actuation simultaneously. It integrates seamlessly with all Momentum processors and communication adapters. Engineers value this density for space-constrained machine control applications.

​
