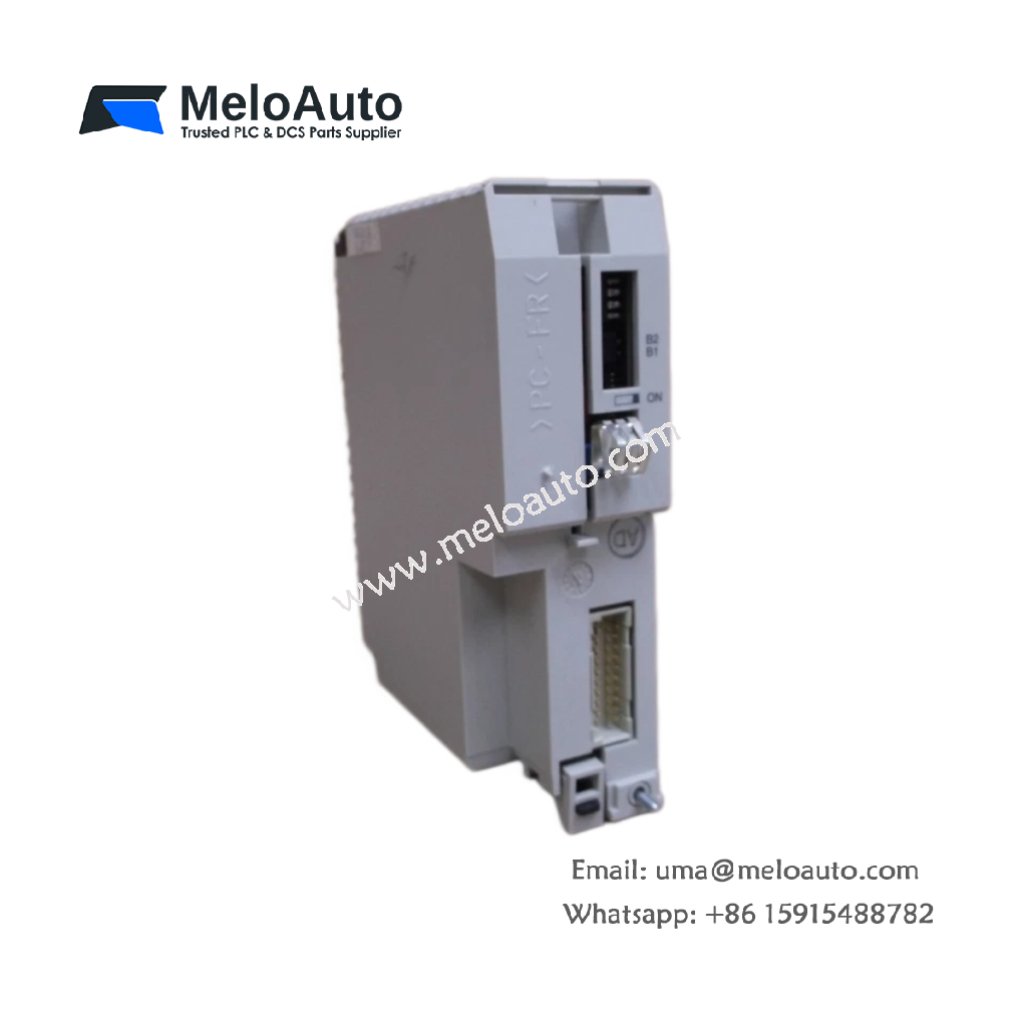

Schneider ASBADU214 Analog Input Module – Versatile RTD and Voltage Sensor Inputs

The Schneider ASBADU214 is a versatile analog input module in the Modicon TSX series, designed for high-precision voltage and temperature measurements. It supports four RTDs or up to eight two-pole voltage sensors, providing flexibility for a wide range of industrial applications. With its advanced specifications, the ASBADU214 ensures accurate signal processing for both temperature and voltage data in automation systems.

Key Features of the Schneider ASBADU214 Analog Input Module

The Schneider ASBADU214 offers advanced technical capabilities for reliable data acquisition in industrial settings:

• Module Type: Analog input module designed for high-precision measurements.
• Number of Inputs: Supports four RTDs or eight two-pole voltage sensors, allowing flexibility in measurement configurations.
• Voltage Measurement: Offers multiple voltage ranges, including:
  • Voltage (Unipolar): 0-0.5, 0-1, 0-5, 0-10 VDC.
• Input Impedance (Voltage): 1 Ω to maintain high signal integrity.
• Voltage Resolution: Achieves a resolution of ±0.003% range value, 15 bits + sign, ensuring precise measurements.
• Voltage Measurement Error: ±0.02% MFV, ±0.11 mV (5V, 10V) for minimal measurement error.
• Current Measurement: Supports current measurement with the following ranges:
  • 0-10 mA (0-0.5 V), 0-20 mA (0-1 V).
• Current Offset Options: Configurable for 2-10 mA (0.1-0.5 V) or 4-20 mA (0.2-1 V) for greater flexibility.
• Temperature Measurement (RTD): Measures temperature for Pt100 RTD sensors, with a range of -160°C to +160°C and a resolution of less than 0.02°C.
• Temperature Input Impedance: Greater than 1 MΩ, ensuring high-quality signal integrity.
• Weight: 1.00 lbs (0.45 kg), lightweight for easy installation and handling.
• Manufacturer: Schneider Electric
• Series: Modicon TSX

Applications of the Schneider ASBADU214 Analog Input Module

The Schneider ASBADU214 is designed for applications that require accurate and reliable voltage and temperature measurements. It is ideal for industrial automation systems that need to monitor temperature using RTDs and measure voltage levels with high precision. This module ensures seamless integration with Modicon TSX systems, enhancing the overall performance and accuracy of industrial processes.

Common use cases include energy management systems, manufacturing automation, and control systems that require multiple inputs for monitoring and measurement.

Why Choose the Schneider ASBADU214 Analog Input Module?

• Versatile Inputs: Accommodates both RTDs and voltage sensors for flexible applications.
• High-Resolution Measurements: Provides precise measurements with minimal error and high resolution.
• Current and Voltage Flexibility: Offers multiple input ranges for both current and voltage measurements.
• Precise Temperature Measurement: Supports Pt100 sensors for accurate temperature monitoring.
• Seamless Integration: Fully compatible with Modicon TSX systems for easy integration and reliable operation.

The Schneider ASBADU214 is a highly reliable and efficient solution for precise analog measurements in industrial automation.
