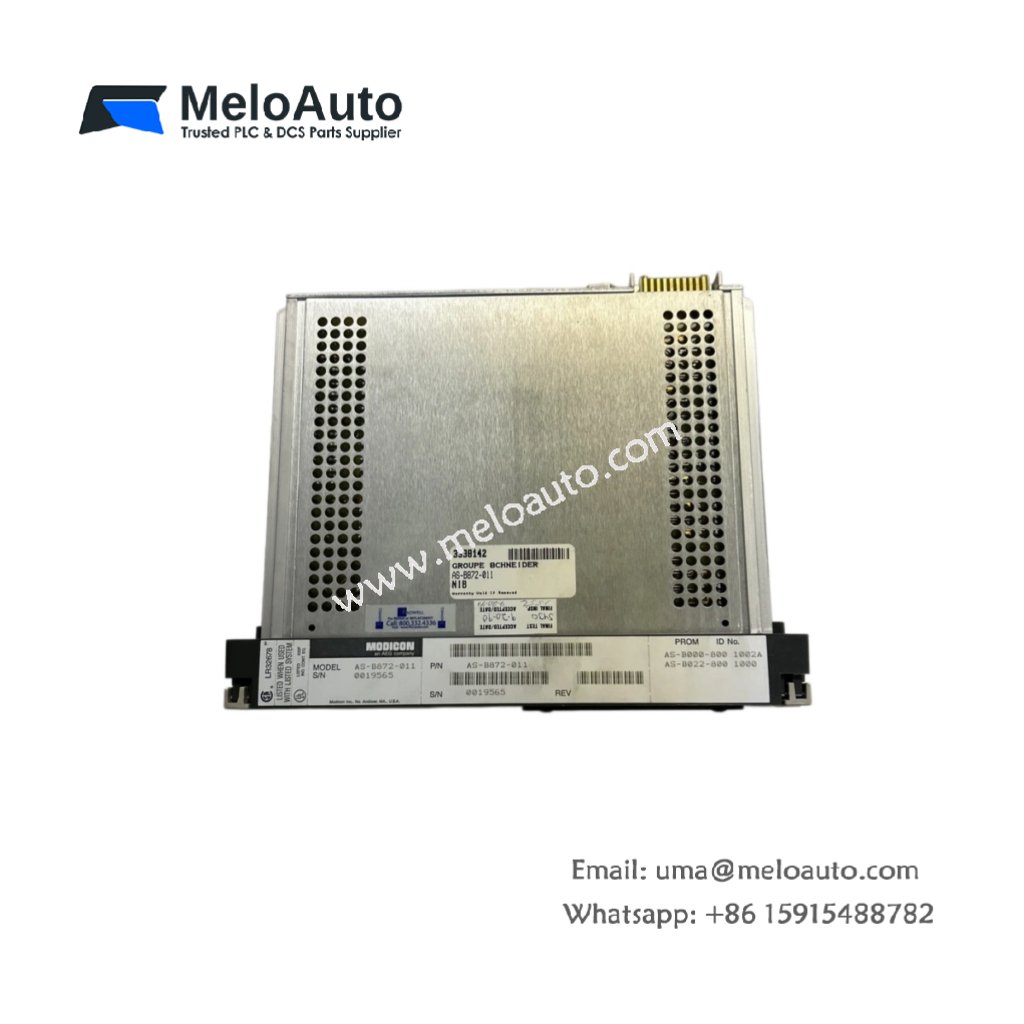

Schneider ASB872011 Voltage Analog Output Module

The Schneider ASB872011 Voltage Analog Output Module offers exceptional performance and flexibility in industrial automation applications. With its four output channels, this module enables precise control and efficient data processing for a variety of systems requiring accurate voltage outputs.

Key Features of the ASB872011 Voltage Analog Output Module

The Schneider ASB872011 module is designed to handle demanding tasks in industrial environments. It provides reliable voltage output control, ensuring smooth operation in critical automation systems.

Module Type: Voltage Analog Output Module
Manufacturer: Schneider Electric
Model: ASB872011
Product Line: ASB Series

Technical Specifications

The ASB872011 module comes with precise technical specifications, making it ideal for applications that require high-quality voltage outputs. The following table summarizes its key parameters:

Parameter	Details
Output Channels	4 channels
Voltage Output Range	0 to 10V DC
Output Resolution	16-bit
Output Accuracy	±0.1% of full scale
Communication Type	Modbus TCP/IP
Connection Type	Screw terminal
Mounting Type	DIN rail
Weight	0.5 kg (1.1 lbs)
Dimensions	120 mm x 90 mm x 55 mm
Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 70°C
Relative Humidity	10% to 95% without condensation for operation

Performance and Output Control

The ASB872011 module features four independent voltage output channels, each capable of delivering 0 to 10V DC. This makes it highly suitable for applications where precise analog voltage control is needed. Furthermore, with a 16-bit output resolution, it ensures high precision, meeting the demands of complex industrial systems. Its output accuracy is ±0.1% of full scale, ensuring reliable and accurate voltage regulation.

Installation and Mounting

The ASB872011 module is designed for easy installation. It supports DIN rail mounting, which simplifies integration into control panels. Its compact size (120 mm x 90 mm x 55 mm) and lightweight design (0.5 kg) make it ideal for environments with limited space, without sacrificing performance or functionality.

Connectivity and Communication

The ASB872011 module uses Modbus TCP/IP communication for fast and reliable data transfer. This connectivity ensures seamless integration into existing industrial networks and control systems, enabling efficient data exchange between devices and ensuring smooth system performance.

Energy Efficiency and Durability

Operating at a voltage range of 0 to 10V DC, the ASB872011 module is highly energy-efficient, making it suitable for continuous operation in industrial environments. It can withstand a wide range of temperatures, from 0°C to 60°C for operation and -25°C to 70°C for storage, ensuring reliable performance in challenging environments. The module also maintains stable performance in environments with relative humidity levels from 10% to 95% (non-condensing).

Applications

The ASB872011 module is perfect for a variety of industrial automation tasks, including:

Precision voltage control in manufacturing processes
Process monitoring and control
Machine and equipment monitoring
Integration into larger control systems

Its flexibility and high output accuracy make it suitable for industries that require precise voltage output for their automation and control processes.

Conclusion

The Schneider ASB872011 Voltage Analog Output Module combines high precision, reliable performance, and easy integration, making it an excellent choice for demanding industrial automation systems. Its robust technical specifications ensure that it meets the needs of a variety of applications requiring accurate and efficient voltage output control.
