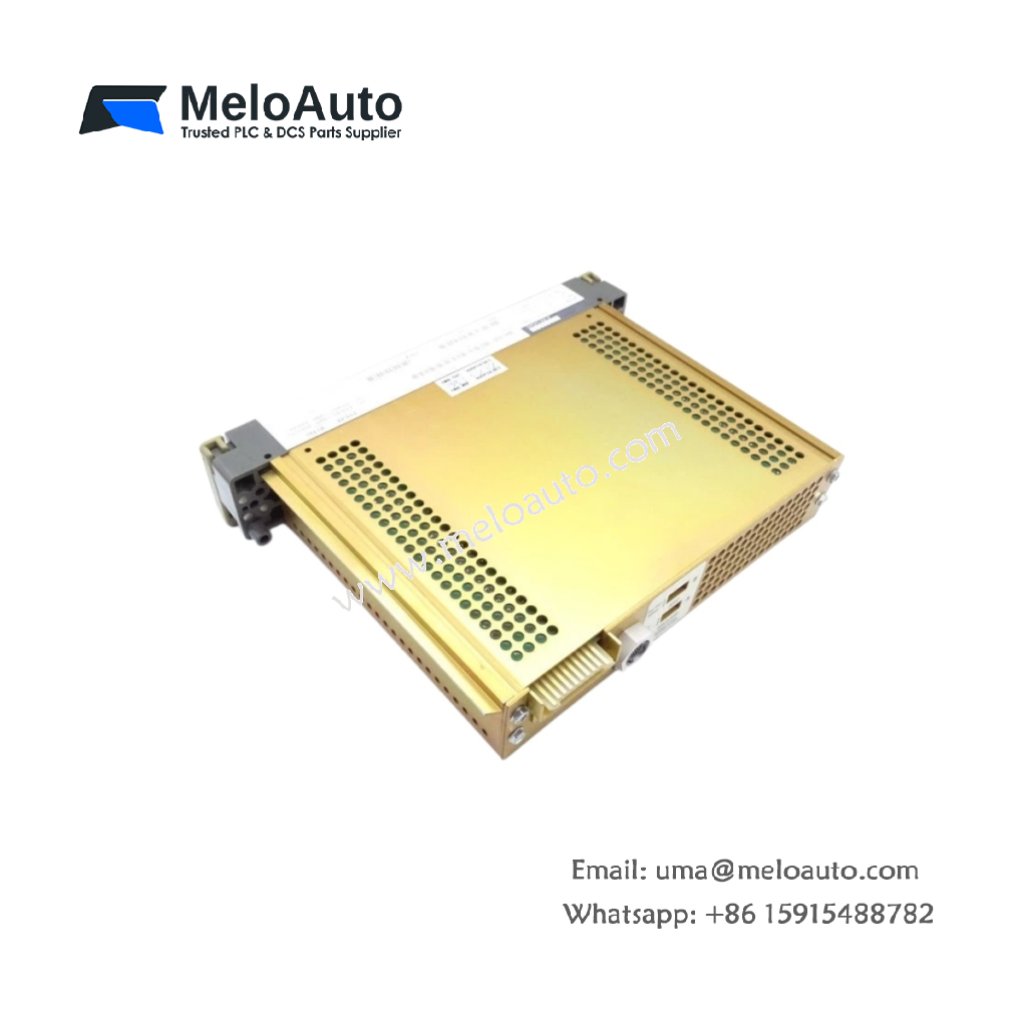

Schneider ASB872001 | Analog Output Module

The Schneider ASB872001 is a high-performance analog output module designed for reliable and efficient operation in industrial automation systems. This module provides precise analog output control for various applications, ensuring seamless integration with Schneider Electric’s automation platforms.

Key Features and Specifications of the Schneider ASB872001

Manufacturer: Schneider Electric
Model: ASB872001
Category: Analog Output Module
Product Line: Schneider Automation
Output Channels: 8 analog output channels
Output Type: 0–20 mA, 4–20 mA, ±10 V
Resolution: 12 bits per channel
Voltage Range: 0–20 mA, 4–20 mA, ±10 V
Mounting Type: Standard DIN rail
Dimensions: 144mm x 90mm x 62mm
Weight: 0.56 kg
Operating Temperature: -10°C to 60°C
Environmental Compliance: RoHS compliant

Technical Specifications

Feature	Specification
Model	ASB872001
Category	Analog Output Module
Output Channels	8 channels
Output Type	0–20 mA, 4–20 mA, ±10 V
Resolution	12 bits per channel
Voltage Range	0–20 mA, 4–20 mA, ±10 V
Mounting Type	Standard DIN rail
Dimensions (L x W x H)	144mm x 90mm x 62mm
Weight	0.56 kg
Operating Temperature	-10°C to 60°C
Environmental Compliance	RoHS compliant

Reliable and Precise Analog Output Control

The Schneider ASB872001 is engineered to provide precise analog output control, crucial for industrial automation systems. It features 8 output channels with 12-bit resolution for accurate and reliable performance. This module supports multiple output types including 0–20 mA, 4–20 mA, and ±10 V, making it versatile for various applications.

Compact and Durable Design

Measuring 144mm x 90mm x 62mm and weighing 0.56 kg, the ASB872001 is compact, yet powerful. The module can be easily mounted on a standard DIN rail, simplifying installation and integration into existing systems. Its robust design ensures long-lasting operation in demanding industrial environments.

Wide Operating Range

The Schneider ASB872001 operates within a temperature range of -10°C to 60°C, making it suitable for use in a wide variety of industrial environments. Whether in harsh or moderate conditions, it delivers consistent and reliable analog output.

Environmental Compliance

This module is RoHS compliant, ensuring that it meets the necessary environmental regulations for modern industrial systems. It reflects Schneider Electric’s commitment to sustainable manufacturing practices while maintaining high-quality performance.
