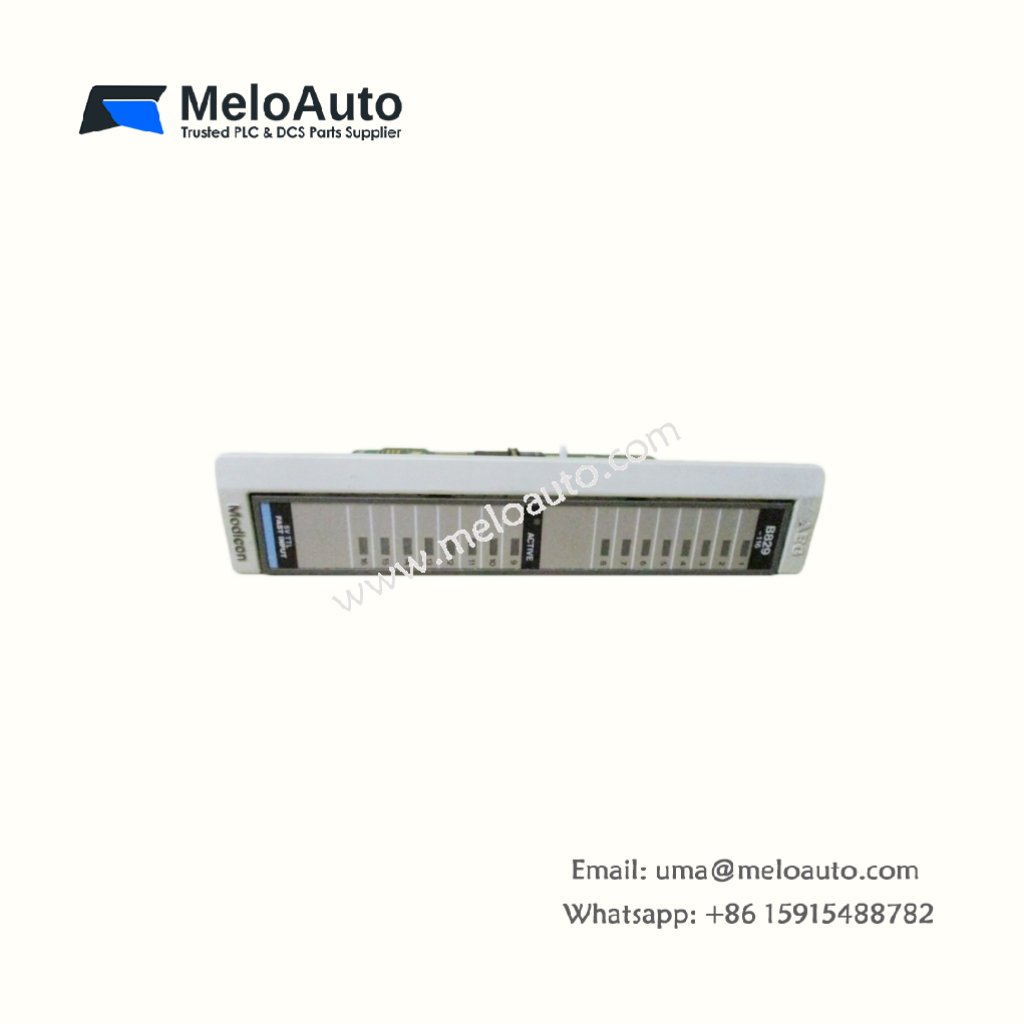

Schneider ASB829116 Fast Input Module

Why This Fast Input Module Suits High-Speed Applications

This fast input module captures brief signals from sensors and encoders. You get a responsive Schneider ASB829116 for AEG Modicon systems. It detects pulses as short as one millisecond in duration. Therefore, your controller can count rapid events without missing a single transition.

Technical Specifications and Physical Details

The Schneider ASB829116 features sixteen discrete input channels on one board. Each channel accepts 24 V DC signals from standard industrial sensors. The module fits into a dedicated slot within the AEG Modicon rack. Its compact housing measures approximately 250 mm in width. This unit weighs around 0.35 kg for straightforward installation. The device stores no configuration energy internally. Instead, the main processor holds all input filtering parameters. Consequently, you lose no settings during a power cycle or module replacement.

Below is the detailed breakdown of the hardware specifications.

Installation and Wiring Notes

This module connects directly to proximity switches or optical encoders. You must use shielded cables for runs longer than ten meters. The ASB829116 features screw terminals for each input channel. Therefore, field wiring remains secure and easy to troubleshoot. Always verify the sensor power supply before connecting any wires. A reverse polarity condition will not damage this module. However, it will simply read no signal until you correct the wiring.
