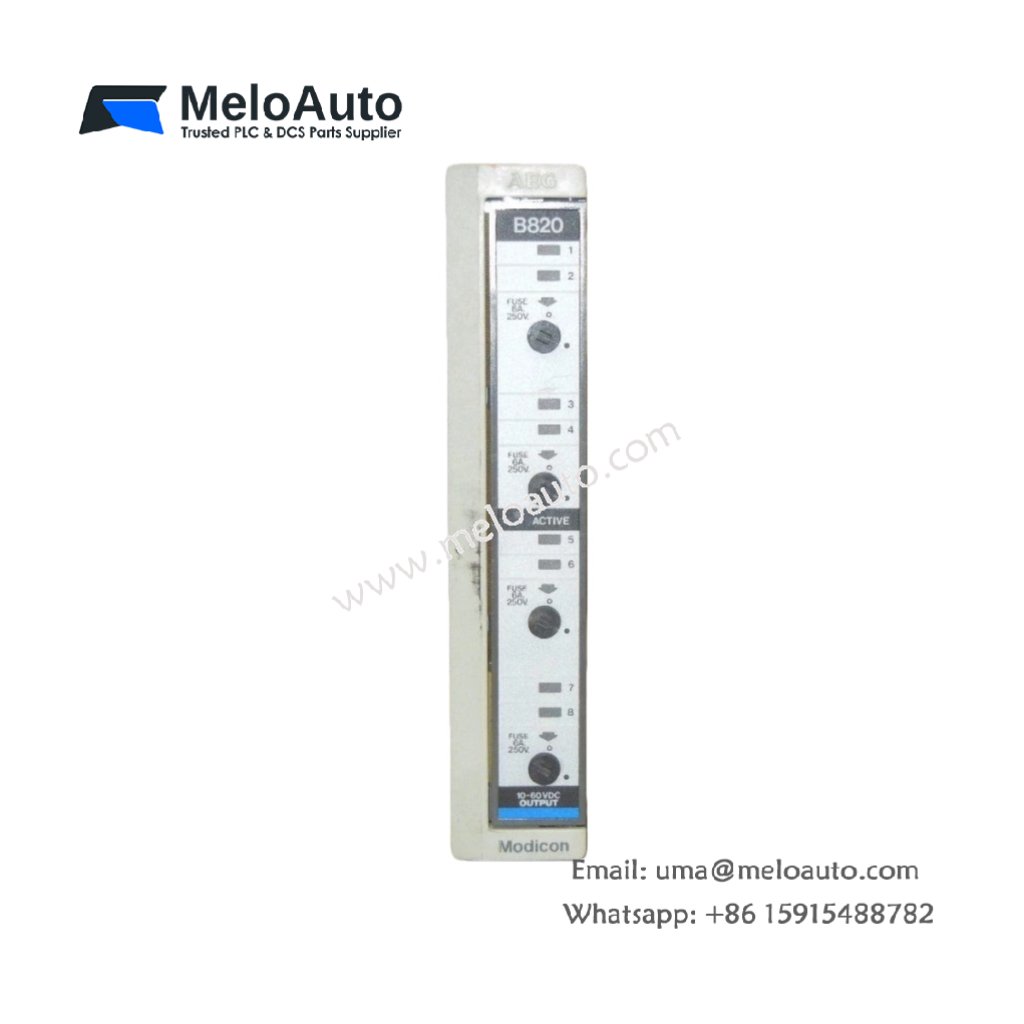

Schneider ASB820008 – 8-Output True High Output Module

The Schneider ASB820008 is an advanced output module designed for industrial automation applications. It provides 8 outputs and operates within a 10-60 VDC range. This module is part of the highly reliable 984 Series, making it ideal for integration into various Schneider systems. Its True High Output capabilities ensure stable and efficient performance in demanding environments.

Key Features of the Schneider ASB820008**

8 True High Outputs: The Schneider ASB820008 offers 8 outputs, delivering flexibility and performance for a wide range of industrial applications.
Voltage Range: It works within a 10-60 VDC voltage range, offering stable operation for diverse system setups.
High Output Capacity: The module is capable of handling high output signals, ensuring seamless integration into industrial control systems.
984 Series Compatibility: Designed for the 984 Series, it integrates easily with other Schneider automation products.
Compact Design: With a compact form factor, the Schneider ASB820008 is easy to install in limited spaces.

Technical Specifications of Schneider ASB820008**

Specification	Details
Manufacturer	Schneider Electric
Product Type	Output Module
Part Number	ASB820008
Product Line	984 Series
Number of Outputs	8 Outputs
Voltage Range	10-60 VDC
Output Type	True High Output
Current Rating per Output	0.5 A
Max. Current per Module	4 A
Isolation between Channels	1500 Vrms
Protection Class	IP20
Response Time	< 10 ms
Operating Temperature	-20°C to +60°C
Dimensions	130 mm x 100 mm x 55 mm
Weight	0.45 kg
Mounting	DIN Rail Mountable

Product Description

The Schneider ASB820008 output module operates efficiently within a 10-60 VDC voltage range. It supports 8 outputs, making it versatile for different industrial control applications. This module is part of the 984 Series, designed to deliver high output capabilities and seamless performance in demanding environments.

With its ability to handle up to 0.5 A per output and a maximum current per module of 4 A, the Schneider ASB820008 ensures robust operation. It integrates easily into automation setups, offering DIN rail mounting for quick installation. Additionally, the module’s IP20 protection guarantees durability in less exposed environments.

The module’s fast response time of less than 10 ms makes it ideal for applications that require quick switching. Its compact size (130 mm x 100 mm x 55 mm) and low weight (0.45 kg) ensure easy integration into tight spaces.

Applications

The Schneider ASB820008 is suitable for various industrial and automation applications, including:

Factory Automation: Ideal for controlling machines, sensors, and actuators in manufacturing processes.
Building Automation: Can be used to control HVAC systems, lighting systems, and more.
Energy Management: Perfect for managing energy distribution systems and devices.
Process Control: Reliable in controlling output devices for chemical and food processing industries.
