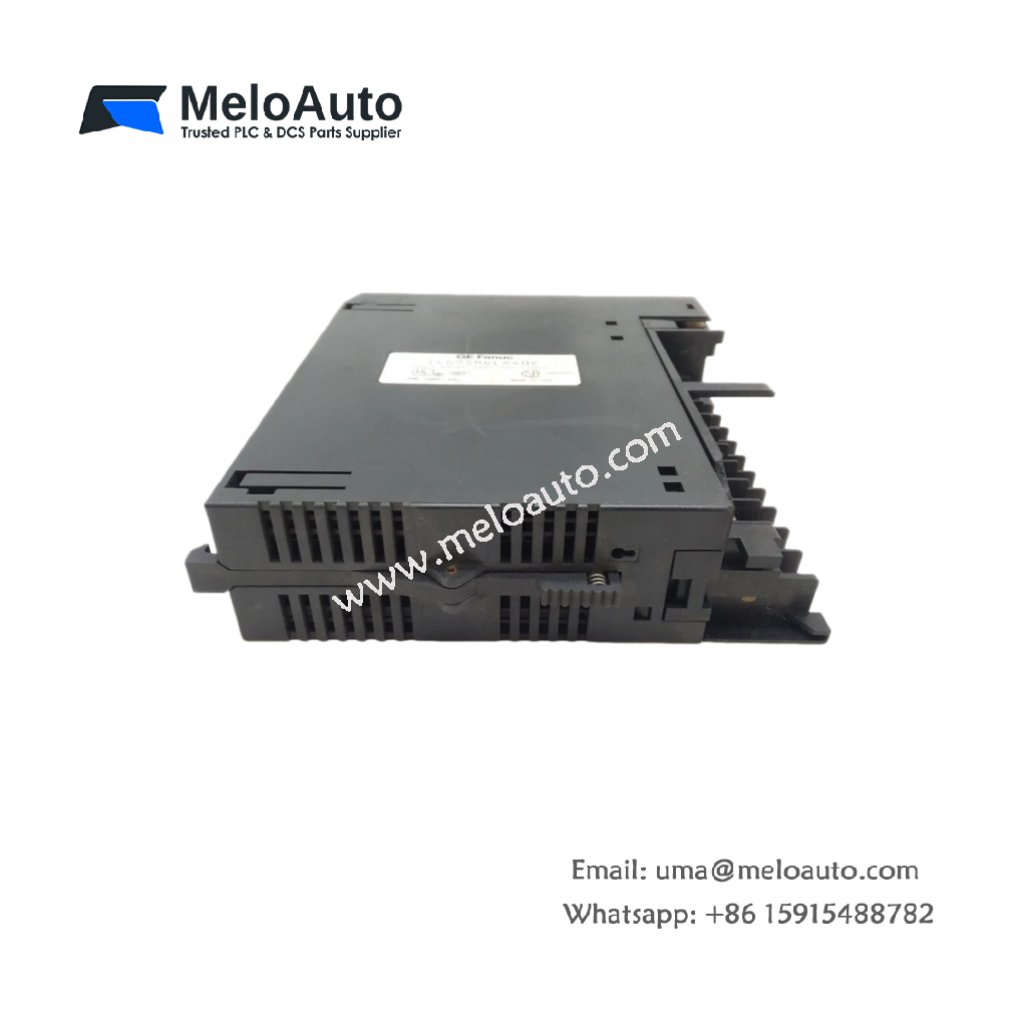

GE Fanuc IC693MDL640 Discrete Input Module – 16 Inputs, 24 VDC, Positive Logic

The GE Fanuc IC693MDL640 is a highly reliable discrete input module designed to integrate seamlessly into industrial control systems. Manufactured by GE Fanuc Emerson and part of the Series 90-30, this module efficiently connects programmable logic controllers (PLCs) to external devices like sensors. With 16 inputs and a positive logic configuration, it ensures stable and accurate data handling, making it ideal for a range of industrial applications.

Operating at a rated voltage of 24 VDC, the IC693MDL640 accommodates input voltages from 0 to 30 VDC. Each input provides 1500 Volts RMS isolation between the field and logic sides, ensuring strong protection against electrical interference. Additionally, the module boasts a 7 ms response time, allowing for fast processing of input signals and ensuring the reliability of time-sensitive operations.

Key Features of the GE Fanuc IC693MDL640

• 16 Inputs: Supports 16 discrete inputs for seamless interfacing with external devices.
• Positive Logic: The module operates with positive logic, ensuring stable and predictable input handling.
• Wide Input Voltage Range: It supports input voltages from 0 to 30 VDC, making it versatile for different industrial needs.
• High Isolation: With 1500 Volts RMS isolation, it effectively protects the control system from electrical noise and surges.
• Power Consumption: Consumes between 5 and 120 milliamps, depending on the operating conditions.
• Fast Response: The 7 ms typical response time ensures prompt input processing, crucial for time-sensitive systems.
• LED Indicators: Each of the 16 inputs has an LED indicator, providing real-time status feedback.
• Operating Conditions: Designed to operate within a temperature range of 0 to 60°C (32°F to 140°F) and a humidity range of 5% to 95% (non-condensing).

Technical Specifications

Applications of the GE Fanuc IC693MDL640

The GE Fanuc IC693MDL640 is commonly used in various industrial applications, such as:

• Sensor Interfacing: Connects sensors and input devices to PLCs, enabling real-time system monitoring.
• PLC Integration: Essential for integrating external devices with GE Fanuc PLCs and other compatible control systems.
• Automation Control: Handles input signals efficiently, making it ideal for automation and process control systems.
• Industrial Equipment: Well-suited for use with manufacturing equipment, robotics, and other industrial machinery.

Benefits of the GE Fanuc IC693MDL640

• Efficient Input Handling: The 16 inputs and positive logic configuration ensure smooth and reliable communication between the PLC and external devices.
• High Electrical Isolation: With 1500 Volts RMS isolation, this module offers excellent protection against electrical noise and surges.
• Fast Response Time: The 7 ms response time ensures prompt processing of input signals, improving system efficiency.
• Durable and Reliable: The module operates effectively within a wide range of temperatures and humidity, making it ideal for demanding environments.
• Real-time Monitoring: Each input features an LED indicator that provides clear, real-time feedback for easier system management.

Origin, Dimensions, and Weight

• Country of Origin: Manufactured by GE Fanuc Emerson, USA.
• Dimensions: 2.5 cm x 10.8 cm x 12.7 cm
• Weight: 0.75 lbs (0.34 kg)
