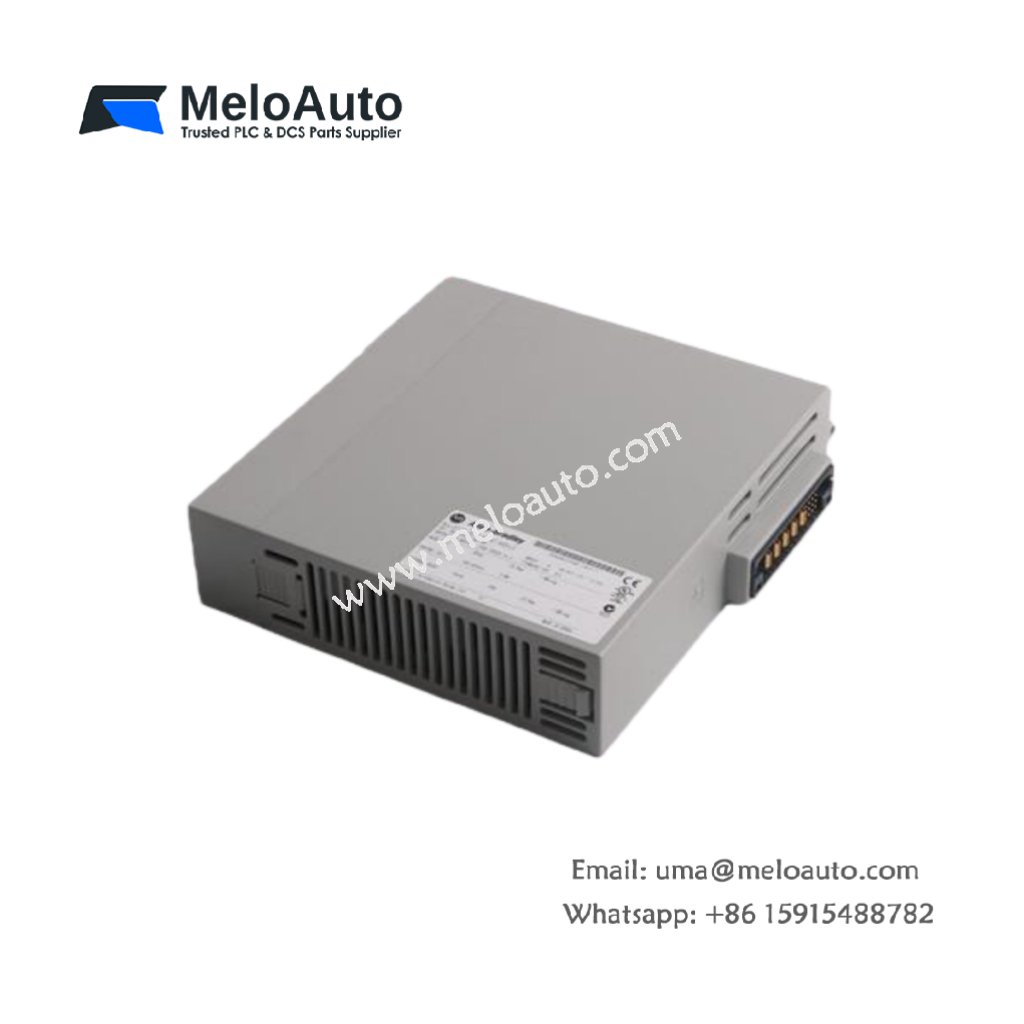

Schneider AS-B805-016 Input Module

Overview

The Schneider AS-B805-016 is an input module designed for industrial automation systems in the Modicon series. It operates efficiently with an input voltage of 115 VAC and accommodates a wide voltage range, from 80 to 130 VAC. This module ensures reliable performance even in environments where voltage surges are common.

Key Features

Input Voltage: The AS-B805-016 is rated for 115 VAC but works well within the range of 80–130 VAC.
Max Input Voltage: It supports a maximum continuous voltage of 130 VAC and can endure input surges of up to 220 VAC for one cycle.
Number of Inputs: This module offers 16 inputs, organized into two groups of 8 for ease of integration.
ON and OFF Conditions:
- Z = 0Ω: OFF for input voltages of 0–35 VAC.
- Z > 40kΩ: OFF for voltages up to 130 VAC.
- ON: The module requires input voltages between 80 and 130 VAC with impedance less than 1kΩ.
- OFF: The OFF conditions depend on impedance:
Wetting Current: The module requires a 6 mA wetting current at 115 VAC.
Response Time:
- OFF to ON: The response time is typically 6 ms (4 ms in most cases).
- ON to OFF: The module typically responds within 18 ms (11 ms under standard conditions).

Technical Specifications

Specification	Value
Model	AS-B805-016
Manufacturer	Schneider Electric
Product Line	Modicon
Input Voltage	115 VAC
Operating Voltage	80–130 VAC / 47–63 Hz
Max Input Voltage	130 VAC (continuous)
Max Input Surge	220 VAC (1 cycle)
Number of Inputs	16
Inputs per Group	8
Wetting Current	6 mA @ 115 VAC
Response Time (OFF-ON)	6 ms (4 ms typical)
Response Time (ON-OFF)	18 ms (11 ms typical)
ON Conditions	80–130 VAC (Z < 1kΩ)
OFF Conditions	0–35 VAC (Z = 0Ω), 0–130 VAC (Z > 40kΩ)
Weight	1.36 kg

Applications

The Schneider AS-B805-016 input module is ideal for:

Industrial Automation Systems: Ensures reliable and accurate data processing for various control systems.
Power Control: Handles fluctuating voltages and ensures steady operation across dynamic environments.
Process Control: Its fast response time and specific input management capabilities make it perfect for process automation.
Monitoring & Safety: With its surge protection and precise input conditions, it ensures stable performance even in environments prone to electrical transients.

Conclusion

The Schneider AS-B805-016 input module provides a reliable, high-performance solution for industrial applications. Its broad voltage compatibility, surge resistance, and precise input control make it a versatile choice for Modicon series automation systems. Whether you need fast response times or stable operation in harsh environments, this module delivers the quality and flexibility required for demanding industrial tasks.
