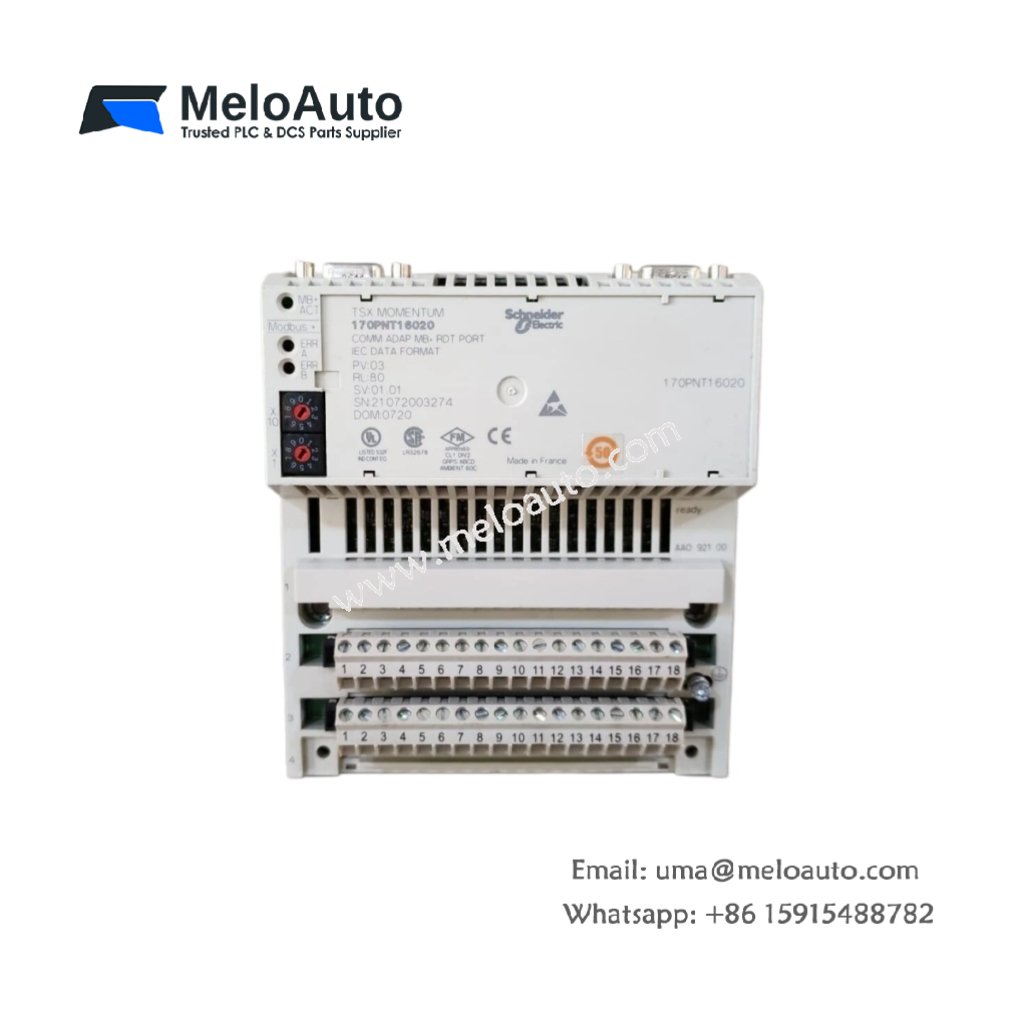

Schneider 170PNT16020 | Modbus Plus Adapter

The Schneider 170PNT16020 provides high-speed network connectivity for Momentum I/O devices. This communication adapter supports the Modbus Plus protocol for peer-to-peer industrial networking. It connects Momentum I/O drops to a Modbus Plus network backbone. Weighing only 0.32 kg, the Schneider 170PNT16020 mounts directly onto Momentum I/O bases. Its dimensions measure 125 mm x 90 mm x 55 mm.

Communication Specifications and Network Capabilities

The Schneider 170PNT16020 delivers 1 Mbit/s transmission rates for reliable data exchange. This adapter supports up to 64 nodes on a single Modbus Plus network segment. It handles global data broadcasts for efficient peer-to-peer communication. Moreover, the Schneider 170PNT16020 includes built-in termination resistors for simplified network setup. Consequently, you do not need external terminators for proper network operation.

Diagnostic Features and Energy Storage

The Schneider 170PNT16020 features LED indicators for network status, communication activity, and module health. This adapter contains no internal battery for complete maintenance-free operation. The Schneider 170PNT16020 draws 250 mA from the 5 V DC backplane power supply. It also consumes 50 mA from the external 24 V DC field power supply. Therefore, you never need to replace batteries or worry about configuration loss.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider 170PNT16020
Product Category	Momentum Modbus Plus Communication Adapter
Communication Protocol	Modbus Plus
Transmission Speed	1 Mbit/s
Maximum Nodes per Segment	64
Maximum Segment Length	450 meters (1,500 feet)
Maximum Total Network Length	1,800 meters (with repeaters)
Cable Type	Belden 9463 or equivalent (RG59)
Connector Type	9-pin SUB-D female
Built-in Termination	Yes (switch-selectable)
Global Data Support	Yes (peer-to-peer broadcast)
Peer Cop Support	Yes (I/O data exchange)
LED Indicators	4 (PWR, STA, COM, FLT)
Current Consumption (5V DC)	250 mA from backplane
Current Consumption (24V DC)	50 mA external field supply
Power Dissipation	1.5 W maximum
Energy Storage	No battery (flash memory only)
Number of Components	1 main PCB + 1 SUB-D port + 2 terminal blocks + housing
Net Weight	0.32 kg (320 grams)
Gross Weight (packaged)	440 grams
Dimensions (H x W x D)	125 mm x 90 mm x 55 mm
Wire Size (Terminal)	AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA, ATEX Zone 2

Installation and Application Details

The Schneider 170PNT16020 snaps directly onto any Momentum I/O base. Align the adapter with the base connector and press firmly until secure. Set the node address using the rotary switches on the front panel. Configure the built-in termination resistor based on your network position. The Schneider 170PNT16020 requires external 24 V DC power for its communication circuits. Use Belden 9463 cable for all Modbus Plus network connections. This adapter suits distributed I/O applications, remote monitoring, and factory floor networking. Thus, the Schneider 170PNT16020 provides reliable Modbus Plus connectivity for Momentum systems.
