Schneider 140XTS10215 | CableFast System Cable

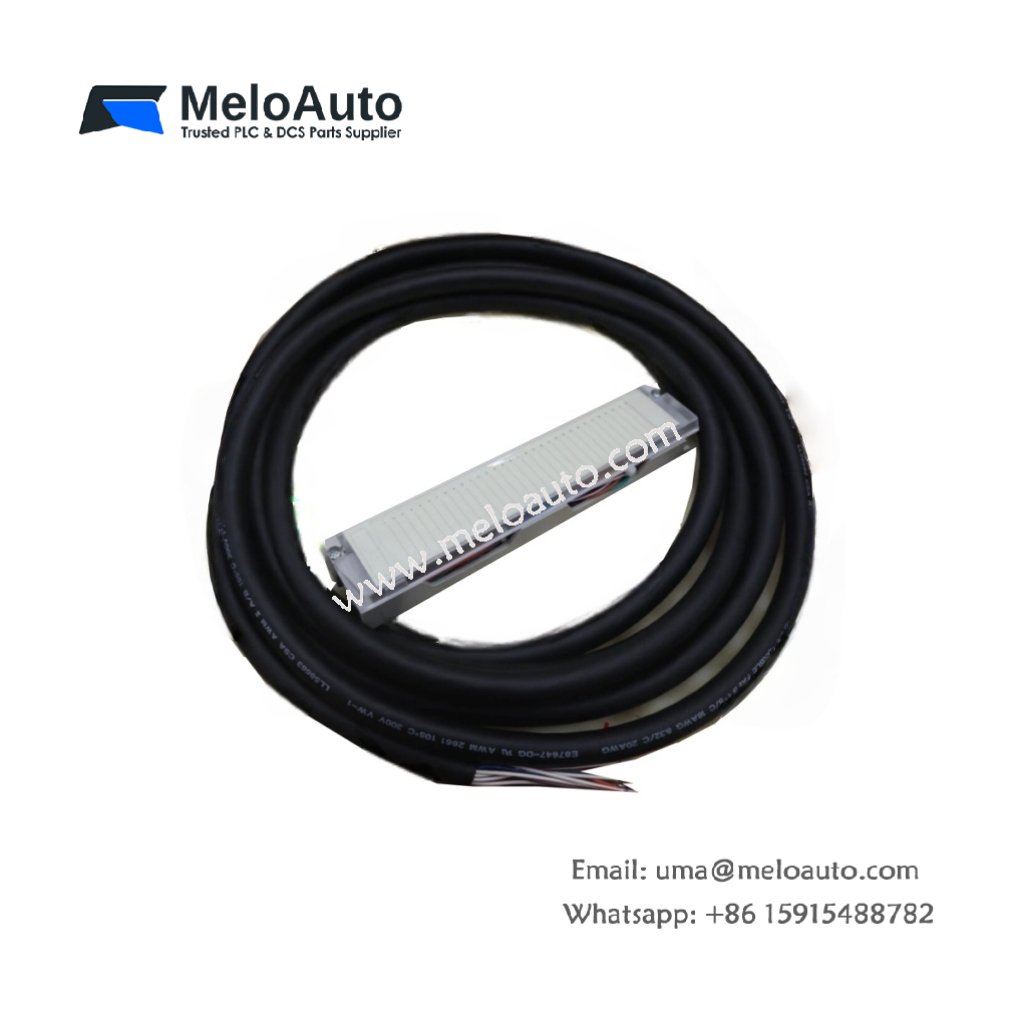

The Schneider 140XTS10215 connects Quantum I/O modules to field devices quickly. This CableFast system cable eliminates the need for individual point-to-point wiring. You can use it with Telefast quick-connection terminal blocks. The cable measures precisely 2.15 meters for flexible panel layouts.

Physical Specifications and Cable Design

Parameter	Specification
Brand	Schneider Electric
Model	140XTS10215
Product Type	CableFast System Cable
Cable Length	2.15 meters (7.05 feet)
Connector Type 1	20-pin female (module end)
Connector Type 2	20-pin male (Telefast end)
Connector Quantity	2 (one per end)
Cable Diameter	9.5 mm
Weight	0.48 kg (1.06 lbs)
Conductor Count	20 (18 AWG)
Shielding Type	Foil plus drain wire
Voltage Rating	300 V
Temperature Range	-20°C to +80°C

The Schneider 140XTS10215 carries all 20 signals from the I/O module to field terminals. This CableFast system cable weighs 0.48 kg for easy handling during installation. Each connector features a keyed housing to prevent incorrect insertion. You will find a locking latch on both ends for secure attachment.

Electrical Characteristics and Energy Storage

This CableFast system cable stores no electrical energy whatsoever. It contains no capacitors, batteries, or active electronic components. The cable simply transmits signals between the module and Telefast block. A foil shield surrounds all 20 conductors for noise rejection. An integrated drain wire provides a simple grounding connection point.

Connector Specifications

The 20-pin connectors use gold-plated contacts for reliable signal transfer. Each contact rates at 1 amp continuous current capacity. You will find numbered positions on both connector housings for easy pin identification. The module-end connector includes a strain relief boot to prevent cable damage. The Telefast-end connector uses screw-locking mechanisms for vibration resistance.

Installation and Mechanical Durability

You can bend this cable without damaging internal conductors. The minimum bending radius is 75 mm for single bend applications. Each connector latches with an audible click when fully seated. The Schneider 140XTS10215 withstands industrial vibration levels per IEC 60068-2-6. A flexible PVC jacket resists oils, coolants, and mild chemicals.

System Integration Benefits

Transitioning to this cable reduces panel wiring time significantly. You can connect a 20-point I/O module in under one minute. The cable eliminates wiring errors from manual point-to-point terminations. Use the Schneider 140XTS10215 with any Quantum discrete I/O module having a 20-pin connector. For best results, pair this cable with a Telefast ABE-7 or ABE-9 terminal block.
