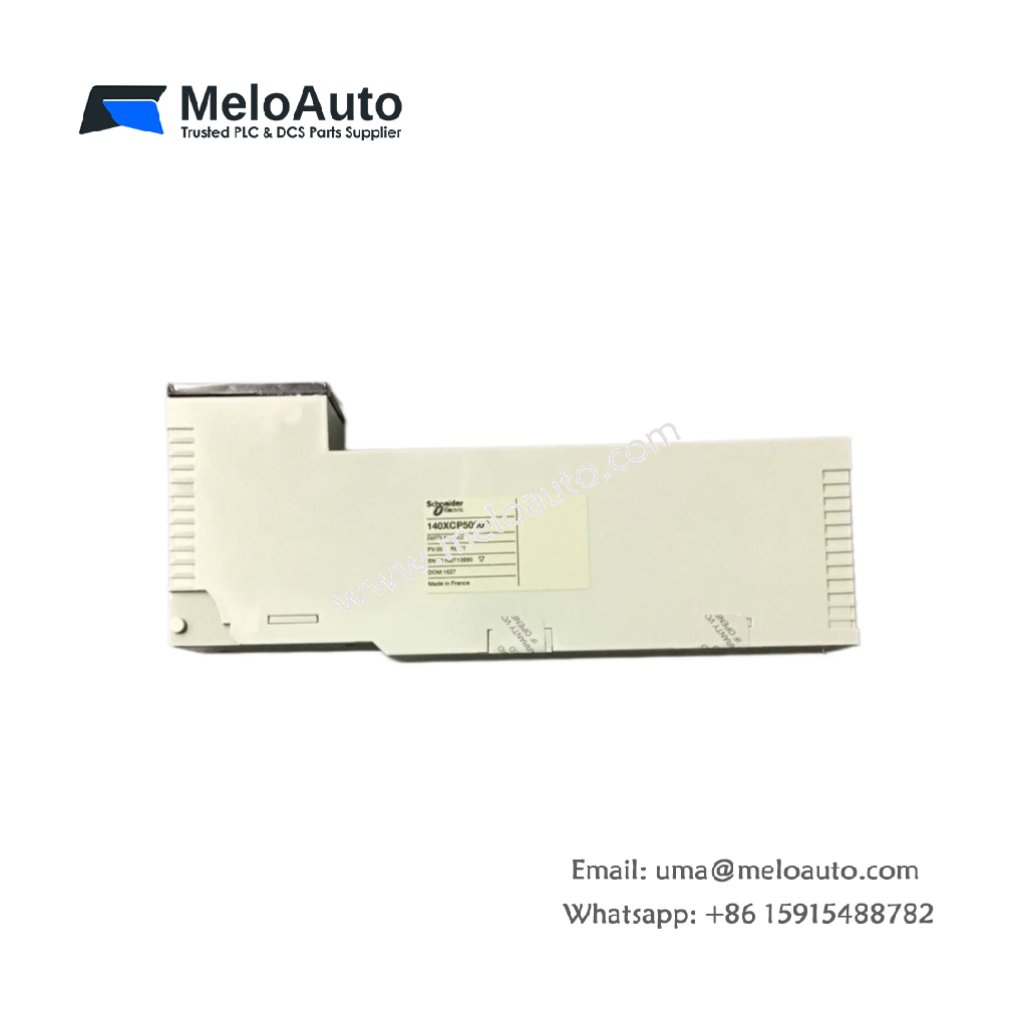

Schneider 140XCP50000 Dummy Module

The 140XCP50000 fills empty slots in Schneider Quantum PLC racks. This dummy module maintains proper airflow across all system components. Its rectangular frame measures 166 millimeters in width. The module height reaches 140 millimeters exactly. Depth stays at 115 millimeters. You will find this unit weighs approximately 0.48 kilograms. Therefore, installation requires sliding the unit into any empty rack slot. This module has no external connectors or wiring terminals.

Physical Layout and Design

The front panel consists of a solid plastic faceplate with no openings. Three molded handles allow easy insertion and removal from the rack. The module occupies a single slot position in the backplane. Four plastic guides align the unit with the rack rails. You can install this module in any orientation without restrictions. The faceplate includes no LEDs, switches, or status indicators.

Technical Specifications

Parameter	Specification
Module Width	166 mm
Module Height	140 mm
Module Depth	115 mm
Unit Weight	0.48 kg
Slot Occupancy	1 (Quantum rack)
External Connectors	None
Component Total	8 discrete parts (passive)
Energy Storage	None (0 µF)
Power Consumption	0 watts
Backplane Load	0 mA at all voltages
Material	ABS plastic front, metal backing
Operating Temperature	-20°C to +70°C

Internal Construction

The 140XCP50000 contains exactly 8 discrete passive components inside. No capacitors or resistors exist on this simple PCB. A metal backing plate provides electromagnetic shielding for adjacent modules. The unit contains no active electronic circuits whatsoever. Four plastic alignment pins secure the module in the rack slot. The faceplate carries a printed label identifying the part number.

Operational Function

This dummy module serves no electrical function in the PLC system. It merely occupies empty slot positions in the rack. Moreover, the unit prevents dust accumulation inside unused slots. You can install this module to maintain proper cooling channeling. The unit does not communicate with the backplane at any time. Its presence does not affect scan times or memory usage. Consequently, you achieve improved airflow and temperature regulation across the rack. Schneider designed this filler for Quantum series racks. Its solid construction resists vibration and mechanical shock.

In summary, the 140XCP50000 provides empty slot coverage. Use this module to maintain system cleanliness and airflow. It ensures proper cooling for neighboring I/O cards. Order this dummy module for your Quantum rack configuration.
