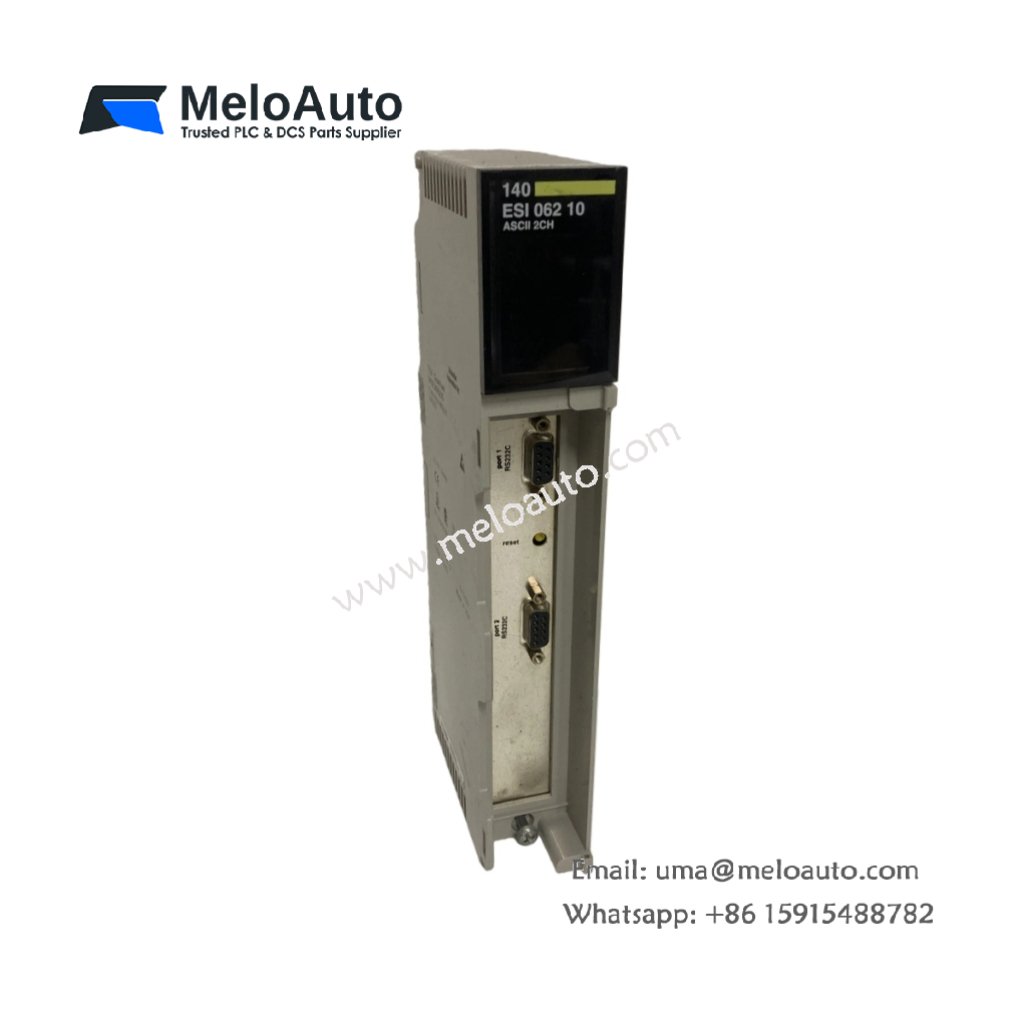

Schneider 140ESI06210 Serial Link Module for Modicon Quantum

The Schneider 140ESI06210 serial link module plays a crucial role in facilitating communication within Modicon Quantum systems. Designed for seamless integration, it ensures reliable data transmission and smooth operation in complex industrial automation networks. This module enhances system performance by enabling efficient data flow between devices and offering compatibility with Quantum CPUs.

Key Features

The Schneider 140ESI06210 includes several key features that make it an essential component in industrial communication:

• Dual RS-232C Ports: Equipped with two non-isolated RS-232C ports, this module supports reliable data transfer over long distances.
• Fast Data Transmission: Operating at a transmission rate of 19.2 kbit/s, the module ensures quick and consistent data exchange between devices.
• Extended Cable Length: It supports cable lengths up to 20 meters, providing flexibility in system configuration.
• High Message Capacity: The 140ESI06210 handles up to 255 messages, allowing the system to manage complex communication tasks effortlessly.
• Message Nesting: With the ability to handle up to 8 levels of message nesting, it can manage intricate data flows in multi-layered communications.

Technical Specifications

Here is a detailed overview of the Schneider 140ESI06210 serial link module’s technical specifications:

Applications and Use Cases

The Schneider 140ESI06210 module is designed to support demanding applications that require robust and reliable communication. It excels in Modicon Quantum systems where fast, long-distance communication is essential. This module is particularly useful in manufacturing automation, process control, and energy management systems.

Moreover, the module can efficiently handle high data traffic, allowing it to support complex control systems. Its ability to manage 255 messages and 8 levels of nesting makes it ideal for complex industrial applications where seamless communication is crucial.

Installation and Integration

Integrating the Schneider 140ESI06210 module is straightforward. It features a rack-mountable design, making it easy to install in control panels with limited space. Additionally, the module’s simple addressing requirements (12 input words and 12 output words) allow for quick integration with other Modicon Quantum components.

Furthermore, its maximum cable length of 20 meters provides flexibility when configuring systems. Whether you’re working with smaller or larger installations, this module adapts to various system designs, ensuring reliable data communication across your automation network.
